ABB 2CPX032652R9999 Enclosures & Electrical Infra - IP54
Part Number: 2CPX032652R9999
Quick Summary
ABB 2CPX032652R9999 residential incomer cabinet provides reliable main protection for low- to mid-voltage electrical systems. Installers often face delays from unassembled components, inconsistent grounding, or space constraints; this pre-assembled cabinet addresses those challenges with a ready-to-install design. Certified to EN 61439-1, CE-marked, and RoHS compliant, it also delivers IP54 protection within a grounded (Class I) enclosure for safer operation. Built from powder-coated steel in RAL 7035, it combines durability with serviceability, and its 480 DIN units plus a double-door layout support scalable distribution in commercial and industrial environments. This minimizes procurement complexity while enabling faster commissioning and easier ongoing maintenance, especially in tight control rooms or retrofit projects.
Product Information
Extended Description

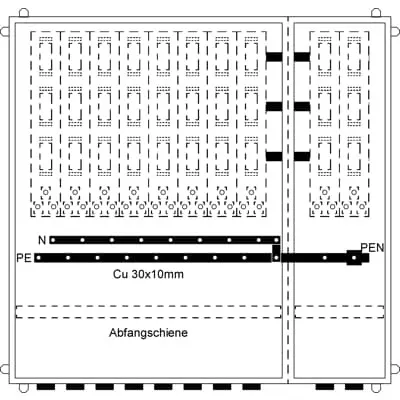

2CPX032652R9999 ABB: Residential incomer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 500 A, Rated current of the assembly of switchgear and controlgear InA 500 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 1250 x 1300 x 350, Earthing system TN-C-S, -pole, Grid unit 8 GU, Overall height 4, panel width 5, Space units 480
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
500 A
Model Number
eHZ
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
4
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar
Enclosure Type
Residential incomer cabinet
Enclosure Type of Height
4
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
480
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
1300 mm
Product Net Height
1250 mm
Product Net Depth / Length
350 mm
Section Width
5
Product Net Weight
93.131 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
96.9 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature → Business Impact → Application: Fully assembled residential incomer cabinet from the TwinLine series ships ready for internal use, reducing on-site assembly time and field coordination. This delivers predictable lead times and lowers installation labor costs for system integrators and electrical contractors, particularly during new builds or retrofits in manufacturing facilities. Feature → Business Impact → Application: Rated maximum 415 V and 500 A with a robust bus bar lower-connection space ensures safe, scalable distribution; operators gain improved fault clearance, reduced heat build-up, and easier future expansion for growing loads in data centers or commercial campuses. Feature → Business Impact → Application: Grounded Class I enclosure with TN-C-S earthing and IP54 protection provides dependable safety margins and compliance with industry standards; project teams can meet regulatory requirements while minimizing retrofit risk in critical power paths. Feature → Business Impact → Application: Powder-coated steel housing in light grey (RAL 7035) delivers corrosion resistance and low maintenance, extending service life in indoor plants or controlled environments, lowering total cost of ownership over time. Feature → Business Impact → Application: 480 DIN place units and 4 panel widths offer flexible layout and compatibility with standard switchgear modules; engineers can optimize space, simplify upgrades, and ensure consistent enclosure dimensions across sites. Feature → Business Impact → Application: Double door access and surface mounting simplify installation, servicing, and cable routing; this improves accessibility for routine inspections and reduces downtime during maintenance windows.
Get a Quick Quote for a ABB 2CPX032652R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032652R9999?
Enquire Now
FAQs
This cabinet is designed for main service entry in commercial, industrial, and large residential installations. It supports up to 415 V and 500 A, uses a TN-C-S grounding scheme, and is IP54 rated with a powder-coated steel enclosure, making it ideal for controlled indoor environments and retrofit projects where space and installation speed matter.
Key specs include maximum operating voltage of 415 V, rated current of 500 A, model reference eHZ, 480 DIN place units, dimensions 1250 x 1300 x 350 mm, IP54 protection, and class I grounding. It is EN 61439-1 compliant, CE marked, and RoHS compliant, with a double-door, surface-mounted enclosure.
The enclosure is surface-mounted with a double-door design for easy access. It accommodates 480 DIN units across 4 panel widths, and its built-in bus bar lower connection space simplifies wiring and future expansions, allowing you to optimize layouts in control rooms or switchgear rooms without major structural changes.
Key certifications include EN 61439-1 for switchgear assemblies, EU CE conformity, RoHS compliance with the stated dates, REACH declarations, WEEE categorization, and SCIP registration. These ensure safety, environmental responsibility, and regulatory alignment for EU-based projects and global deployments.
The pre-assembled design reduces on-site labor and coordination time, shortening project schedules. Durable powder-coated steel minimizes corrosion-related maintenance, while generous DIN space and modular bus bars support future expansion without costly replacements, resulting in lower lifecycle costs and improved uptime for critical power paths.
