ABB 2CPX032653R9999 Residential Incomer Cabinet - IP54
Part Number: 2CPX032653R9999
Quick Summary
ABB 2CPX032653R9999 Residential Incomer Cabinet secures mains entry for industrial facilities. This solution addresses space constraints, maintenance downtime, and the challenge of sourcing compliant enclosures that fit tight footprints. It carries CE conformity, IP54 protection, and Class I grounding to support safe operation in controlled environments. The powder-coated steel enclosure with a 1250 x 1300 x 350 mm footprint and RAL 7035 finish simplifies installation, while EN 61439-1 compliance provides a clear path to regulatory alignment. With ready-made access, 4 panel widths, and compatibility with ABB TwinLine accessories, you gain predictable lifecycle performance and a streamlined procurement process for new builds or refurbishments.
Product Information
Extended Description

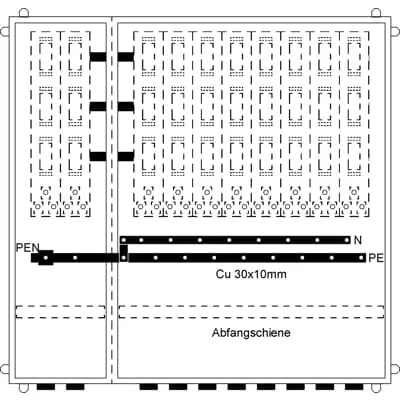

2CPX032653R9999 ABB: Residential incomer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 500 A, Rated current of the assembly of switchgear and controlgear InA 500 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 1250 x 1300 x 350, Earthing system TN-C-S, -pole, Grid unit 8 GU, Overall height 4, panel width 5, Space units 480
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
500 A
Model Number
eHZ
Number of Meter Cabinets
0
Number of Panel Widths
4
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar
Enclosure Type
Residential incomer cabinet
Enclosure Type of Height
4
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
480
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Product Net Width
1300 mm
Product Net Height
1250 mm
Product Net Depth / Length
350 mm
Section Width
5
Product Net Weight
93.131 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
96.9 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: Powder-coated steel housing in RAL 7035 delivers durable, corrosion-resistant protection in factory environments. Business Impact: Reduces maintenance costs and downtime while preserving enclosure aesthetics over the lifecycle. Application: Ideal for indoor industrial mains infeed and meter cabinet sections that require long-term reliability. Feature: IP54 protection and Class I grounding provide reliable ingress protection and a secure earth connection. Business Impact: Minimizes dust ingress and ensures safe operation under routine washdowns or dusty environments, lowering risk; simplifies compliance reporting. Application: Suitable for controlled industrial spaces and electrical rooms where robust protection is essential. Feature: High current capability with rated 500 A and InA 500 A; busbar-ready lower connection space. Business Impact: Supports large switchgear assemblies with fewer components and reduced installation time. Application: Main incomer feeds and distribution layouts in manufacturing lines and commercial facilities. Feature: EN 61439-1 compliance and dual-door access with surface mounting design. Business Impact: Speeds up project approvals and commissioning, while enabling straightforward retrofits and service access. Application: Projects demanding standardized enclosures and easy maintenance access. Feature: Large DIN unit capacity (480 GU) and modular 4 panel widths. Business Impact: Maximizes usable space for controls and meters, enabling scalable growth without new housings. Application: Utility rooms, data centers, and industrial plants requiring flexible panel planning. Feature: RoHS, REACH, WEEE, and SCIP compliance documented at component level. Business Impact: Reduces regulatory risk and supports sustainability reporting. Application: Global deployments with strict supplier compliance requirements.
Get a Quick Quote for a ABB 2CPX032653R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032653R9999?
Enquire Now
FAQs
Plan for surface mounting on a rigid, level base to support a 93+ kg device. The cabinet features a 1250 Ă— 1300 Ă— 350 mm footprint with a double-door design and TN-C-S earthing. Ensure adjacent space for door swing, access to the lower connection space with bus bars, and compatibility with ABB TwinLine accessories for a complete solution.
Yes, the cabinet is designed to EN 61439-1 compliant for meter cabinets and switchgear assemblies. It also carries CE conformity documentation, RoHS and REACH declarations, and WEEE/SCIP registrations, providing a regulator-ready enclosure suitable for industrial mains infeed projects.
It supports rated current of 500 A with InA 500 A for the assembly of switchgear and controlgear, plus a lower connection space with bus bars. The 4 panel widths and 480 DIN unit capacity enable efficient distribution layouts, reducing the need for multiple smaller enclosures in high-load applications.
IP54 provides protection against dust ingress and limited water exposure, while Class I grounding ensures a reliable earth connection. Together they improve safety and reliability in indoor industrial environments, helping to meet regulatory and safety requirements during operation and maintenance.
The powder-coated steel enclosure (RAL 7035) resists corrosion, extending service life with minimal upkeep. Ready access to the interior, a double-door design, and compatibility with existing ABB accessories minimize downtime during inspections or upgrades, delivering lower lifecycle costs and easier future expansions.
