ABB 2CPX032725R9999 Measurement Cabinet - IP31
Part Number: 2CPX032725R9999
Quick Summary
2CPX032725R9999 ABB measurement cabinet enables reliable metering and transformer control in electrical substations and industrial plants. Engineers often face space constraints, complex pre-wiring, and the challenge of keeping projects compliant with evolving standards. This cabinet adheres to EN 61439-1/2, provides IP31 protection, and uses isolated Class II construction to simplify safety approvals while protecting personnel. As a pre-assembled, powder-coated enclosure ready for metering exchange plates, it reduces on-site labor, improves consistency, and lowers lifecycle costs for utilities and manufacturing facilities. Its 5-pole configuration, 324 DIN place units, Cu busbars 12x5 mm, and pre-wired pathways support quick integration with existing switchgear, enabling seamless upgrades.
Product Information
Extended Description

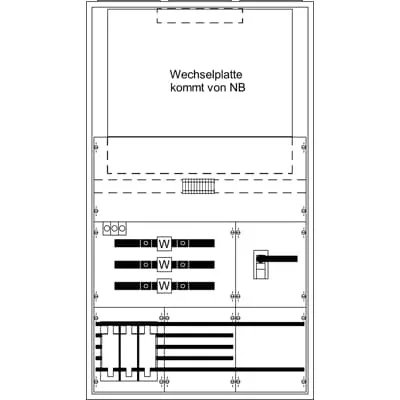

2CPX032725R9999 ABB: Measurement and metering transformer cabinet, series A, fully assembled cabinet, Expansion option: Lateral, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, double door, door hinge right and left, dimensions in mm (H x W x D): 1400 x 800 x 215, not pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, net side compartment, meter space: with busbar, Meter replacement plate metering transformer conversion board size 1/2, 2 or 3 (KF421, KF414, KF 423), Pre-wired from current and voltage pfad up to test terminal X1, voltage path Fuse base element D01/3-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 12 x 5 mm, Connection N+PE (M8), Note: Incomer cabinet EK220 recommended, busbar terminal to be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Configuration Type
pre-assembled for installation of metering exchange plate
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
5
Mounting Type
Surface mounted/partially recessed mounted
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Accessories Available
Yes
DIN Place Units
324
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP31
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
3
Product Net Width
800 mm
Product Net Height
1400 mm
Product Net Depth / Length
215 mm
Section Width
3
Product Net Weight
53.623 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
55.768 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction mounting plate for current transformer | Mounting instruction A-Schrank
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS448
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Pre-assembled, powder-coated measurement cabinet built from sheet steel with EN 61439-1/2 compliance. Business impact: shorter installation time, traceable safety documentation, and lower commissioning risk. Application: ideal for metering transformer cabinets in utilities, factories, and switchgear rooms. Feature: IP31 protection with isolated Class II construction enhances operator safety and reduces insulation fault exposure. Business impact: improved fault tolerance and lower risk of accidental contact, helping meet regulatory safety requirements. Application: indoor installations where robust protection and straightforward compliance are essential. Feature: 5-pole configuration with Cu busbars 12x5 mm and 324 DIN unit capacity ensures clean, scalable wiring. Business impact: simplified current and voltage path organization and space utilization savings. Application: metering and distribution panels with room for future expansion and meter replacement plates KF421, KF414, KF423. Feature: Pre-wired current and voltage paths up to test terminal X1 and readiness for metering exchange plates. Business impact: faster upgrades, reduced field termination errors, and predictable performance. Application: metering upgrades in existing substations or new builds where timing matters. Feature: Colour, durability, and maintenance advantages with RAL 9016 powder coating and robust steel/plastic housing. Business impact: reduced repainting, longer life in indoor environments, and easier serviceability. Application: interior electrical rooms and installations requiring long-term reliability.
Get a Quick Quote for a ABB 2CPX032725R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032725R9999?
Enquire Now
FAQs
The ABB 2CPX032725R9999 Measurement Cabinet is a purpose-built, pre-assembled enclosure for metering transformer installations within switchgear rooms and utility substations. It combines a powder-coated steel housing with IP31 protection and Class II isolation to simplify safety approvals, while providing ready-to-wire space for metering exchange plates and busbars. This enables faster commissioning, predictable performance, and scalable metering configurations for utilities and industrial facilities.
This cabinet complies with EN 61439-1/2 for distribution board assemblies, features IP31 protection, and uses isolated Class II construction. It carries RoHS and REACH declarations, a CE conformity statement, and is designed for indoor use with a powder-coated finish in RAL 9016. Compliance at the cabinet level supports regulatory and safety requirements for industrial and utility deployments.
Pre-wiring to the test terminal X1 streamlines field wiring by delivering ready current and voltage pathways up to the terminal, reducing termination time and wiring errors. This translates to shorter project timelines, lower labor costs, and greater reliability when upgrading metering capabilities or integrating meter exchange plates KF421, KF414, KF423 into existing switchgear with Cu busbars.
Yes. The cabinet is designed for metering exchange plate integration and supports meter replacement configurations KF421, KF414, KF423. It provides a pre-wired framework and busbar arrangement (Cu 12x5 mm, 5-pole) to accommodate these exchange plates, enabling modular metering upgrades while maintaining consistency with existing switchgear and meeting EN 61439-2 requirements.
Key advantages include reduced on-site labor due to pre-assembled construction, faster commissioning with pre-wired current and voltage paths, and safer operation through Class II insulation and IP31 protection. The powder-coated steel enclosure minimizes maintenance and repainting, while the 324 DIN unit capacity and 1400x800x215 mm footprint support scalable metering upgrades, lowering total cost of ownership over the cabinet’s lifecycle.
