ABB 2CPX032778R9999 Metering Cabinet System - IP31
Part Number: 2CPX032778R9999
Quick Summary
ABB 2CPX032778R9999 measurement cabinet enables ready-to-install metering for industrial switchgear rooms. On-site wiring complexity and misconnections often delay projects and raise safety concerns, especially when integrating metering modules into new or upgraded panels. This enclosure delivers EN 61439-1/2 compliance, IP31 protection, and Class II isolation to help mitigate risk while streamlining installation. With a powder-coated finish in RAL 9016 and a pre-wired metering module, it supports faster commissioning, lower field labor costs, and reliable performance in indoor environments, making it a practical choice for utilities and industrial facilities upgrading their metering capabilities.
Product Information
Extended Description

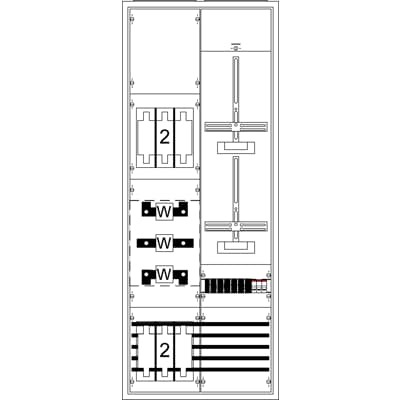

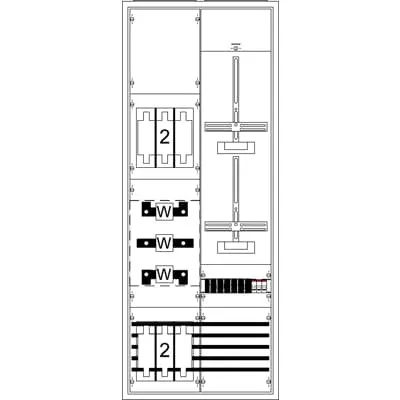

2CPX032778R9999 ABB: Measurement and metering transformer cabinet, series A, fully assembled cabinet, with Metering cross, Expansion option: Lateral, for the internal use, class of protection II (double insulated), degree of protection IP31, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, Powder-coated, in RAL 9016, enclosure out of Sheet steel / Plastic, single-leaf door, dimensions in mm (H x W x D): 1400 x 550 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of SG spaces 1, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad out of support insulators with CT rail 160 x 30 x 10 mm, parting point after the current transformer Switch disconnector 250 A / 4-pole, primary wiring L1-L3, N 120 qmm, PE 95 qmm, Connection N+PE (M12), Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
5
Mounting Type
Surface mounted/partially recessed mounted
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Accessories Available
Yes
DIN Place Units
216
RAL Number
RAL 9016 - Traffic White
Color
Traffic white
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP31
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
24
Product Net Width
550 mm
Product Net Height
1400 mm
Product Net Depth / Length
215 mm
Section Width
2
Product Net Weight
48.474 kg
Built-In Depth (t2)
215 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
50.413 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ComfortLine Cabinet
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4202
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Standards
DIN EN 61439-2
Feature pre-wired metering module → Business Impact reduces field wiring, speeds commissioning, and minimizes wiring errors → Application metering integration in transformer cabinets and switchgear rooms. Feature EN 61439-1/2 compliance → Business Impact strengthens regulatory alignment, safety, and long-term reliability → Application utilities and industrial plants seeking robust panel standards. Feature IP31 with Class II isolation → Business Impact enhances internal protection and operator safety in indoor environments → Application suitable for dry, indoor transformer and metering housings. Feature powder-coated steel with RAL 9016 finish → Business Impact improves durability, corrosion resistance, and aesthetic integration in plant corridors → Application outdoor-adjacent indoor spaces where appearance and longevity matter. Feature copper busbars and TN-S earthing system → Business Impact provides dependable current distribution and proven fault protection → Application high-current metering and distribution panels. Feature large DIN place capacity (216) and dimensions 550 × 1400 × 215 mm → Business Impact enables high metering density and scalable expansion without footprint growth → Application comprehensive space planning in control rooms and distribution areas. Feature surface mounted/partially recessed mounting and single-door access → Business Impact simplifies installation in existing enclosures and reduces retrofit complexity → Application retrofit projects and new builds with constrained installation footprints.
Get a Quick Quote for a ABB 2CPX032778R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032778R9999?
Enquire Now
FAQs
The cabinet is designed for surface mounting or partial recessed installation with a pre-wired metering module. Begin by verifying EN 61439-2 compliance, mount on a stable surface, connect the TN-S grounding, and integrate the meter space busbars. The pre-wired module reduces on-site wiring time and minimizes risk of incorrect meter connections.
Key ratings include a maximum operating voltage of 415 V AC, rated current of 210 A, and a 5-pole arrangement. The enclosure supports 1 meter cabinet and 1 meter panel, with 216 DIN place units and a 550 × 1400 × 215 mm footprint, all within EN 61439-1/2 standards.
Yes. It is purpose-built as a measurement and metering transformer cabinet, with a pre-wired metering module, Cu busbars, and a 5-pole earthing system, meeting EN 61439-1/2 requirements and designed for indoor metering and distribution tasks in utilities and industrial facilities.
The enclosure offers IP31 protection and Class II isolation, is RoHS and REACH compliant, and carries SCIP and WEEE declarations. It also aligns with CE declarations and EN 61439-2 standards, ensuring both safety and regulatory compliance.
With 216 DIN units and dimensions of 550 mm wide by 1400 mm high and 215 mm deep, the cabinet fits space-constrained rooms. Features like a single door, surface-mounted/partially recessed mounting, and pre-wired metering modules improve compatibility with existing layouts and reduce retrofit complexity.
