ABB 2CPX032902R9999 Meter Cabinet - IP54
Part Number: 2CPX032902R9999
Quick Summary
ABB 2CPX032902R9999 meter cabinet provides a robust measurement and metering solution for industrial switchgear. It helps prevent wiring chaos and speeds integration in space-constrained facilities. This enclosure adheres to EN 61439-1/2, offers IP54 protection, and uses Class II double insulation to enhance safety and reliability. With a powder-coated steel body in RAL 7035 and a pre-assembled metering exchange plate configuration, it reduces field wiring time and commissioning risk. Designed for durability and scalability, it supports copper busbars, a 5-pole assembly, and straightforward upgrading as your metering needs evolve.
Product Information
Extended Description

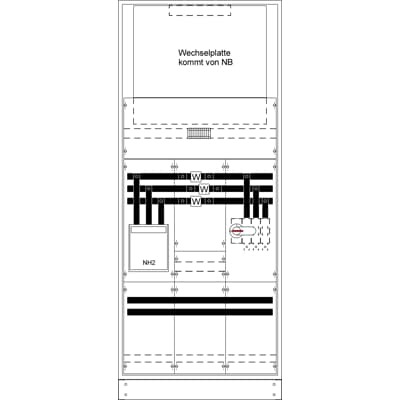

2CPX032902R9999 ABB: Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 320 A, Rated current of the assembly of switchgear and controlgear InA 320 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, with Swivel handle, door opening angle 180 degree, door hinge right or left, dimensions in mm (H x W x D): 1850 x 800 x 275, not pre-wired, Earthing system TN-S, 5-pole, Meter replacement plate metering transformer conversion board size 1/2, 2 or 3 (KF421, KF414, KF 423), busbar system Cu busbars 30 x 10 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH2/400 A, terminal screws M12, current transformer range CT mounting pad with CT rail 170 x 30 x 10 mm, parting point after the current transformer Switch 400 A / 3-pole (M10), PE+N-busbar Cu 30 x 10 mm, Grid unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
320 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar
Configuration Type
pre-assembled for installation of metering exchange plate
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Accessories Available
Yes
DIN Place Units
432
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
3
Product Net Width
800 mm
Product Net Height
1850 mm
Product Net Depth / Length
275 mm
Section Width
3
Product Net Weight
139.935 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
145.532 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction TZG/TZL/TZW | Mounting instruction TZ101-105_107_110-112
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4241
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Standards
DIN EN 61439-2
Feature pre-assembled for metering exchange plates → Business Impact accelerates commissioning and reduces field assembly errors → Application ideal for meter exchanges in substations and retrofit projects. Feature IP54 protection and Class II insulation → Business Impact increases inside-dust/water resilience and operator safety → Application suitable for indoor industrial environments with strict safety standards. Feature Cu busbars 30 x 10 mm and 5-pole layout → Business Impact ensures reliable power distribution and easy future expansion → Application supports scalable meter coordination in compact switchgear. Feature powder-coated steel enclosure in RAL 7035 → Business Impact delivers durable, low-maintenance protection against corrosion and wear → Application fits harsh industrial settings with long service life. Feature dimensions 1850 x 800 x 275 mm and surface mounting → Business Impact enables efficient space planning and quick surface installation → Application for retrofit in limited-space equipment rooms. Feature 432 DIN place units and pre-wired options → Business Impact simplifies panel organization and standardizes component layout → Application streamlines compliance and technician training.
Get a Quick Quote for a ABB 2CPX032902R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032902R9999?
Enquire Now
FAQs
The cabinet is surface-mounted with a footprint of 1850 x 800 x 275 mm and supports a 432 DIN unit configuration, enabling straightforward integration with existing layouts and compatible busbar systems.
It operates at a maximum of 415 V AC, 320 A rated current, 5 poles, with IP54 protection and Class II insulation, meeting EN 61439-1/2 requirements for safe indoor installations.
Yes. It is pre-assembled for installation of metering exchange plates, which speeds upgrades and minimizes on-site customization.
Key standards include EN 61439-1/2, CE conformity declarations, IP54 protection, and Class II insulation, ensuring compliance for industrial metering applications.
A powder-coated steel enclosure (RAL 7035) provides durable protection against corrosion, reducing repainting and maintenance costs while supporting long service life in industrial environments.
