ABB 2CPX032925R9999 Measurement and metering transformer cabinet - IP54
Part Number: 2CPX032925R9999
Quick Summary
Measurement and metering transformer cabinet is designed to house metering panels and control gear in industrial electrical installations. Engineers often struggle with selecting rugged, pre-assembled solutions that fit tight spaces while meeting safety and installation timelines. This ABB TwinLine cabinet meets EN 61439-1/2, IP54 protection, and Class II isolation, delivering reliable operation and CE conformity. With surface mounting, powder-coated steel, and pre-wired options for metering exchange plates, it enables faster installation and scalable infrastructure. It features 288 DIN unit capacity, 1850 mm height, and 550 mm width, making space for future metering upgrades. Designed for reliability in harsh environments, it supports RoHS/REACH compliance and reduces total cost of ownership through durable coatings and robust busbar systems.
Product Information
Extended Description
2CPX032925R9999 ABB: Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 320 A, Rated current of the assembly of switchgear and controlgear InA 320 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, with Swivel handle, door opening angle 180 degree, door hinge right or left, dimensions in mm (H x W x D): 1850 x 550 x 225, not pre-wired, Earthing system TN-S, 5-pole, Meter replacement plate metering transformer conversion board size 1/2 or 2 (KF421, KF414), busbar system Cu busbars 30 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH2/400 A, terminal screws M12, current transformer range CT mounting pad with CT rail 30 x 10 mm, parting point after the current transformer Switch 400 A / 3-pole (M10), N+PE 2 Connections N+PE 150qmm, Grid unit 12 GU, Overall height 8, panel width 3, Space units 288, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
320 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
0
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar
Configuration Type
pre-assembled for installation of metering exchange plate
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel plate/plastic
Material
sheet steel
Accessories Available
Yes
DIN Place Units
288
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Isolated (Class II)
Width in Number of Modular Spacings
2
Product Net Width
550 mm
Product Net Height
1850 mm
Product Net Depth / Length
225 mm
Section Width
3
Product Net Weight
82.075 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
85.358 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction TG/TL/TW | Mounting instruction TZG/TZL/TZW
Data Sheet, Technical Information (Part 2)

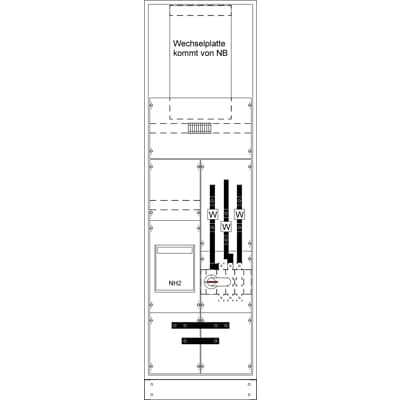

Circuit and distribution diagram KS4240
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Pre-assembled for installation of metering exchange plate → Benefit: Speeds commissioning and reduces field wiring complexity, lowering on-site labor and risk → Application: Utilization in substations and industrial metering rooms where rapid deployment is critical. Feature: IP54 protection and Class II isolation → Benefit: Enhanced safety and protection from dust and water ingress, extending service life and reducing maintenance costs → Application: Indoor and semi-exposed environments in industrial facilities. Feature: Powder-coated steel housing with 1850x550x225 mm footprint → Benefit: Durable enclosure with long-lasting aesthetics and predictable fit in restricted spaces → Application: New builds and retrofits where exact dimensions matter. Feature: 288 DIN place units and 5P configuration with Cu busbars (30x5 mm) → Benefit: High-density, scalable wiring support for future expansion and reliable current distribution → Application: Metering and switchgear assemblies requiring modular growth. Feature: Surface mounting with 180-degree door opening and 3-section width → Benefit: Easy access for maintenance and flexible installation orientation → Application: Centralized control cabinets in production lines. Feature: EN 61439-1/2, RoHS, REACH, WEEE, SCIP compliance → Benefit: Regulatory peace of mind, reduced risk of non-compliance penalties, easier audits → Application: Industries with strict electrical and environmental compliance requirements.
Get a Quick Quote for a ABB 2CPX032925R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032925R9999?
Enquire Now
FAQs
The cabinet is pre-assembled for installation of a metering exchange plate, reducing on-site wiring time. It features a 1850x550x225 mm footprint, a 288 DIN unit capacity, and a 5P configuration with Cu busbars. Prepare the TN-S earthing connection, mount to a suitable surface, and attach the exchange plate per the mounting instructions TG/TL/TW and TZG/TZL/TZW. This minimizes field labour and aligns with EN 61439-1/2 requirements.
Rated operational voltage is up to 415 V AC, rated current 320 A, and it uses a 5-pole configuration. It meets EN 61439-1/2 and carries CE conformity. The enclosure provides IP54 protection and is classified as Isolated (Class II). It is suitable for meter cabinets in distribution and metering applications, ensuring regulatory compliance and electrical safety.
Yes, the cabinet supports TN-S earthing, with a copper busbar system sized at 30x5 mm for 5-pole distribution. This configuration supports robust current paths and reliable grounding, essential for meter cabinets and switchgear assemblies in industrial environments. The design also accommodates a N+PE connection scheme and a 150 mm² minimum conductor in the main terminations.
The enclosure measures 1850 mm in height, 550 mm in width, and 225 mm in depth, with a built-in depth of 225 mm. It is surface-mounted and features a single door that opens 180 degrees with a swivel handle. The unit uses 288 DIN placements (DIN Place Units) and comes with a powder-coated surface (RAL 7035) for durability and visibility in industrial environments.
The pre-assembled design reduces on-site assembly, expediting commissioning and lowering labor costs. Compliance with RoHS, REACH, WEEE, SCIP, and EN 61439-2 minimizes regulatory risk and simplifies audits. Durable powder coating and a robust copper busbar system extend service life, lowering total cost of ownership while enabling easier future metering upgrades.
