ABB 2CPX032959R9999 Measurement Cabinet - IP54 Class II
Part Number: 2CPX032959R9999
Quick Summary
Measurement and metering cabinet solutions streamline utility-scale metering and distribution panel integration. Engineers and procurement teams face long lead times and mismatched accessories when deploying metering enclosures. This ABB TwinLine cabinet complies with EN 61439-1, carries CE declarations, and provides IP54 protection in a Class II, double-insulated housing. Built for rugged environments, it features a powder-coated steel enclosure, 432 DIN slots, and a ready wire path that reduces field installation time. In short, it supports faster deployment, improved safety, and long-term cost avoidance through standards-based design and readily available accessories. This makes it a robust choice for utility customers and industrial facilities seeking compliant, scalable metering infrastructure. Its compatibility with standard ABB accessories and ready wiring options supports faster project delivery and predictable lifecycle costs.
Product Information
Extended Description

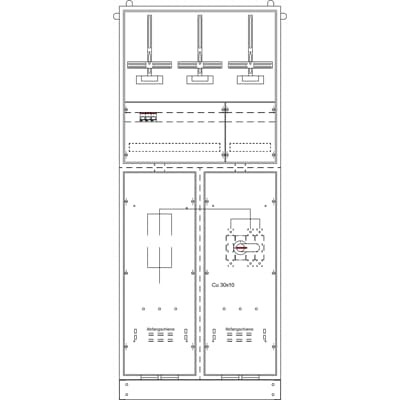

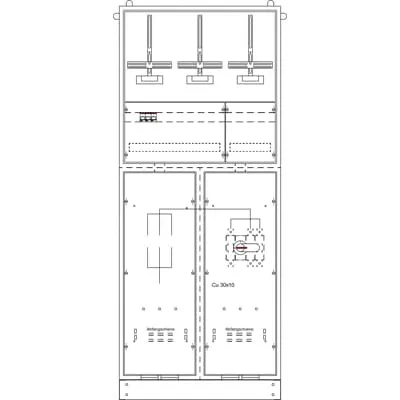

2CPX032959R9999 ABB: Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Rated current of the assembly of switchgear and controlgear InA 250 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, triple door, dimensions in mm (H x W x D): 1850 x 800 x 350, Earthing system TN-S, 5-pole, Meter replacement plate with metering conversion board KF142 without wiring, 3 LS-switches B10/25 kA and wiring for power supply NSGAFöU 4 qmm wiring not connected, current transformer range CT mounting pad out of support insulators with CT rail 220 x 30 x 10 mm, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 30 x 10 mm, N+PE Busbar with busbar snap on terminal 16-150qmm, Grid unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
432
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Isolated (Class II)
Product Net Width
800 mm
Product Net Height
1850 mm
Product Net Depth / Length
350 mm
Section Width
3
Product Net Weight
111.71 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
116.178 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction wall fixing | Mounting instruction TZG/TZL/TZW | Mounting instruction KS41.. / KS42..
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4274
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature → Business Impact → Application: Enclosure robustness and powder-coated steel construction reduce maintenance cycles and corrosion risk in harsh environments, delivering lower total cost of ownership and longer service life for outdoor or semi-indoor installations. Application: Utility substations and outdoor meter rooms benefit from durable protection and reduced downtime. Feature → Business Impact → Application: EN 61439-1 compliance and CE declarations ensure regulatory alignment and safer commissioning, accelerating audits and approvals. Application: New builds and upgrades in industrial facilities meet essential standards without rework. Feature → Business Impact → Application: IP54 protection and Class II insulation minimize risk of electrical faults and accidental contact, supporting safer operations in noise, dust, and moisture-prone areas. Application: LV metering and control panels in distribution boards. Feature → Business Impact → Application: 432 DIN place units and configurable panel widths provide flexible wiring layouts, speeding wiring and future upgrades. Application: Retrofit projects and scalable metering architectures. Feature → Business Impact → Application: Ready-made meter replacement plate KF142 and pre-wired components reduce field wiring complexity, cutting installation time and commissioning risk. Application: Metering stations needing quick deployment. Feature → Business Impact → Application: Surface mounting with a 1850 x 800 x 350 mm footprint fits compact plant rooms, enabling efficient space utilization. Application: New installations in compact or retrofit environments.
Get a Quick Quote for a ABB 2CPX032959R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032959R9999?
Enquire Now
FAQs
This cabinet serves as a measurement and metering enclosure for LV distribution and metering points, providing a ready-to-install solution with a meters/conversion board, safe wiring paths, and space for switchgear. It's ideal for utility-scale metering points and industrial control rooms seeking a compliant, integrated meter cabinet.
Key specs include a rated voltage of 415 V, a rated current of 250 A, 5P, 432 DIN place units, and dimensions of 1850 x 800 x 350 mm. The enclosure is IP54 protected and Class II insulated, with a powder-coated steel body and RAL 7035 finish for durability.
Yes. The cabinet complies with EN 61439-1 and carries CE declarations for meter panels, ensuring regulatory alignment, safer commissioning, and easier acceptance in both new builds and retrofits.
Absolutely. It is designed for surface mounting, uses a powder-coated steel housing, and offers a defined mounting footprint compatible with typical utility and industrial installation practices, simplifying space planning and wiring layouts.
The durable steel construction reduces maintenance needs, standardized design speeds up deployments, and CE/ RoHS/ EN 61439-1 compliance minimizes risk and rework. The 432 DIN slots and modular accessories also support future upgrades with predictable lifecycle costs.
