ABB 2CPX032960R9999 Metering Cabinet - IP54 Class II
Part Number: 2CPX032960R9999
Quick Summary
ABB 2CPX032960R9999 measurement and metering cabinet is designed for centralized metering and transformer protection in switchgear installations. Facilities often struggle with limited space, safety risks, and regulatory compliance when adding metering into crowded electrical rooms. This enclosure meets EN 61439-1 requirements and delivers IP54 protection with Class II isolation to minimize arc flash exposure and simplify installation. The powder-coated, steel enclosure in RAL 7035 provides long-term reliability in industrial environments, while compatible CT mounting options and a 432 DIN unit layout streamline project timelines. For engineers and procurement teams, it translates to faster commissioning, reduced field changes, and predictable lifecycle costs.
Product Information
Extended Description

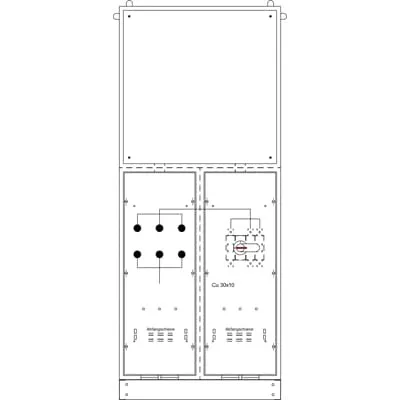

2CPX032960R9999 ABB: Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Rated current of the assembly of switchgear and controlgear InA 250 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, triple door, dimensions in mm (H x W x D): 1850 x 800 x 350, Earthing system TN-S, 5-pole, Meter replacement plate KF140SB or KF142, current transformer range CT mounting pad out of support insulators for CT rail with 130 mm hole distance, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 30 x 10 mm, N+PE Busbar with busbar snap on terminal 16-150qmm, Note: metering transformer conversion board KF140SB or KF142 should be ordered seperately, Grid unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
0
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
432
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Isolated (Class II)
Product Net Width
800 mm
Product Net Height
1850 mm
Product Net Depth / Length
350 mm
Section Width
3
Product Net Weight
101.413 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
105.469 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction wall fixing | Mounting instruction TZG/TZL/TZW | Mounting instruction KS41.. / KS42..
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4276
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature → Business Impact → Application: TwinLine cabinet design delivers a compact, fully assembled solution that reduces on-site assembly time and installation risk, enabling faster project turnover in control rooms and substations. This enclosure offers Class II isolation and IP54 protection, improving operator safety and resilience to dust and moisture in harsh indoor environments. Feature → 415V AC 50/60 Hz rating and 250 A nominal current → Ensures compatibility with standard distribution networks and high-demand metering boards, reducing the need for custom wiring and improving reliability in energy metering applications. Feature → N+PE Cu-Busbar 30 x 10 mm and L1-L3 120 qmm primary wiring → Streamlines power distribution and reduces conductor crowding, supporting clean, scalable busbar layouts in 3P systems. Feature → Powder-coated steel enclosure in RAL 7035 and 4. Large Equipment WEEE compliance → Delivers durable finish with easy maintenance and clear regulatory alignment for industrial deployments. Feature → CT mounting pad provisions and meter replacement plates KF140SB / KF142 (sold separately) → Enables flexible metering configurations and future upgrades without replacing the cabinet, protecting capital investment. Feature → 432 DIN units and built-in grid unit 12 GU → Supports a wide range of meters and control components, improving compatibility with existing installations and future expansions. The overall design addresses common objections about retrofitability by offering a robust, standards-aligned, and maintenance-friendly solution for ABB TwinLine families and similar setups.
Get a Quick Quote for a ABB 2CPX032960R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032960R9999?
Enquire Now
FAQs
The cabinet is designed to accommodate metering conversion boards KF140SB or KF142, allowing metering functionality to be added without replacing the entire enclosure. It includes CT mounting pads and spacing that align with standard KF panels for straightforward integration.
Key specs include maximum operational voltage of 415 V, rated current of 250 A, 5 poles (5P), indoor surface mounting, and IP54 protection with Class II isolation. Dimensions are 1850 mm (H) x 800 mm (W) x 350 mm (D), with 432 DIN unit capacity and a 12 GU grid unit.
Yes. It is designed for indoor use, with IP54 protection and Class II insulation, making it ideal for control rooms and distribution panels where space efficiency and safety are priorities. The powder-coated steel housing and standard mounting provisions support durable, maintenance-friendly installations.
The cabinet adheres to EN 61439-1 for switchgear and controlgear assemblies, includes RoHS and REACH declarations, WEEE categorization, and SCIP registration. It ships with appropriate conformity declarations and supports EU RoHS/REACH compliance for industrial metering panels.
A powder-coated sheet steel enclosure in RAL 7035 provides durable protection against corrosion, while the 432 DIN unit layout, 30 x 10 mm copper busbars, and clear labeling simplify future maintenance and upgrades. The design also minimizes field modification needs, reducing downtime and lifecycle costs.
