ABB 2CPX032961R9999 Measurement and metering cabinet - IP54
Part Number: 2CPX032961R9999
Quick Summary
ABB 2CPX032961R9999 measurement and metering transformer cabinet for centralized metering in distribution substations. Engineers face space constraints, wiring complexity, and mounting compatibility hurdles in meter panel projects. This cabinet meets EN 61439-1, delivers IP54 protection, and provides Class II isolation to reduce fault risk and maintenance downtime. The powder-coated steel enclosure, with a 432 DIN unit capacity and a 1850 x 800 x 350 mm footprint, supports a clean, scalable layout. By consolidating metering components into a single, ready-to-install solution, it accelerates installation, enhances safety, and lowers lifecycle costs while remaining compatible with KS41.. / KS42.. mounting instructions and accessories. This combination supports efficient project delivery and long-term reliability for utility and industrial facilities.
Product Information
Extended Description

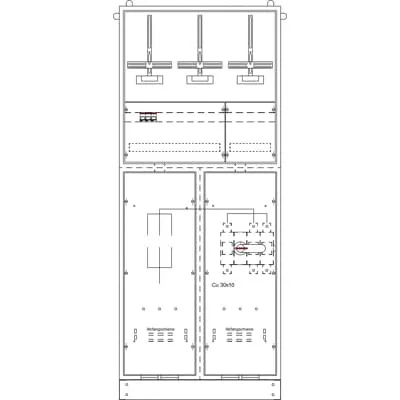

2CPX032961R9999 ABB: Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 400 A, Rated current of the assembly of switchgear and controlgear InA 400 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, triple door, dimensions in mm (H x W x D): 1850 x 800 x 350, Earthing system TN-S, 5-pole, Meter replacement plate with metering conversion board KF142 without wiring, 3 LS-switches B10/25 kA and wiring for power supply NSGAFöU 4 qmm wiring not connected, current transformer range CT mounting pad out of support insulators with CT rail 220 x 30 x 10 mm, parting point after the current transformer Switch 630 A / 3-pole (M12), primary wiring L1-L3 185 qmm, N+PE Cu-Busbar 30 x 10 mm, N+PE Busbar with busbar snap on terminal 16-150qmm, Grid unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
400 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
0
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
432
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Isolated (Class II)
Product Net Width
800 mm
Product Net Height
1850 mm
Product Net Depth / Length
350 mm
Section Width
3
Product Net Weight
116.552 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
121.214 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction wall fixing | Mounting instruction TZG/TZL/TZW | Mounting instruction KS41.. / KS42..
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4278
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: Powder-coated sheet steel enclosure with RAL 7035 finish provides robust durability. Business Impact: Reduces corrosion-related maintenance and extends service life in demanding environments. Application: Ideal for indoor meter cabinets in switchgear rooms where a consistent finish matters. Feature: IP54 protection and Isolated (Class II) insulation improve safety and compliance. Business Impact: Lowers risk of access-related faults and simplifies regulatory adherence. Application: Suitable for internal use meter panels with strict safety requirements. Feature: Large DIN footprint with 432 DIN units and 3 panel widths. Business Impact: Enables flexible metering board configurations and future expansion without rework. Application: Centralized metering sub-panels for scalable infrastructure. Feature: Generous dimensions (1850 mm H x 800 mm W x 350 mm D) with surface mounting. Business Impact: Optimizes space utilization in constrained rooms while maintaining serviceability. Application: Space-efficient installation in distribution and metering zones. Feature: Integrated accessories including meter replacement plate KF142 and CT mounting pad. Business Impact: Speeds configuration, reduces field wiring time, and improves reliability. Application: Ready-to-install solution for metering and protection circuits in ABB TwinLine families.
Get a Quick Quote for a ABB 2CPX032961R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032961R9999?
Enquire Now
FAQs
This cabinet is designed for surface mounting with a footprint of 1850 x 800 x 350 mm and a single door. It accommodates 432 DIN units and supports 3 panel widths. Use the KS41.. / KS42.. mounting instructions for wall/floor mounting and ensure proper TN-S earthing with N+PE Cu-Busbar 30 x 10 mm for safe, compliant installation.
The unit complies with EN 61439-1 for switchgear and controlgear assemblies. It carries a CE declaration of conformity and adheres to RoHS and REACH requirements. The protection class is IP54 with Isolated (Class II) insulation, supporting safe indoor and semi-protected installations.
Yes. The cabinet is rated for 400 A (In) and has a 400 A rating for the assembly of switchgear and controlgear. It uses a 5-pole configuration and supports metering circuitry with a 432 DIN unit capacity, making it suitable for medium-to-large distribution panels.
Key accessories include a meter replacement plate with metering conversion board KF142, CT mounting pads, and N+PE busbars. The enclosure is designed to accommodate these items with ready-to-install components, reducing field wiring time and enabling quicker commissioning.
The powder-coated steel enclosure provides long-term corrosion resistance, while EN 61439-1 compliance and RoHS/REACH declarations reduce regulatory risk. The unit’s 432 DIN capacity supports scalable metering configurations, lowering future upgrade costs and downtime, which translates to lower total cost of ownership over its service life.
