ABB 2CPX032963R9999 Metering Transformer Cabinet - EN 61439-1 IP54
Part Number: 2CPX032963R9999
Quick Summary
ABB 2CPX032963R9999 metering transformer cabinet provides a complete indoor metering solution for utility and industrial panels. Maintaining reliability while meeting enclosure standards can be challenging in tight spaces. This cabinet complies with EN 61439-1, offers IP54 protection, and is Class II isolated for safety. Built with powder-coated steel in RAL 7035 and designed for surface mounting, it includes mounting brackets and provisions for CT mounting, helping you cut installation time and improve regulatory compliance. It measures 800x800x275 mm, provides TN-S earthing, and features a double-door design for easy access to wiring and testing during commissioning and maintenance. The design supports robust metering performance in confined plant environments, aligning with modern utility and industrial metering needs.
Product Information
Extended Description
2CPX032963R9999 ABB: Metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Rated current of the assembly of switchgear and controlgear InA 250 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 800 x 800 x 275, Earthing system TN-S, 5-pole, current transformer range CT mounting pad out of support insulators for CT rail with 130 mm hole distance, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 30 x 10 mm, N+PE Busbar with busbar snap on terminal 16-150qmm, Note: Mounting with included mounting brackets,busbar for metering transformers may be required, Grid unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Panel Widths
0
Number of Rows
0
Number of TSG Panels
0
Enclosure Type
Metering transformer cabinet
Enclosure Type of Height
1
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
180
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Isolated (Class II)
Product Net Width
800 mm
Product Net Height
800 mm
Product Net Depth / Length
275 mm
Section Width
3
Product Net Weight
56.277 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
57.965 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction wall fixing
Data Sheet, Technical Information (Part 2)

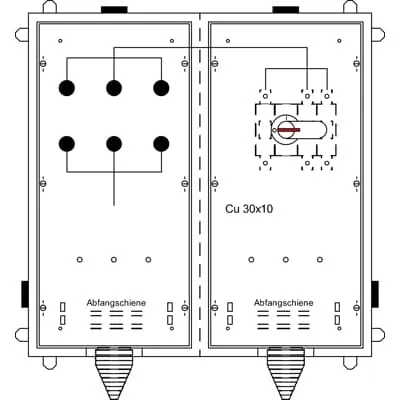

Circuit and distribution diagram KS4025
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
TwinLine enclosure: The metering transformer cabinet is a fully assembled indoor solution that reduces on-site assembly time and potential wiring errors, enabling faster project commissioning and lower lifecycle risk. This translates to measurable efficiency gains in plant start-ups and easier compliance testing for EN 61439-1 in utility and industrial metering applications. IP54 protection with Class II isolation minimizes dust ingress and enhances safety without requiring extra insulating measures, simplifying procurement and installation in data centers and factory floors. The 800x800x275 mm footprint, 5P configuration, and 180 DIN unit capacity support substantial current metering setups, including 120 qmm L1–L3 wiring and Cu-Busbar 30x10 mm, reducing conductor crowding and enabling cleaner, future-ready layouts. Powder-coated sheet steel, RAL 7035, delivers durable aesthetics and corrosion resistance in challenging indoor environments. Mounting brackets are included, and CT mounting pads are provided, offering a streamlined, plug-and-play installation for metering transformers and switchgear integrations. The cabinet’s surface mounting design and double-door access simplify maintenance checks, wiring modifications, and fault isolation while preserving security and safety for operators. With RoHS and REACH declarations, it supports regulatory compliance and sustainable procurement. Compatibility with a broad range of metering components and standard busbar snap-on terminals (16–150 qmm) ensures flexible integration with existing plant architectures and future upgrades.
Get a Quick Quote for a ABB 2CPX032963R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032963R9999?
Enquire Now
FAQs
The cabinet is designed for indoor metering in 415 V, 50/60 Hz networks and supports TN-S earthing. It features surface mounting, a double-door access design, and mounting brackets to simplify wall-fixing. Primary wiring configured for L1–L3 with 120 qmm conductors and Cu-Busbar 30x10 mm supports robust, compliant connections. Ensure space for 800x800x275 mm footprint and adequate clearance for maintenance access.
Key specs include rated operational voltage of 415 V, rated current of 250 A, 5 poles, IP54 protection, and Class II isolation. EN 61439-1 compliance ensures standardized safety and performance. The powder-coated steel housing and 180 DIN unit capacity reduce thermal and corrosion risks, while double-door access and included mounting brackets streamline commissioning and routine maintenance.
Yes. The TwinLine metering cabinet is designed for indoor use in utility meter rooms and industrial plants. Its IP54 rating and Class II isolation provide reliable protection in dusty environments, while EN 61439-1 compliance ensures safe integration with meter transformers and switchgear. The robust construction and compatibility with CT mounting pads support scalable metering configurations in both sectors.
The cabinet includes CE conformity declarations and RoHS/REACH compliance, with an EU Declaration of Conformity for meter panels and related components. It also aligns with WEEE category 4 and SCIP reporting. These certifications support sustainable procurement and regulatory adherence across European utility and industrial installations.
By delivering an all-in-one, ready-to-install enclosure with mounting brackets and CT mounting provisions, it reduces field labor, commissioning time, and wiring errors. The powder-coated steel finish enhances durability, lowering maintenance costs, while EN 61439-1 compliance minimizes risk of non-conformance. Together, these factors shorten project timelines and improve long-term reliability for metering transformers.
