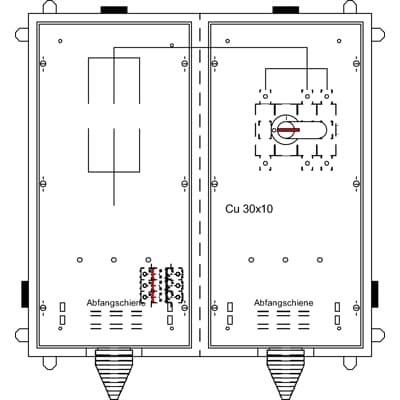

ABB 2CPX032964R9999 Metering Transformer Cabinet - IP54
Part Number: 2CPX032964R9999
Quick Summary
ABB 2CPX032964R9999 Metering Transformer Cabinet is a ready-to-install enclosure designed to house metering transformers in electrical distribution panels. Engineers often struggle with balancing protection, space, and wiring complexity in meter cabinets; this unit addresses those pain points with a compact 800 x 800 x 275 mm footprint and a double-door, surface-mount design. It meets EN 61439-1 and carries CE, RoHS, and REACH declarations, while the IP54 rating and isolated Class II construction deliver safe, maintenance-friendly performance across industrial facilities. The powder-coated steel body in RAL 7035 and included mounting brackets further simplify installation and support long-term reliability in demanding environments, making it a practical choice for internal metering applications and ABB’s reliability standards.
Product Information
Extended Description
2CPX032964R9999 ABB: Metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Rated current of the assembly of switchgear and controlgear InA 250 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 800 x 800 x 275, Earthing system TN-S, 5-pole, current transformer range CT mounting pad out of support insulators with CT rail 220 x 30 x 10 mm, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 30 x 10 mm, N+PE Busbar with busbar snap on terminal 16-150qmm, Note: Mounting with included mounting brackets, Grid unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Panel Widths
0
Number of Rows
0
Number of TSG Panels
0
Enclosure Type
Metering transformer cabinet
Enclosure Type of Height
1
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
180
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Isolated (Class II)
Product Net Width
800 mm
Product Net Height
800 mm
Product Net Depth / Length
275 mm
Section Width
3
Product Net Weight
58.555 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
60.897 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction wall fixing
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4026
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Enclosure robustness and protection: The cabinet uses powder-coated sheet steel finished in RAL 7035, delivering a corrosion-resistant, durable enclosure with IP54 protection and Isolated Class II insulation. Business impact: improved safety, reduced maintenance costs, and extended service life in indoor electrical rooms. Application: ideal for internal metering transformer installations in factories and utilities where dust and humidity exposure are considerations. Dimensional fit and mounting convenience: With 800 x 800 mm footprint, 275 mm depth, double doors, and surface mounting, plus included mounting brackets, the unit integrates quickly into existing switchgear layouts. DIN placement of 180 units and a built-in grid unit streamline layout planning and alignment. Business impact: faster project delivery and fewer customization steps. Application: suitable for space-constrained control rooms and equipment halls. Electrical compatibility: Rated up to 415 V AC and 250 A, 5P, TN-S earthing, and N+PE Cu-Busbar 30 x 10 mm with snap-on terminal blocks for 16-150 qmm. Built to support primary wiring L1-L3 120 qmm and a 400 A switchgear interface. Business impact: reliable power distribution for metering circuits with clear wiring paths. Application: metering transformer cabinets in medium-to-large installations. Standards and compliance: EN 61439-1 compliance, CE declaration, RoHS and REACH declarations, WEEE categorization, SCIP record, and EU conformity documentation. Business impact: procurement efficiency, regulatory risk reduction, and simpler audits. Application: essential for projects demanding formal compliance and traceability. Installation efficiency and lifecycle support: Series TwinLine cabinet with included mounting hardware, powder-coated finish, and a ready-to-wire design reduces install time and post-install maintenance. Business impact: lower lifecycle costs and faster time-to-value. Application: new installations or retrofits in industrial facilities where reliability and documentation matter.
Get a Quick Quote for a ABB 2CPX032964R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032964R9999?
Enquire Now
FAQs
The 2CPX032964R9999 is designed for internal metering transformer installations with a surface-mount approach and a double-door configuration. It fits standard 800x800 mm spaces and includes mounting brackets to simplify alignment with existing switchgear, minimizing the need for field adaptation. Its EN 61439-1 compliance and 180 DIN unit layout support predictable integration into common control room layouts.
This cabinet meets EN 61439-1 for switchgear and controlgear assemblies, and carries CE, RoHS, and REACH declarations. It features IP54 protection and Isolated Class II insulation, ensuring safe operation in conditioned indoor environments. WEEE and SCIP registrations further support regulatory compliance and responsible end-of-life handling.
Key specs include a maximum operational voltage of 415 V, a rated current of 250 A, and a 5-pole arrangement. It uses TN-S earthing, with N+PE busbars (30 x 10 mm) and copper wiring suitable for 120 qmm primary L1-L3 connections. The enclosure is compatible with a 400 A switchgear interface and supports metering transformer applications reliably.
This cabinet is designed to reduce install time through features like included mounting brackets, a pre-arranged 180 DIN unit layout (DIN Place Units), and a straightforward surface-mount design. The powder-coated steel body and double-door access simplify access, wiring, and cable management, while reducing on-site adjustments and post-install testing.
Given its powder-coated steel construction and IP54 rating, routine inspection should focus on fastener integrity, door seals, and signs of coating wear. The enclosure’s corrosion resistance supports longer intervals between touch-ups. Compliance documentation (CE, RoHS, REACH) should be maintained for audits, and WEEE/SCIP records kept for lifecycle management.
