ABB 2CPX032965R9999 Metering transformer cabinet - IP54, Class II
Part Number: 2CPX032965R9999
Quick Summary
Metering transformer cabinet is a rugged indoor enclosure for safe, reliable 3‑phase metering and distribution in industrial facilities. Installing compact panels that fit tight spaces while meeting evolving standards can be a challenge. This ABB TwinLine cabinet aligns with EN 61439-1 and delivers Class II isolation and IP54 protection for durable, compliant operation. The design supports CE declarations, RoHS and REACH compliance, and straightforward integration with existing switchgear. With powder-coated steel and a modular approach, it offers long-term value, easy maintenance, and scalable wiring for future expansions while minimizing total cost of ownership.
Product Information
Extended Description

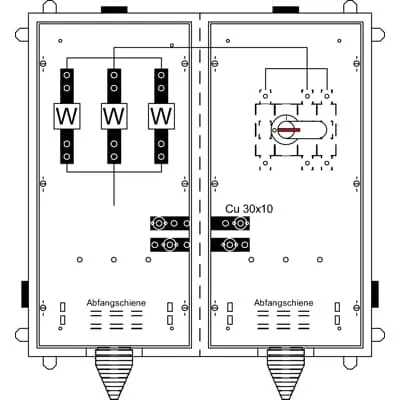

2CPX032965R9999 ABB: Metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Rated current of the assembly of switchgear and controlgear InA 250 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 800 x 800 x 275, Earthing system TN-S, 5-pole, current transformer range CT mounting pad out of support insulators with CT rail 220 x 30 x 10 mm, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 30 x 10 mm, N+PE Busbar with busbar snap on terminal 16-150qmm, Note: Mounting with included mounting brackets,busbar for metering transformers may be required, Grid unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Panel Widths
0
Number of Rows
0
Number of TSG Panels
0
Enclosure Type
Metering transformer cabinet
Enclosure Type of Height
1
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
180
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Isolated (Class II)
Product Net Width
800 mm
Product Net Height
800 mm
Product Net Depth / Length
275 mm
Section Width
3
Product Net Weight
58.303 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
60.635 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction wall fixing
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4027
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: Robust powder-coated steel enclosure with a 800 x 800 x 275 mm footprint offers durable protection in indoor environments. Business Impact: Reduces maintenance downtime and extends service life in harsh plant conditions. Application: Ideal for indoor metering cabinets in electrical substations and plant electrical rooms. Feature: Class II isolation and IP54 protection ensure safe operation and ingress protection in semi-enclosed spaces. Business Impact: Lower risk of arc faults and dust ingress, improving worker safety and reliability. Application: Suitable for high‑integrity metering installations in mixed-use facilities. Feature: 5P grounding and TN-S earthing with N+PE Cu-Busbar 30 x 10 mm supports clean, compliant power distribution. Business Impact: Simplifies grounding schemes and reduces copper loss through optimized conductor routing. Application: Core in three‑phase metering panels with CT mounting pads. Feature: Wire-ready design with L1-L3 120 qmm primary wiring, and built‑in grid unit 5 GU. Business Impact: Accelerates assembly time and reduces installation errors. Application: Facilitates rapid deployment in new buildouts or refurbishments. Feature: Mounting brackets included and optional busbar for metering transformers. Business Impact: Improves installation flexibility and reduces additional sourcing costs. Application: Compatible with ABB TwinLine configurations and retrofit projects. Feature: Aesthetic and compliant finish with RAL 7035 light grey, clear labeling, and CE declarations. Business Impact: Supports corporate branding and regulatory compliance across Europe. Application: Suited for customer sites demanding standardized, compliant enclosures across multiple projects.
Get a Quick Quote for a ABB 2CPX032965R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032965R9999?
Enquire Now
FAQs
This cabinet is designed for indoor, surface-mounted metering applications and combines a double‑door, powder‑coated steel enclosure with a 800x800x275 mm footprint. It mirrors standard DIN layouts (180 DIN units) and provides CT mounting pads, a 30x10 mm N+PE busbar, and 5P connections, enabling straightforward integration with existing switchgear and energy meters without major rework.
The enclosure is EN 61439-1 compliant, features IP54 protection, and uses a Class II insulating system. It carries CE declarations and is RoHS/REACH compliant, ensuring regulatory alignment for European installations and safer, durable operation in industrial environments.
Yes. Its indoor, surface-mounted design with IP54 protection and powder-coated steel housing is appropriate for controlled indoor spaces such as electrical rooms in manufacturing, energy plants, and data center support rooms, where reliable metering and protection are required without compromising on space or aesthetics.
Mounting pads for current transformers are included with CT rails of 220x30x10 mm, and a Cu busbar 30x10 mm supports N+PE distribution. Plan for potential extra busbar requirements for metering transformers, and verify L1–L3 wiring capacity (120 qmm) to ensure safe, efficient assembly and future scalability.
The powder-coated steel enclosure reduces corrosion risk in indoor environments, while the modular design and included mounting brackets shorten installation time and field labor costs. Compliance with EN 61439-1, RoHS, and REACH reduces regulatory overhead, contributing to lower lifecycle costs and higher system reliability.
