ABB 2CPX032969R9999 Metering Transformer Cabinet - IP54
Part Number: 2CPX032969R9999
Quick Summary
Metering transformer cabinet solutions by ABB provide compact, safe housing for metering transformers in internal distribution panels. Engineers often struggle with space constraints, mounting complexity, and compliance documentation in fast-paced projects. This ABB cabinet aligns with EN 61439-1 and delivers IP54 protection in a double-insulated Class II enclosure, while the CE Declaration confirms conformity. With powder-coated steel and a robust 800x800x275 mm footprint, it simplifies installation and reduces field wiring errors. Designed for seamless integration with standard 180 DIN place grids and 4-pole switchgear, it supports reliable metering and easy maintenance, helping utilities and manufacturers minimize downtime and total cost of ownership. It ships with mounting brackets included for quick installation.
Product Information
Extended Description

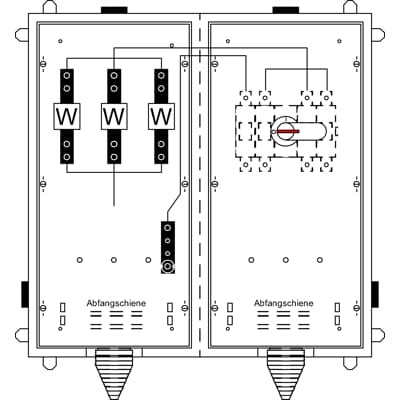

2CPX032969R9999 ABB: Metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Rated current of the assembly of switchgear and controlgear InA 250 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 800 x 800 x 275, Earthing system TT, 4-pole, current transformer range CT mounting pad out of support insulators with CT rail 220 x 30 x 10 mm, parting point after the current transformer Switch 400 A / 4-pole (M10), primary wiring L1-L3 120 qmm, N Cu-Busbar 30 x 10 mm, Connection N (M10), Note: Mounting with included mounting brackets, Grid unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Number of Poles
4P
Number of Meter Cabinets
0
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Enclosure Type
Metering transformer cabinet
Enclosure Type of Height
1
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
180
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Isolated (Class II)
Product Net Width
800 mm
Product Net Height
800 mm
Product Net Depth / Length
275 mm
Section Width
3
Product Net Weight
58.399 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
60.734 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction wall fixing
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4060
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature: Fully assembled TwinLine metering transformer cabinet with surface mounting and powder-coated steel construction. Business Impact: accelerates project timelines by eliminating field assembly and simplifying wiring. Application: ideal for internal meter panels in panel boards and switchgear rooms. Feature: IP54 protection and Isolated (Class II) enclosure. Business Impact: safer operation and enhanced protection of sensitive metering components in indoor environments. Application: suitable for indoor distribution panels where dust and moisture ingress must be limited. Feature: Dimensions of 800 x 800 x 275 mm with 180 DIN places and a built-in depth of 275 mm. Business Impact: predictable space planning and compatibility with standard DIN rail layouts, reducing layout errors. Application: integration into control rooms and plant electrical rooms. Feature: Powder-coated steel housing with RAL 7035 light grey finish and double doors. Business Impact: improved corrosion resistance, low maintenance, and a professional, uniform appearance. Application: essential for long-term reliability in busy industrial environments. Feature: RoHS and REACH compliance with CE declarations and WEEE classification. Business Impact: regulatory assurance reduces compliance risk and supports sustainability reporting. Application: suitable for European installations and supplier risk management.
Get a Quick Quote for a ABB 2CPX032969R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032969R9999?
Enquire Now
FAQs
This cabinet is designed for surface mounting with included mounting brackets, supporting a 800x800x275 mm footprint and a 180 DIN unit capacity. It features a double-door front for easy access to internal components and a TT earthing system. Ensure the mounting surface is solid, level, and within the indoor environment specified by EN 61439-1 requirements to maintain IP54 protection and safe operation.
The cabinet is configured as a class II isolation enclosure with powder-coated steel housing, conforming to EN 61439-1 for switchgear and controlgear assemblies. Its IP54 rating protects against dust ingress and water splashes, improving reliability in indoor plant environments. Certification declarations and RoHS/REACH compliance further support regulatory adherence in European installations.
The cabinet measures 800 mm in width and height with a depth of 275 mm and includes a 180 DIN placement grid. The net weight is 58.399 kg, with a packaged weight of approximately 60.734 kg. These specs aid in accurate room planning, lifting clearances, and safe handling during installation.
Included mounting brackets enable straightforward wall mounting, and the unit is designed for surface mounting with a 4-pole switch and 250 A rating. The interior supports N Cu-Busbar connections and CT mounting pads, making it suitable for internal metering transformer configurations in distribution panels.
Yes. The cabinet carries RoHS compliance under EU Directive 2011/65/EU and the 2015/863 amendment, with a REACH declaration indicating substances above 0.1 mass percentage. WEEE classification places it in the Large Equipment category, demonstrating readiness for European procurement, recycling, and sustainability reporting.
