ABB 2CPX032975R9999 Metering Cabinet System - IP55
Part Number: 2CPX032975R9999
Quick Summary
Measurement and metering transformer cabinet is a centralized solution for housing meter panels and cross connections in industrial power systems. Engineers often face challenges with pre-wired configurations, integration with existing switchgear, and maintaining regulatory compliance in fast-moving projects. The enclosure carries IP55 protection, isolated Class II construction, and EN 61439-1 compliance to help mitigate risk while improving safety. This ABB metering cabinet supports efficient deployment, predictable maintenance, and long-term reliability, with compatibility features such as TN-S grounding, powder-coated steel housing, and a clearly defined metering layout that streamlines procurement and installation for engineers and procurement specialists.
Product Information
Extended Description

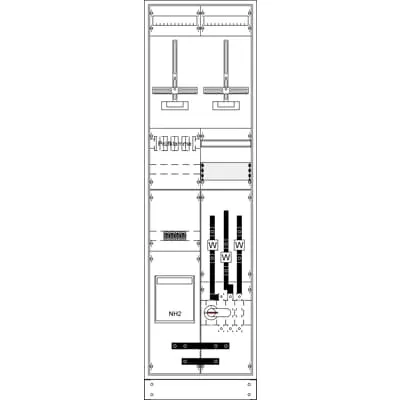

2CPX032975R9999 ABB: Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection II (double insulated), degree of protection IP55, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 320 A, Rated current of the assembly of switchgear and controlgear InA 400 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, door hinge right or left, dimensions in mm (H x W x D): 1950 x 550 x 225, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole sealable, parting point before the current transformer Fuse switch disconnector NH2/400 A, terminal screws M12, current transformer range CT mounting pad with CT rail 30 x 10 mm, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring Cu-Busbar 30 x 5 mm, Connection N+PE (M10), Grid unit 12 GU, Overall height 8, panel width 2, Space units 288, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
320 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Material
Steel
Accessories Available
Yes
DIN Place Units
288
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
ac8f192b-f442-48f3-b8d7-e8407cf5d648 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP55
Protection Class
Isolated (Class II)
Product Net Width
550 mm
Product Net Height
1950 mm
Product Net Depth / Length
225 mm
Section Width
2
Product Net Weight
87.098 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
90.582 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction TZG/TZL/TZW | Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4209Z
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Feature → Business Impact → Application: Fully assembled measurement and metering transformer cabinet reduces on-site assembly time by delivering a pre-wired, purpose-built solution with functional Metering cross, enabling faster deployment in substations and industrial plants. This translates to lower labor costs and reduced commissioning risk for project managers and electrical contractors. Feature → Business Impact → Application: Powder-coated steel enclosure in RAL 7035 delivers durable, corrosion-resistant protection (IP55) for outdoor or semi-exposed installations, enhancing uptime and minimizing corrosion-related maintenance in harsh environments such as factory floors or outdoor distribution rooms. Feature → Business Impact → Application: Integrated 5P, TN-S earthing, Cu-Busbar 30 x 5 mm, and CT mounting pad with CT rail 30 x 10 mm simplify wiring and improve safety margins, enabling quicker, error-free wiring during installation in control rooms or switchgear bays. Feature → Business Impact → Application: Pre-wired according to requirements DSO, with fuse base NH2/400 A and M10 terminal screws, reduces commissioning time and risk of miswiring, delivering reliable performance in metering and protection circuits across utilities and industrial facilities. Feature → Business Impact → Application: Built-in 12 GU grid unit, 2 panel widths, and 288 DIN places support scalable metering configurations and future expansion, making it suitable for projects that anticipate growth in demand and metering complexity. Feature → Business Impact → Application: RoHS and REACH declarations, CE conformity, and WEEE/CMRT compliance minimize regulatory risk and support sustainability goals, easing procurement for customers with strict supplier requirements and audits in manufacturing and energy sectors.
Get a Quick Quote for a ABB 2CPX032975R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032975R9999?
Enquire Now
FAQs
The cabinet is designed for surface mounting with a TN-S grounding scheme. It includes a 5P arrangement, Cu-Busbar 30x5 mm for lower connection space, and a pre-wired configuration that simplifies conductor routing from the meter panels to the main switchgear. Follow the included mounting instructions TZG/TZL/TZW and ZX340 for correct placement and safe, compliant wiring.
Key ratings include a maximum operating voltage of 415 V, a nominal current of 320 A, and a 5-pole configuration. The enclosure supports a meter cabinet and panel arrangement with one meter cabinet space and one panel space, all within an IP55, Class II protected, powder-coated steel housing for robust operation.
Yes. The cabinet complies with EN 61439-1 and carries CE conformity. It also includes RoHS and REACH declarations, with WEEE classification, ensuring regulatory alignment for European installations and audits across industrial and utility contexts.
Its fully assembled design with Metering cross, 2 building widths, 288 DIN places, and pre-wired configuration reduces field wiring and installation time. The IP55 protection level and Class II isolation provide durable protection in harsh environments while enabling safe operation around metering and cross-connection points in substations or plant switchgear bays.
RoHS/REACH declarations and EN 61439-1 compliance minimize audit findings and lifecycle risk. The powder-coated steel enclosure reduces corrosion-related maintenance, while the pre-wired design lowers commissioning cost and downtime, delivering faster project ROI for utility or industrial automation projects.
