ABB 2CPX032976R9999 Measurement & Metering Cabinet - IP55
Part Number: 2CPX032976R9999
Quick Summary
ABB 2CPX032976R9999 Measurement & Metering Cabinet houses metering transformers for secure, compliant power distribution. Engineers often grapple with wiring errors, limited space, and evolving regulatory demands when integrating meter panels in control rooms or switchgear halls. This cabinet meets CE conformity, IP55 protection, and Isolated Class II construction, delivering safe operation in dusty and moisture-prone environments. With pre-wired configuration, powder-coated steel housing, and a TN-S grounding scheme, installation is faster, less error-prone, and easier to maintain. Compatible with Cu busbars and 5-pole switchgear, it supports scalable metering layouts and reliable energy management, helping reduce downtime and lifecycle costs. This aligns with electrical safety standards and project timelines.
Product Information
Extended Description

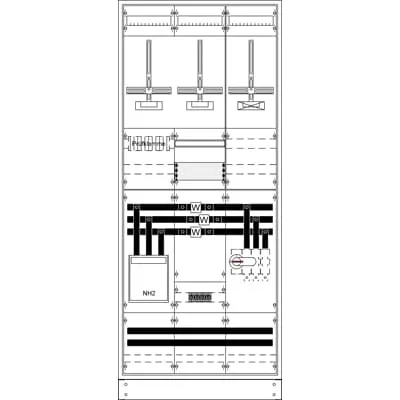

2CPX032976R9999 ABB: Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection II (double insulated), degree of protection IP55, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 320 A, Rated current of the assembly of switchgear and controlgear InA 400 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, door hinge right or left, dimensions in mm (H x W x D): 1950 x 800 x 275, Earthing system TN-S, 5-pole, Number of SG spaces 2, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole sealable, busbar system Cu busbars 40 x 10 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH2/400 A, terminal screws M12, current transformer range CT mounting pad with CT rail 170 x 40 x 10 mm, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring Cu-Busbar 30 x 10 mm, Connection N+PE (M10), Grid unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
320 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
2
Lower Connection Space
with Bus Bar
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Material
Steel
Accessories Available
Yes
DIN Place Units
432
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP55
Protection Class
Isolated (Class II)
Product Net Width
800 mm
Product Net Height
1950 mm
Product Net Depth / Length
275 mm
Section Width
3
Product Net Weight
139.497 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
145.077 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction TZG/TZL/TZW | Mounting instruction ZX340 | Mounting instruction TZ101-105_107_110-112
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4210Z
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
The TwinLine measurement and metering cabinet is delivered fully assembled, with a built-in cross for metering, which translates to fewer field connections and faster commissioning—reducing on-site risk and project delays while ensuring consistent quality across deployments. Utility engineers benefit from a pre-wired configuration that meets DSO requirements, enabling quicker energization and simplified testing during handover. The enclosure provides IP55 protection and Isolated Class II construction, delivering robust dust and moisture resistance for reliable operation in varied plant environments and during routine maintenance. EN 61439-1 compliance, a maximum operational voltage of 415 V, and a rated current of 320 A guarantee regulatory alignment and compatibility with modern switchgear, improving interoperability across devices and brands. The steel housing is powder-coated in RAL 7035, offering durable aesthetics and long-term resistance to corrosion in indoor production areas. Copper busbars (40 x 10 mm) and 5-pole wiring support clean, low-resistance power paths, while a TN-S grounding scheme enhances safety and earth continuity. Pre-installed fuse bases (D01/3-pole sealable) and a switch (NH2/400 A) simplify protection coordination and maintenance. With 432 DIN units and three panel widths, the design accommodates growing metering needs and modular expansion without disassembly. Quick-seal connections and standardized terminal screws (M12) reduce rework during upgrades and servicing. These features collectively minimize downtime and optimize energy metering reliability in industrial installations.
Get a Quick Quote for a ABB 2CPX032976R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032976R9999?
Enquire Now
FAQs
The cabinet is designed for metering transformer applications within standard 5P configurations and TN-S grounding, featuring Cu busbars and DSO-aligned pre-wiring. Its EN 61439-1 compliance ensures compatibility with contemporary switchgear and meter panels, simplifying integration with existing electrical infrastructure.
It meets CE declarations and EN 61439-1 requirements for meter panels, delivers IP55 protection for dust and moisture exposure, and employs Isolated Class II insulation for safe operation. RoHS/REACH declarations are included, supporting regulatory compliance across EU markets.
Pre-wired configuration and quick-sealable connections reduce field wiring, while a powder-coated steel enclosure and standardized components streamline mounting, testing, and handover. Expect faster commissioning and fewer on-site wiring errors, particularly in retrofit projects or first-time installations.
Yes. The IP55 rating and Class II isolation provide robust protection against dust and moisture, making it appropriate for indoor production areas and semi-exposed plant spaces where metering transformers operate in challenging conditions.
Dimensions are 1950 mm (H) x 800 mm (W) x 275 mm (D); product net weight about 139.5 kg. It supports 432 DIN units across three panel widths, with 2 SG spaces and 1 meter panel, enabling scalable metering configurations for growing energy-management needs.
