ABB 2CPX032977R9999 Measurement Cabinet - IP54
Part Number: 2CPX032977R9999
Quick Summary
ABB 2CPX032977R9999 measurement cabinet enables centralized metering and control for transformer stations. This approach reduces on-site wiring errors, space conflicts, and commissioning delays that commonly derail projects. The enclosure is EN 61439-1/2 compliant, IP54 protected, and Class I grounded, with CE conformity to meet stringent utility and industrial standards. With a powder-coated steel body, copper busbars, and pre-wired configurations, it delivers faster, safer installations and lower lifecycle costs for energy metering and protection.
Product Information
Extended Description

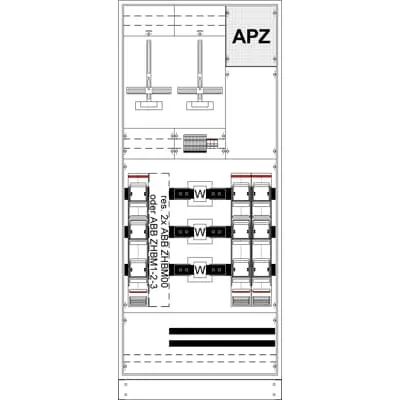

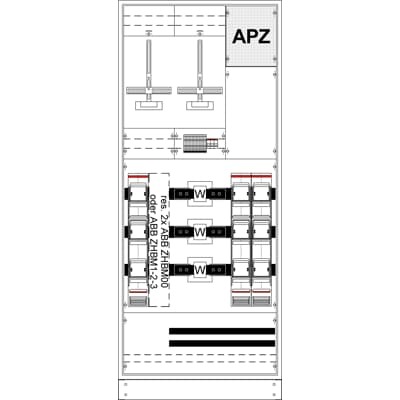

2CPX032977R9999 ABB: Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 400 A, Rated current of the assembly of switchgear and controlgear InA 494 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 1950 x 800 x 350, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 60 x 10 mm 5-pole, parting point before the current transformer Fuse disconnector NH3/630 A with double V-terminals, current transformer range CT mounting pad with CT rail, nickel plated, 250 x 40 x 10 mm, parting point after the current transformer 2 Fuse disconnector NH2/400 A, PE+N-busbar Cu 40 x 10 mm, Grid unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
400 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
432
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Width in Number of Modular Spacings
3
Product Net Width
800 mm
Product Net Height
1950 mm
Product Net Depth / Length
350 mm
Section Width
3
Product Net Weight
128.215 kg
Built-In Depth (t2)
350 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
133.344 kg
Replacement Product ID (NEW)
2CPX056079R9999
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction TZG/TZL/TZW | Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4224Z
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Standards
DIN EN 61439-2
Feature → Business Impact → Application: Fully assembled measurement and metering transformer cabinet with TwinLine design and pre-wired configuration reduces field wiring time and potential connection errors, accelerating project timelines in substations and industrial plants. This translates to lower labor costs and faster metering commissioning, enabling quicker energy data availability for operational decisions. Application: metering cabinet deployments in utility and process automation environments. Feature → Business Impact → Application: Powder-coated steel enclosure in RAL 7035 with IP54 protection and Class I grounding delivers durable protection against dust and moisture while ensuring operator safety. Benefit: reduced maintenance cycles and longer service life in challenging plant environments. Application: indoor and semi-exposed switchgear rooms where reliability is essential. Feature → Business Impact → Application: Rated operational voltage of 415 V AC and a 400 A nominal current with InA 494 A supports mid-range metering and distribution tasks with confidence. Benefit: stable performance under peak loads and simplified electrical planning. Application: transformer metering sections in industrial facilities and utilities. Feature → Business Impact → Application: Copper busbars (60 x 10 mm) and a 5-pole TN-S grounding system provide robust, low-resistance power distribution and clear protective earth paths. Benefit: improved short-circuit handling and safer maintenance practices. Application: high-density metering panels and feeder assemblies. Feature → Business Impact → Application: Pre-wired to DSO requirements and the option of accessory additions streamline installation, reduce on-site errors, and support scalable adaptation to changing metering needs. Application: projects with evolving metering schemes and retrofit plans. Feature → Business Impact → Application: Dimensions of 1950 H x 800 W x 350 D mm with 432 DIN units offer clear space planning and modularity for integrating meters, switchgear, and cross-connects. Benefit: efficient cabinet layout, easier service access, and future expansion. Application: new installations and upgrades in distribution boards and control rooms. Feature → Business Impact → Application: RoHS, REACH, SCIP, and WEEE compliance plus CE declarations ensure regulatory alignment and sustainable procurement. Benefit: reduced compliance risk, smoother audits, and support for green manufacturing programs. Application: enterprise-level equipment sourcing and long-term asset management.
Get a Quick Quote for a ABB 2CPX032977R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032977R9999?
Enquire Now
FAQs
The cabinet is designed as a fully assembled measurement and metering transformer cabinet with surface mounting and a pre-wired configuration. It aligns with EN 61439-1/2 standards, supports 415 V AC networks, and uses Cu busbars for reliable connections. It fits standard 432 DIN unit spaces, facilitating integration with existing meters, switchgear, and cross-connection layouts.
Key specs include a rated operational voltage of 415 V, rated current of 400 A (InA 494 A), 5 poles, and 432 DIN units. The enclosure provides IP54 protection and Class I grounding, with a powder-coated steel body (RAL 7035). These features support reliable metering and distribution under typical medium-voltage conditions.
Yes. It is specifically designed as a measurement and metering transformer cabinet, intended for internal use with transformer metering cross and pre-wired configurations. Its EN 61439-2 compliance, IP54 protection, and 5-pole TN-S earthing support safe, compliant operation in industrial plant environments and utility applications.
The cabinet carries CE declarations and EN 61439-1/2 compliance. It also adheres to RoHS and REACH requirements, with WEEE classification and SCIP registration, ensuring regulatory alignment, export readiness, and sustainability reporting for enterprise procurement.
The pre-wired configuration and DSO-ready design reduce on-site wiring time and commissioning risk, lowering labor costs and downtime. Durable powder-coated steel with IP54 protection minimizes maintenance intervals, while modular Cu busbars and standardized dimensions support future upgrades and easier spares management, delivering measurable total cost of ownership benefits.
