ABB 2CPX032978R9999 Measurement and metering transformer cabinet - IP54
Part Number: 2CPX032978R9999
Quick Summary
Measurement and metering transformer cabinet provides a compact enclosure for metering cross and switchgear in industrial power networks. This reduces commissioning time and minimizes on-site wiring errors, delivering consistent, repeatable performance. It complies with EN 61439-1, EN 61439-2, and CE marking, and provides IP54 protection with grounded Class I earth. Designed for rapid deployment, pre-wired for metering applications with 432 DIN units, powder coated in RAL 7035, ensuring robust, maintenance friendly operation. With 1 meter cabinet and 432 DIN unit capacity across 3 panel widths, it fits compact plant layouts and simplifies maintenance.
Product Information
Extended Description

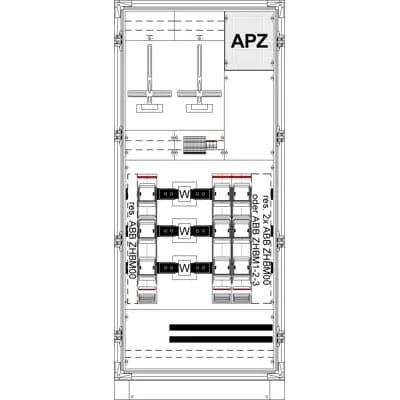

2CPX032978R9999 ABB: Measurement and metering transformer cabinet, series TriLine, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 420 A, Rated current of the assembly of switchgear and controlgear InA 504 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 2013 x 874 x 425, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 60 x 10 mm 5-pole, parting point before the current transformer Fuse disconnector NH3/630 A with double V-terminals, current transformer range CT mounting pad with CT rail, nickel plated, 250 x 40 x 10 mm, parting point after the current transformer 2 Fuse disconnector NH2/400 A, PE+N-busbar Cu 40 x 10 mm, Grid unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
420 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Single
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
432
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
d33b837b-9007-4d14-be95-47e6d5c88abf Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Width in Number of Modular Spacings
3
Product Net Width
874 mm
Product Net Height
2013 mm
Product Net Depth / Length
425 mm
Section Width
3
Product Net Weight
180.665 kg
Built-In Depth (t2)
425 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
187.892 kg
Replacement Product ID (NEW)
2CPX056079R9999
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4225Z
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Standards
DIN EN 61439-2
A major feature is EN 61439-2 compliance and IP54 protection with Class I grounding. This delivers safety, interoperability, and reduced procurement risk for panel builders. Application: substations and industrial facilities requiring certified meter enclosures. The cabinet uses a powder coated steel housing in RAL 7035. This results in corrosion resistance, long service life, and minimal upkeep in dusty or humid environments. Application: factory floors, harsh environments with limited climate control. Copper busbars 60 x 10 mm and a 5-pole TN-S lower connection space provide a robust, low impedance current path. Business impact: lower voltage drop, easier fault isolation, faster commissioning. Application: metering cross and distribution panels in medium voltage schemes. Pre-wired to DSO requirements reduces on-site wiring, testing and commissioning tasks. Application: new builds and retrofit projects seeking predictable timelines. Dimensions and DIN unit capacity include 2013 mm height, 874 mm width, 425 mm depth with 432 DIN units across 3 panel widths. Benefit: flexible integration within limited spaces and standardized meter layouts. Accessibility features include a single door and surface mounting with quick sealable connections for fast serviceability.
Get a Quick Quote for a ABB 2CPX032978R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032978R9999?
Enquire Now
FAQs
The cabinet measures 2013 mm high, 874 mm wide and 425 mm deep, with 3 panel widths and 432 DIN unit capacity. It provides one meter cabinet and one meter panel and a single door, facilitating straightforward replacement within standard meter room layouts.
It meets EN 61439-2 standards and is rated for 415 V maximum operating voltage and 420 A. With a 5-pole TN-S lower connection and IP54 protection, it ensures safe operation, proper earthing, and reliable metering deployment.
The IP54 rating and Class I grounded enclosure designate suitability for indoor or semi protected outdoor spaces, provided appropriate installation clearances are observed. Powder-coated steel further improves resistance to dust and moisture in challenging plant environments.
Pre-wired to DSO requirements reduces on-site wiring, testing and commissioning tasks. This enables faster project progression, improved consistency across installations, and reduced risk of human errors during field assembly.
The cabinet is CE marked with the EU Declaration of Conformity for meter panels, RoHS and REACH statements, and WEEE classification. ETIM and DIN EN 61439-2 compliance support regulatory audits and supplier qualification.
