ABB 2CPX032979R9999 Measurement and metering transformer cabinet - IP54
Part Number: 2CPX032979R9999
Quick Summary
The ABB 2CPX032979R9999 measurement and metering transformer cabinet securely houses metering gear for distribution transformers. Engineers face space constraints, inconsistent pre-wiring, and slow approvals when integrating switchgear; this cabinet addresses those challenges with a compact, fully assembled TriLine design. It is designed to EN 61439-1 and EN 61439-2, and carries CE conformity plus a robust IP54 protection class while remaining grounded (Class I). The result is safer operation, easier inspections, and fewer field faults. With pre-wired configuration and a durable powder-coated steel enclosure, it helps shorten commissioning times and reduces lifecycle costs, supporting reliable, scalable metering in utility and industrial networks. Secondary benefits include compatibility with Cu busbars and a 5P/576 DIN-unit architecture for future expansions.
Product Information
Extended Description

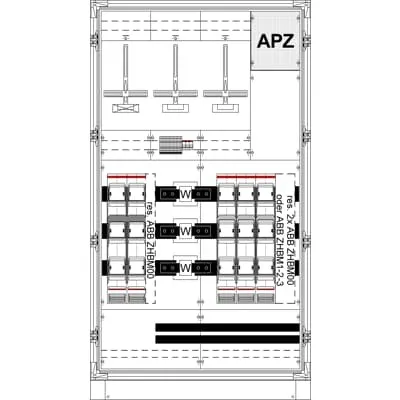

2CPX032979R9999 ABB: Measurement and metering transformer cabinet, series TriLine, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 585 A, Rated current of the assembly of switchgear and controlgear InA 800 A, Powder-coated, in RAL 7035, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 2013 x 1124 x 425, Earthing system TN-S, 5-pole, Number of reserve spaces 1, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 80 x 10 mm 5-pole, parting point before the current transformer 2 Fuse disconnector NH3/630 A interconnected, current transformer range CT mounting pad with CT rail, nickel plated, 250 x 40 x 10 mm, parting point after the current transformer 4 Fuse disconnector NH2/400 A, PE+N-busbar Cu 40 x 10 mm, Grid unit 12 GU, Overall height 8, panel width 4, Space units 576, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
585 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
4
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar
Enclosure Type
Measurement and metering transformer cabinet
Enclosure Type of Height
8
Mounting Type
Surface mounting
Door Type
Double
Surface Finishing
Powder-coated
Housing Material
Steel
Material
sheet steel
Accessories Available
Yes
DIN Place Units
576
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
29b0f087-c231-4008-b064-9a506b680daa Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP54
Protection Class
Grounded (Class I)
Width in Number of Modular Spacings
4
Product Net Width
1124 mm
Product Net Height
2013 mm
Product Net Depth / Length
425 mm
Section Width
4
Product Net Weight
242.052 kg
Built-In Depth (t2)
425 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
251.734 kg
Replacement Product ID (NEW)
2CPX056080R9999
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KS4226Z
ETIM 8
EC000262 - Meter cabinet equipped
ETIM 9
EC000262 - Meter cabinet equipped
eClass
V11.0 : 27142418
Object Classification Code
U
Standards
DIN EN 61439-2
The TriLine fully assembled enclosure with a meter cross reduces on-site wiring time and potential errors, accelerating commissioning in substations and facilities that rely on accurate metering. This translates to lower field labor costs and safer, more predictable project timelines. Pre-wired according to DSO requirements minimizes integration risk, speeding approvals and reducing commissioning delays. Copper busbars sized 80 x 10 mm support high current densities with reduced voltage drop, enabling reliable 5P busbar connections and efficient distribution. The durable powder-coated steel housing in RAL 7035 provides corrosion resistance and a clean, professional installation in harsh environments, improving maintenance cycles and long-term visibility of metering panels. Compatibility with 576 DIN units and a 4-panel width layout simplifies space planning and future upgrades.
Get a Quick Quote for a ABB 2CPX032979R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX032979R9999?
Enquire Now
FAQs
This cabinet is designed for surface mounting in indoor environments and is compatible with standard 5P switchgear layouts. It uses a TN-S earth system and a grounded Class I protection class, simplifying integration with common distribution architectures. Pre-wired conformance and a 576 DIN-unit footprint reduce the need for extensive on-site rewiring, accelerating retrofit projects and minimizing commissioning risk.
The enclosure complies with EN 61439-1 and EN 61439-2, ensuring proper assembly and protection in low-voltage switchgear assemblies. It carries CE conformity, IP54 protection, and a grounded Class I designation. RoHS and REACH declarations confirm material compliance, while the SCiP/CMRT information supports responsible sourcing. These certifications collectively support regulatory compliance and safer operation.
Pre-wired according to DSO requirements shortens field wiring time and reduces wiring faults, delivering faster commissioning and fewer on-site adjustments. The design includes a pre-assembled Metering cross and a ready busbar system, which minimizes mis-wiring risks and enhances overall reliability during startup and routine maintenance.
The cabinet measures 2013 mm in height, 1124 mm in width, and 425 mm in depth, with 576 DIN units and a 4-panel width layout. It supports a rated current of 585 A, a maximum operating voltage of 415 V, and a 5-pole configuration. The Cu busbars are 80 x 10 mm, and the enclosure mass is engineered for stable mounting in industrial rooms.
Yes. The powder-coated steel enclosure delivers durable protection in demanding environments, while the 576 DIN unit capacity and 4-panel width structure support future metering expansions. The 5P design and integrated pre-wiring also simplify subsequent upgrades, helping maintain performance with changing metering needs and regulatory requirements.
