ABB 2CPX033017R9999 Metering transformer board - IP2XC
Part Number: 2CPX033017R9999
Quick Summary
ABB 2CPX033017R9999 metering transformer board provides integrated power measurement and distribution for switchgear installations. Engineers often face tight layouts and complex compliance requirements, making assembly time-consuming and error-prone. It is designed to EN 61439-1/2 with IP2XC protection and CE conformity, supporting safe indoor operation in industrial environments. The enclosure uses pre-wired modules, copper busbars, and 5-pole configurations to simplify commissioning and ensure reliable fault containment. This meter panel solution fits meter cabinets and meter panels in scalable, modular electrical infrastructure, reducing maintenance downtime and total cost of ownership. By combining robust protection with compliant documentation, it ensures consistent performance across plant upgrades and new installations. Trustworthy integration with ABB's ecosystem helps streamline procurement, spare parts, and service support.
Product Information
Extended Description

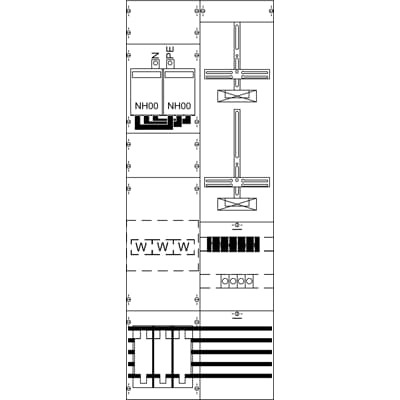

2CPX033017R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole and D01/1-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range Mounting plate with Single-CT with CT-rail, parting point after the current transformer 2 Fuse disconnector NH2/160 A (M8), primary wiring L1-L3 120 qmm, N+PE 120 qmm, Connection N+PE (M8), Note: Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
9d00e66c-37ff-45ea-a255-9bbac8da1f65 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
30.214 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
31.423 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction fĂĽr current transformer
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4219
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Fully assembled measurement and metering transformer board streamlines installation by delivering a pre-integrated module with pre-wired cross, CT rails, and fuse bases. This reduces on-site wiring time and field wiring errors, improving safety and commissioning confidence for indoor switchgear and meter cabinet projects. Cu busbar system 12 x 5 mm and five-pole TN-S earthing enable high current handling and reliable fault paths within a compact footprint, boosting system reliability and reducing heat buildup during peak operation. The enclosure provides 216 DIN places across a 500 mm width by 1350 mm height footprint, supporting scalable capacity and easy future expansion in metering cabinets and meter panels. RoHS and REACH declarations, along with SCIP and WEEE categorization, ensure regulatory alignment and easier procurement for plant-wide upgrades. Quick sealable connections, closed cover design, and pre-wired requirements minimize maintenance downtime and service complexity, delivering faster turnarounds and lower total cost of ownership.
Get a Quick Quote for a ABB 2CPX033017R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033017R9999?
Enquire Now
FAQs
The unit is designed as a fixed measurement and metering transformer board with a 5P configuration and TN-S earthing. It fits standard meter cabinets and meter panels with a 500 mm width, 1350 mm height, and 160 mm depth, incorporating 216 DIN places and a Cu busbar system for scalable, plug-and-play installation. Pre-wiring and DSO-aligned requirements simplify on-site assembly.
Key ratings include a maximum operational voltage of 415 V AC, a rated current of 210 A, and a 5-pole configuration. The enclosure is IP2XC protected and designed to EN 61439-1/2 standards, making it suitable for indoor industrial metering cabinets and meter panels with reliable switchgear integration.
Yes. With 5P at 210 A per panel and a pre-wired metering cross, the ABB 2CPX033017R9999 is designed for indoor, 3-phase metering cabinet applications in industrial environments. Its EN 61439-1/2 conformity and IP2XC protection ensure safe operation and compliant integration into 3-phase distribution networks.
The product complies with EN 61439-1/2, DIN EN 61439-2, and CE declarations. RoHS information confirms compliance with EU Directive 2011/65/EU and Amendment 2015/863, while REACH declarations indicate presence of substances >0.1 mass%. SCIP and WEEE classifications are provided for environmental and regulatory alignment.
Pre-wired modules, pre-installed CT rails, and fuse bases reduce on-site wiring errors and commissioning time, delivering faster project turnover and lower labor costs. The robust busbar system and modular 216 DIN-space layout support future expansion, improving lifecycle reliability and lowering total cost of ownership for meter cabinet upgrades and plant modernization.
