ABB 2CPX033018R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX033018R9999
Quick Summary
ABB 2CPX033018R9999 Metering Transformer Board delivers integrated measurement and metering for indoor distribution panels. Engineers often contend with wiring complexity and limited cabinet space, making accurate metering hard to achieve quickly. This fully assembled module is pre-wired and modular, reducing on-site assembly time and risk of miswiring. Key certifications include IP2XC protection, EN 61439-2 compliance for meter cabinets, and CE declarations, with RoHS and REACH conformity to simplify approvals. For utilities and industrial automation, the panel-ready design delivers reliable performance with scalable metering capacity. In short, it combines a robust enclosure with precise metering functionality to support faster deployment, easier maintenance, and compliant operation in demanding environments.
Product Information
Extended Description

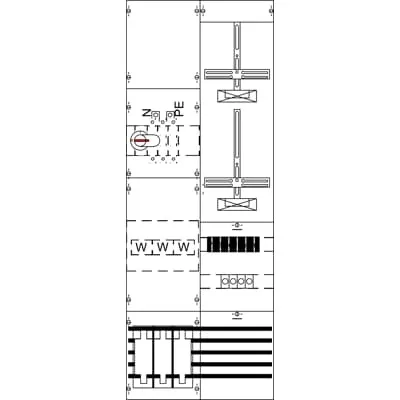

2CPX033018R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole and D01/1-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range Mounting plate with Single-CT with CT-rail, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 120 qmm, N+PE 120 qmm, Connection N+PE (M8), Note: Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
d71f2a21-6591-49ff-87ad-a313bb43c3f1 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
29.523 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
30.704 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction fĂĽr current transformer
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4220
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Pre-wired meter panel with TN-S grounding and a dedicated busbar system. Benefit: Reduces on-site wiring and misconnection risk, enabling faster commissioning and lower labor costs. Application: Ideal for indoor meter cabinets and distribution boards in utilities and manufacturing facilities. Feature: Large DIN footprint and defined dimensions (216 DIN units, 500 mm width, 1350 mm height, 160 mm depth). Benefit: Optimizes space planning and enclosure utilization, reducing the need for custom housings. Application: Fits standard indoor distribution panels in high-density metering sections. Feature: IP2XC protection with EN 61439-2 compliance and CE declarations. Benefit: Ensures safe operation in dry indoor environments while meeting global regulatory requirements. Application: Suitable for industrial automation and electrical infrastructure projects seeking compliant metering solutions. Feature: Mounted CT rail, 5-pole switch, NH fuse base and copper busbars (12 x 5 mm). Benefit: Enhances reliability of transformer cross connections and simplifies maintenance with modular components. Application: Metering and transformer cabinets requiring reliable cross-connection and protection. Feature: RAL 7035 light-gray enclosure with closed cover and quick-seal capabilities. Benefit: Durable, weather-resistant appearance and faster sealing for indoor use. Application: Meter panels in controlled environments where aesthetics and longevity matter.
Get a Quick Quote for a ABB 2CPX033018R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033018R9999?
Enquire Now
FAQs
The module is a pre-wired, single-assembly meter panel with a 5-pole switch, CT mounting, and NH fuse bases. It fits 216 DIN units and connects with L1-L3 120 qmm and N+PE 120 qmm while using TN-S grounding. This simplifies retrofit or new builds by reducing field wiring and enabling plug-and-play installation in standard indoor cabinets.
Key specs include a maximum operating voltage of 415 V, a rated current of 220 A, 5 poles, and IP2XC protection. It is EN 61439-2 compliant, CE-marked, and designed for indoor meter cabinets. Dimensions are 500 mm wide, 1350 mm high, and 160 mm deep, with a net weight around 29.5 kg.
Yes. The IP2XC enclosure, EN 61439-2 compliance, and CE declarations make it ideal for indoor dry environments in industrial automation. Its closed cover, RAL 7035 finish, and pre-wired metering cross simplify integration into existing control systems and utility cabinets.
The product carries IP2XC protection, EN 61439-2 compliance, and CE declarations. It also aligns with RoHS and REACH requirements, supporting regulatory compliance for European and global deployments, as well as WEEE categorization for large equipment disposal.
ROI benefits stem from reduced installation time due to pre-wiring and modular components, lower commissioning risk, and easier future expansion with CT rails and busbars. The robust enclosure and compliance reduce maintenance interruptions and help ensure long-term reliability in demanding facilities.
