ABB 2CPX033019R9999 Metering Board - IP2XC Enclosure
Part Number: 2CPX033019R9999
Quick Summary
ABB 2CPX033019R9999 Metering Board is a fully assembled metering transformer panel for indoor electrical distribution. Engineers often confront installation delays, space constraints, and complex wiring when deploying meter cabinets. This solution complies with EN 61439-1/2, carries IP2XC protection, and meets CE conformity for safe, certified operation. With pre-wired design and standards-aligned construction, it delivers faster commissioning and reliable metering data for utility-scale and industrial applications.
Product Information
Extended Description

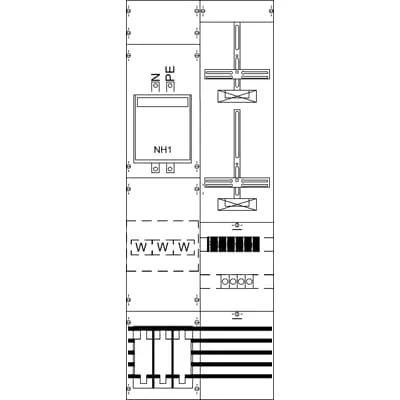

2CPX033019R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole and D01/1-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range Mounting plate with Single-CT with CT-rail, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring L1-L3 120 qmm, N+PE 120 qmm, Connection N+PE (M8), Note: Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
88c4c869-97d1-4786-bf21-75d8aa8fbd00 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
29.658 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
30.844 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction für current transformer
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4221
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
The panel arrives as a fully assembled measurement and metering transformer board with a pre-wired configuration, reducing on-site wiring time and human error while ensuring the unit is ready for immediate connection to the grid. The IP2XC enclosure protects internal components from dust and incidental contact, making it ideal for indoor electrical rooms and meter cabinets. Compliance with EN 61439-1/2 and CE markings confirms reliability for utility and industrial installations, simplifying procurement for regulated projects. Its 216 DIN place units, 5-pole design, and 1350 x 500 x 160 mm footprint support scalable meter cabinets with standardized busbar layouts, enabling modular expansion and easier maintenance. The RoHS and REACH declarations, along with WEEE classification, reflect responsible sourcing and end-of-life handling, reducing long-term sustainability risks. Quick-seal connections and a closed cover improve serviceability and reduce downtime.
Get a Quick Quote for a ABB 2CPX033019R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033019R9999?
Enquire Now
FAQs
Begin with a mounting plan for a solid wall or frame, ensuring space for the 1350 × 500 × 160 mm footprint. Secure the unit, connect N and PE conductors per the 120 qmm capacity, and align the pre-wired metering cross. Verify IP2XC protection before energizing and follow the mounting instructions for current transformer connections.
Rated operational voltage is up to 415 V with a rated current of 210 A. The enclosure accommodates 5 poles and 216 DIN places for meter cabinets, including space for one meter cabinet and one meter panel. Overall dimensions are 1350 mm height, 500 mm width, and 160 mm depth, with a net weight around 29.658 kg.
Yes. The design adheres to EN 61439-1/2 and carries a CE declaration of conformity for meter panels used in indirect or direct switching arrangements. It also aligns with RoHS and REACH obligations, ensuring material compliance and safe, regulatory procurement for both industrial and utility installations.
Ideal for indoor distribution and metering applications in industrial facilities and utility substations. It supports metering cross integration, pre-wired configurations for DSO requirements, and a compact footprint that fits standard meter cabinets and grid units, enabling scalable deployment and faster commissioning.
The panel carries a RoHS declaration and REACH information indicating substances above 0.1 mass percentage. WEEE classification identifies it as large equipment. Compliance extends to EU declarations and SCIP reporting, ensuring responsible material use, environmental responsibility, and correct end-of-life handling for procurement and fleet management.
