ABB 2CPX033022R9999 CT Meter Panel - IP2XC
Part Number: 2CPX033022R9999
Quick Summary
The ABB 2CPX033022R9999 CT Meter Panel provides a compact, ready-to-use solution for centralized metering in industrial control cabinets. This panel addresses the common challenge of integrating metering with limited space and complex wiring by delivering a fully assembled module designed for internal use. It carries important certifications and protections that boost safety and compliance, including EN 61439-1 conformity and IP2XC protection, ensuring reliable operation in challenging environments. The enclosure comes in a durable RAL 7035 light grey finish and supports RoHS and REACH declarations, aligning with modern sustainability and regulatory expectations. With 144 DIN places and quick sealable connections, it delivers business value through faster installations, easier maintenance, and scalable metering capabilities.
Product Information
Extended Description

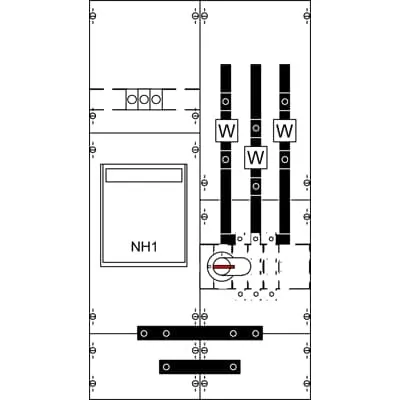

2CPX033022R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 200 A, in RAL 7035, dimensions in mm (H x W x D): 900 x 500 x 160, Earthing system TN-S, 5-pole, voltage path Fuse base element D01/3-pole sealable, parting point before the current transformer Fuse switch disconnector NH1/250 A, current transformer range CT mounting pad with CT rail 30 x 10 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring 120 qmm, PE+N Cu 30 x 5 mm, Connection N+PE (M8), Note: metering transformer sets to be installed in seperate housing. For DSO Cottbus cabinets have to be IP54. Incomer housing could be e.g. EK220, Grid unit 6 GU, Overall height 2, panel width 2, Space units 144, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Enclosure Type
CT meter panel
Enclosure Type of Height
2
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
144
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
900 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
21.365 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
22.22 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4046
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature → Business Impact → Application: The CT meter panel is fully assembled for internal use, reducing on-site assembly time and minimizing wiring errors, which translates to faster commissioning and lower labor costs on large projects. Application: Ideal for utility metering cabinets and distribution boards where rapid deployment and reliability are critical. Feature → Business Impact → Application: IP2XC protection and EN 61439-1 compliance provide enhanced safety and reliability in industrial environments, mitigating single-point failures and protecting sensitive metering circuits. Application: Suitable for indoor switchgear rooms, DSOs, and panel builds requiring robust protection ratings. Feature → Business Impact → Application: Dimensions of 900 x 500 x 160 mm and 144 DIN places maximize space efficiency while accommodating substantial metering hardware. Application: Fits compact switchboards and modular rack layouts with room for future expansion. Feature → Business Impact → Application: 5 poles and a 200 A rated current support multi-circuit metering with reliable fault isolation, reducing nuisance trips and improving overall system stability. Application: Metering sections in grid cabinets, EK220 infeed, and similar infrastructure. Feature → Business Impact → Application: RAL 7035 finish plus plastic covers offer field-friendly aesthetics and compatibility with standard electrical installations, easing retrofits and new builds alike. Application: Retrofit projects and new builds seeking consistent appearance and ease of maintenance. Feature → Business Impact → Application: Quick sealable connections streamline maintenance events and fault repairs, lowering downtime and service costs. Application: Routine inspections, transformer checks, and meter replacements in busy industrial plants. Feature → Business Impact → Application: RoHS and REACH declarations ensure regulatory compliance and safer material composition, reducing risk in procurement and end-of-life handling. Application: Compliance-driven procurement for Europe-based projects and customers with strict supplier requirements.
Get a Quick Quote for a ABB 2CPX033022R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033022R9999?
Enquire Now
FAQs
This meter panel is designed for internal mounting in standard switchboards, with dimensions of 900 by 500 by 160 millimeters and 144 DIN placements. Ensure TN-S grounding, IP2XC protection, and EN 61439-1 compliance. Plan for space around the unit for access to quick sealable connections and maintain proper clearances for heat dissipation and service access.
Important specs include a maximum operating voltage of 415 V AC, a rated current of 200 A, and a 5P configuration. Compatibility with indirect metering and metering transformer sets should be considered, noting that metering transformer sets are installed in a separate housing per the design. Ensure device compatibility with your existing busbar and TN-S earthing arrangement.
Yes. The panel is built for internal metering use, with IP2XC protection and EN 61439-1 compliance, making it suitable for DSOs and industrial environments. Its 144 DIN places offer ample space for meter circuitry, while the modular assembly supports expanding metering functionality without major redesigns.
The meter panel aligns with EN 61439-1 and CE declarations for meter panels, is RoHS compliant, REACH documented, and includes SCIP data and WEEE classification. These certifications support regulatory compliance for European installations and responsible end-of-life handling.
Maintenance benefits include quick sealable connections for fast fault isolation and straightforward component access, reducing downtime during inspections or upgrades. The 144 DIN placements enable scalable metering capacity, improving return on investment by supporting future expansion without costly rework, while the IP2XC rating and robust finish minimize wear in routine service.
