ABB 2CPX033034R9999 Measurement and metering transformer board - IP2XC
Part Number: 2CPX033034R9999
Quick Summary
Measurement and metering transformer board enables compact energy monitoring inside switchgear and meter cabinets. Engineers often face space constraints and wiring complexity when upgrading panels, leading to longer installation times and higher error risk. This ABB solution aligns with EN 61439-1/2 and CE requirements while delivering IP2XC protection, RoHS compliance, and REACH declarations for dependable performance in modern electrical infrastructure. The pre-wired configuration, TN-S earthing, and copper busbars simplify integration with existing busbar systems and DSOs' requirements. By consolidating functions into a single, organized module, it helps utilities and manufacturers shorten project lead times, reduce cabling errors, and achieve lower total cost of ownership over the equipment lifecycle.
Product Information
Extended Description

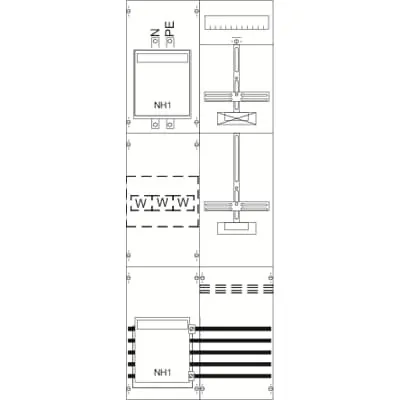

2CPX033034R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, TAE terminal box 1, Pre-wired according requirements DSO, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range Mounting plate for Block-CT, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring L1-L3 95 qmm, N+PE 95 qmm, Connection N+PE (M8), Note: Tets terminal, busbar screw terminal should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
25.288 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
26.3 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX133 | Mounting instruction net form meter board
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4227
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled meter board module with pre-wired components and a 5P, 2-story enclosure. Benefit: Reduces on-site assembly time and wiring errors, accelerating commissioning in new or upgraded meter cabinets. Application: Ideal for internal meter panels in substations and industrial plants requiring reliable, ready-to-install infrastructure. Feature: IP2XC protection and EN 61439-2 compliance. Benefit: Enhances safety and regulatory alignment for indoor electrical installations, lowering risk during operation and maintenance. Application: Suitable for controlled environments in utilities and manufacturing facilities. Feature: 216 DIN place units with 24 section width and 500 mm net width. Benefit: High-density, scalable cabinet capacity supports complex metering layouts and future expansion. Application: Meter cabinets and distribution boards with space planning considerations. Feature: Cu busbars 12 x 5 mm and integrated busbar system. Benefit: Low impedance pathways improve measurement accuracy and reliability, reducing heat and losses. Application: Pre-wired busbar configurations for robust power distribution. Feature: Pre-wired to DSO requirements and TN-S grounding. Benefit: Faster installation, fewer field wiring errors, and easier compliance with grid operator standards. Application: Utility-scale and industrial electrification projects demanding quick deployment. Feature: RAL 7035 light grey, closed cover enclosure. Benefit: Consistent facility aesthetics and durable protection, simplifying maintenance and inspections. Application: Enclosures in commerical/industrial power rooms and switchgear enclosures.
Get a Quick Quote for a ABB 2CPX033034R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033034R9999?
Enquire Now
FAQs
This meter board is a 1350 mm H x 500 mm W x 160 mm D enclosure with 216 DIN places designed for internal use in meter cabinets. Note that the Tets terminal and busbar screws should be ordered separately. It ships pre-wired to DSO requirements and uses a TN-S grounding system, simplifying site wiring and reducing installation time.
The board supports a maximum operational voltage of 415 V and a rated current of 210 A, with a 5-pole configuration. It uses IP2XC protection and complies with EN 61439-2, ensuring safe operation in indoor meter cabinets and distribution panels.
Yes. Designed for internal meter cabinets and cross-metering applications, it accommodates one meter cabinet and one meter panel, with pre-wired components and Cu busbars that facilitate reliable, space-efficient installations in utility substations and industrial power rooms.
The product adheres to EN 61439-1/2, CE declarations, RoHS compliance, REACH declarations, and SCIP listing. It is also categorized under WEEE as Large Equipment, supporting responsible disposal and regulatory alignment for B2B deployments.
Pre-wired modules reduce field wiring labor and commissioning time, lowering labor costs and risk of wiring errors. The robust IP2XC enclosure and copper busbars improve reliability and lifecycle performance, delivering faster time-to-value for utilities and industrial facilities and reducing maintenance intervals.
