ABB 2CPX033035R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX033035R9999
Quick Summary
ABB 2CPX033035R9999 is a measurement and metering transformer board for internal metering in industrial power distribution. Users often struggle with space constraints, wiring complexity, and ensuring regulatory compliance when integrating metering cabinets. This unit complies with EN 61439-1/2, offers IP2XC protection, and supports CE conformity, providing reliable performance in demanding environments. Designed for quick installation in standard meter cabinets, it helps reduce field labor while delivering robust energy management capabilities and scalable enclosure options for growing metering needs.
Product Information
Extended Description

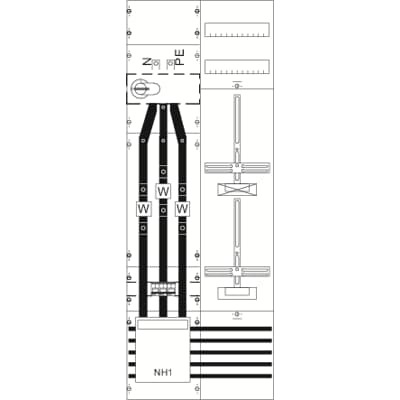

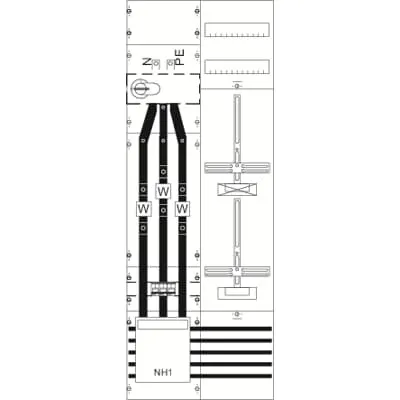

2CPX033035R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Secundary wiringset up to metering device, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 Cu 30 x 5 mm, N+PE 120 qmm, Connection N+PE (M8), Note: Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
25.025 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
26.026 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4231
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Enclosure and protection is IP2XC with a closed cover and RAL 7035 light grey finish, delivering enhanced safety and durability in harsh plant environments while presenting a professional, code-compliant appearance. The electrical ratings of 415 V and 220 A, combined with a 5-pole configuration and Cu busbars (12 x 5 mm), support reliable distribution for medium- to high-load metering applications, reducing the risk of overloads and improving overall system efficiency. The design is a fully assembled module with a Metering cross and a 216 DIN place footprint, enabling faster commissioning and easier integration with existing meter panels and cross connections. RoHS and REACH declarations ensure regulatory compliance across European markets, simplifying procurement and disposal. Detailed dimensions (1350 x 500 x 160 mm) and 25.025 kg weight enable precise space planning in switchgear rooms, while TN-S earthing and a robust N+PE wiring path support safe, compliant operation. Accessories are available separately, and busbar terminals can be ordered as needed, offering flexible installation and future-proof expansion for metering infrastructure.
Get a Quick Quote for a ABB 2CPX033035R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033035R9999?
Enquire Now
FAQs
This unit is designed for internal use within standard meter cabinets and switchgear assemblies. It supports 216 DIN unit capacity and a footprint of 1350 x 500 x 160 mm, with N+PE connections, TN-S earth, and a 12x5 mm Cu busbar system. For compatibility, verify space within the cabinet, the required busbar terminations, and the ability to mount the 5P, 1 meter panel assembly alongside the metering device cross.
Key specs include a rated operational voltage of maximum 415 V AC, a rated current of 220 A, a 5-pole configuration, and 1 meter cabinet with 1 meter panel capacity. The enclosure is IP2XC protected, and the assembly supports the meter cross and CT mounting pads, ensuring accurate metering and safe operation within EN 61439-1/2 standards.
Yes. The product complies with EN 61439-1/2, carries CE conformity, and features IP2XC protection. It is RoHS compliant with EU Directive 2011/65/EU and amendments, REACH compliant with declarations for substances over 0.1 mass percentage, and WEEE/B2B guidelines, making it suitable for European energy distribution installations.
The fully assembled module with a metering cross minimizes field labor and installation time, reducing commissioning costs. RoHS/REACH compliance simplifies procurement and disposal, while modular busbar and accessory compatibility minimizes future upgrades. The compact footprint and 216 DIN capacity help optimize space, improving overall system efficiency and reducing long-term maintenance complexity.
Procurement should emphasize IP2XC protection, EN 61439-2 compliance, and CE conformity to ensure safe operation in industrial environments. RoHS and REACH declarations support regulatory compliance, while WEEE categorization and B2B marketing guidance align with European product stewardship requirements. Consider the dimension and weight (25.025 kg net) for handling and installation planning.
