ABB 2CPX033039R9999 Measurement and metering transformer board - IP2XC
Part Number: 2CPX033039R9999
Quick Summary
Measurement and metering transformer board from ABB provides compact, integrated power monitoring for switchgear cabinets. Many buyers struggle with space constraints, wiring complexity, and maintaining compliance across EN 61439-1/2 while scaling operations in modern plants and high-variance environments. The design aligns with EN 61439-1/2, CE conformity, and IP2XC protection, helping you simplify installation and improve safety. With pre-wired requirements, Cu busbars, and scalable 216 DIN-unit layouts, it reduces installation time and lifecycle costs while ensuring reliable metering integration. Designed for modularity and serviceability, it supports rapid maintenance and future expansion to cover additional metering channels for reliable metering integration across complex industrial networks.
Product Information
Extended Description

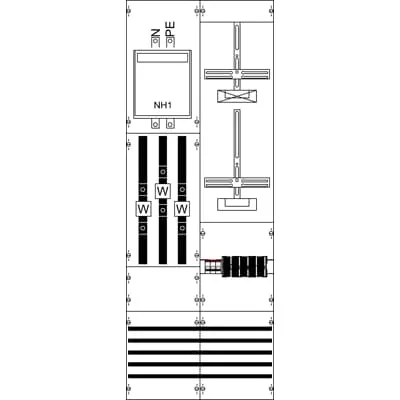

2CPX033039R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, current transformer range CT mounting pad with CT rail 30 x 5 mm, primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Note: Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
24.799 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
25.791 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4238
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Integrated pre-wired transformer board with Metering cross. Impact: Reduces wiring errors and accelerates installation in control panels. Application: Ideal for internal meter cabinets and industrial switchgear assemblies. Feature: IP2XC protected enclosure with closed cover design. Impact: Improves ingress protection and operator safety in factory environments. Application: Suitable for harsh or cluttered industrial spaces where metering panels operate. Feature: EN 61439-1/2 compliance and CE conformity. Impact: Simplifies regulatory approvals and ensures consistent performance. Application: Meter panels and distribution boards in compliant industrial deployments. Feature: Cu busbars 12x5 mm and 216 DIN unit footprint. Impact: Enhances current paths and packing density, reducing busbar junctions. Application: High-current metering sections within compact enclosures. Feature: RoHS/REACH compliance and WEEE alignment. Impact: Supports sustainable manufacturing and European market access. Application: Europe-based automation and electrical infrastructure projects. Feature: Quick-sealable connections and pre-wired components. Impact: Speeds field assembly and minimizes commissioning risk. Application: Pre-wired meter cabinets and rapid deployment projects.
Get a Quick Quote for a ABB 2CPX033039R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033039R9999?
Enquire Now
FAQs
This unit is designed for internal meter cabinets and distribution boards. It uses a 5-pole enclosure, 216 DIN units, and Cu busbars, enabling straightforward integration with compatible panels. Before installation, verify DIN spacing and busbar terminations, confirm IP2XC suitability, and ensure pre-wired connections align with your control gear layout.
Key specs include a maximum operating voltage of 415 V, rated current of 220 A, a 5P configuration, IP2XC protection, and EN 61439-1/2 compliance. The enclosure supports 216 DIN units and 2 meter spaces, making it suitable for internal meter cabinets and metering cross assemblies in industrial plants.
Yes. The product carries CE conformity and RoHS compliance under EU Directive 2011/65/EU with Amendment 2015/863, plus REACH declarations. ABB provides the EU Declaration of Conformity for meter panels, ensuring regulatory alignment in European installations and a clear path to market across compliant facilities.
Pre-wired meter boards reduce wiring errors and commissioning time by delivering ready-to-connect metering cross connections and busbar pathways. This minimizes现场 wiring complexity, shortens project schedules, and lowers field debugging needs, which is especially beneficial in dense switchgear assemblies or multi-panel meter cabinets.
The ROI stems from faster commissioning, reduced labor costs, and lower risk of wiring mistakes during handover. The modular, pre-wired design also eases future expansion and maintenance, delivering lower lifecycle costs and higher uptime in high-demand industrial facilities.
