ABB 2CPX033042R9999 Metering transformer board - IP2XC
Part Number: 2CPX033042R9999
Quick Summary
ABB 2CPX033042R9999 Metering transformer board is designed for indoor metering applications and compact panel assemblies. This pre-assembled module tackles common pain points like wiring complexity and long commissioning times by delivering a ready cross-connected solution. The enclosure carries EN 61439-1/2 compliance, IP2XC protection, and CE conformity, delivering safer operation and regulatory assurance in harsh industrial environments. RoHS and REACH declarations support responsible material use and supplier transparency, while the 216 DIN unit footprint and 24 modular spacings enable scalable deployments. With copper busbars and a dedicated transformer meter spaces layout, it simplifies installation and future metering upgrades, reducing field errors and improving total cost of ownership for utility, process, and data-center applications.
Product Information
Extended Description

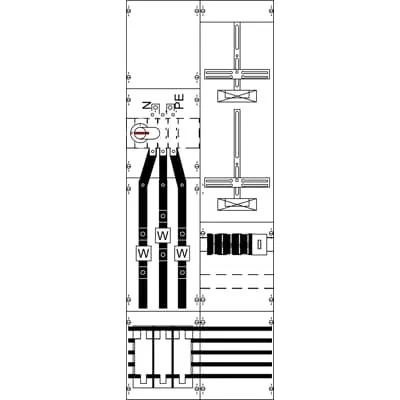

2CPX033042R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, TAE terminal box 1, Secundary wiringset up to metering device, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring 120 qmm, Connection N+PE (M8), Note: Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
22.601 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
23.505 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4247
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled measurement and metering transformer board with Metering cross. Benefit: Speeds up commissioning and reduces on-site wiring errors, enabling faster project timelines in indoor power distribution and metering zones. Application: Ideal for internal meter cabinets in factories, data centers, and utility rooms. Feature: EN 61439-1/2 compliance, IP2XC protection, and CE conformity. Benefit: Delivers proven safety, reliability, and regulatory alignment across European installations, minimizing compliance risk and post-installation adjustments. Application: Suitable for indoor distribution panels and metering installations requiring robust protection. Feature: Large footprint with 1350 mm height, 500 mm width, 160 mm depth; 216 DIN units; 24 section width. Benefit: Provides a scalable, modular platform that fits medium-to-large metering assemblies while maintaining a compact overall footprint. Application: Enables staged growth of metering capacity without redeploying existing enclosures. Feature: Cu busbars 12 x 5 mm with 5-pole configuration; CT mounting pad 170 x 30 x 5 mm; N+PE (M8) connections. Benefit: improves electrical performance with low-resistance paths and simplifies wiring topology, reducing losses and commissioning time. Application: Metering cross units and switchgear where precise current paths are critical. Feature: RoHS, REACH, SCIP, and WEEE compliance; CE declaration. Benefit: Supports regulatory audits, sustainable material use, and end-of-life planning, lowering long-term risk. Application: Global deployments needing environmental and safety governance across supply chains.
Get a Quick Quote for a ABB 2CPX033042R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033042R9999?
Enquire Now
FAQs
This panel is designed for indoor use with TN-S earthing, a 5-pole arrangement, and N+PE (M8) connections. It features a 216 DIN footprint and 24 modular spacings, plus Cu busbars and a CT rail to simplify wiring and mounting. Plan for PLX clearance, mounting height, and access to meter devices to ensure straightforward serviceability.
Key ratings include a maximum operational voltage of 415 V AC, nominal current of 220 A, and InA up to 222 A. It carries IP2XC protection, EN 61439-1/2 compliance, and CE conformity, making it suitable for indoor metering and distribution applications in industrial environments.
Yes. The board is designed with a Metering cross, secondary wiringset up to metering devices, and dedicated transformer meter spaces. It supports copper busbars, a 5-pole layout, and a ready wiring topology that reduces field wiring complexity while ensuring reliable metering connections.
The unit complies with DIN EN 61439-2, CE declarations, RoHS (EU 2011/65/EU and amendment 2015/863), REACH (substances >0.1 mass%), SCIP, and WEEE classification. These declarations support regulatory audits, supply-chain transparency, and responsible end-of-life handling.
Expect faster deployment due to pre-assembled wiring, reduced field wiring errors, and safer commissioning with IP2XC protection. The 216 DIN footprint and 24-section width support scalable metering layouts, while copper busbars and CT rails improve current-path efficiency. Overall, this translates to lower installation labor, easier maintenance, and improved total cost of ownership for industrial metering projects.
