ABB 2CPX033044R9999 Metering Transformer Panel - IP2XC
Part Number: 2CPX033044R9999
Quick Summary
Measurement and metering transformer board enables precise, reliable metering integration in switchgear for industrial facilities. Engineers often face wiring complexity, limited space, and lengthy commissioning; this module simplifies installation and reduces field errors. Built to EN 61439-2 with IP2XC protection and CE conformity, it also aligns with RoHS and REACH requirements. Designed for panel builders and DSOs, it supports 216 DIN units, a 5-pole busbar system, and a modular layout that makes procurement predictable. By standardizing interfaces and materials, it speeds up project timelines and lowers total cost of ownership while ensuring ongoing compliance and traceability.
Product Information
Extended Description
2CPX033044R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range Mounting plate for Block-CT, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 95 qmm, N+PE 95 qmm, Connection N+PE (M8), Note: Secundary wiringset to be used from DSO, busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
22.814 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
23.726 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

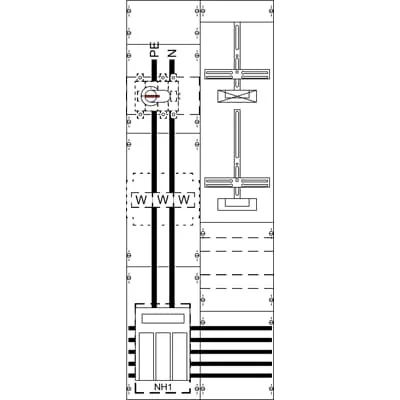

Circuit and distribution diagram KA4249
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled measurement and metering transformer board with Metering cross; Business Impact: reduces on-site wiring, minimizes error-prone hand assembly, and accelerates commissioning; Application: internal meter cabinets in switchgear and distribution panels. Feature: IP2XC protection with CE conformity and EN 61439-2 compliance; Business Impact: ensures safe operation in indoor environments and streamlines regulatory approvals; Application: panel assemblies in industrial facilities. Feature: Large, rigid enclosure with 1350 x 500 x 160 mm footprint and 216 DIN units; Business Impact: optimizes space budgeting, simplifies alignment with existing busbars and mounting rails; Application: meter cabinets for utility-grade and industrial metering. Feature: Copper busbars 12 x 5 mm, 5-pole wiring, and Block-CT mounting plate; Business Impact: enhances electrical performance and upgrading flexibility; Application: robust power distribution inside meter panels. Feature: RoHS and REACH compliant components with WEEE consideration; Business Impact: reduces lifecycle risk and supports sustainable procurement; Application: compliant manufacturing and end-of-life handling. Feature: Quick-sealable connections and plastic covers; Business Impact: accelerates installation and reduces commissioning time; Application: field deployment in controlled environments with tight schedules. Note: Secondary wiringset to be used from DSO and busbar terminals ordered separately; Business Impact: gives designers control over system integration while maintaining modularity; Application: integration with customer-specific DSOs and grid configurations.
Get a Quick Quote for a ABB 2CPX033044R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033044R9999?
Enquire Now
FAQs
The unit is designed as a fully assembled meter board with a Metering cross that fits internal meter cabinets and 5-pole busbar configurations. It complies with EN 61439-2 and IP2XC protection, and accepts the standard 216 DIN unit footprint, with TN-S earthing and 12 x 5 mm Cu busbars. Note that secondary wirings are DSOs’ responsibility and busbar terminals are ordered separately.
Key specs include a maximum operational voltage of 415 V, a rated current of 220 A (InA 222 A), and a 5-pole arrangement. It supports one meter cabinet and one meter panel, uses 216 DIN placement units, and accommodates Cu busbars 12 × 5 mm. The enclosure is IP2XC and adheres to DIN EN 61439-2 standards.
Yes. It is designed for internal metering within switchgear and meter panels in both utility-scale and industrial environments. The enclosure uses a robust RAL 7035 light grey finish, CE conformity, RoHS/REACH compliance, and WEEE considerations, ensuring regulatory compliance across industrial deployments.
The product features CE conformity, RoHS compliance (EU 2011/65/EU and 2015/863), REACH declarations, and a SCIP registration. It also aligns with WEEE requirements and DIN EN 61439-2 standards, reinforcing safety, environmental responsibility, and regulatory compliance for industrial metering panels.
Plan for a TN-S earthing scheme with a 5-pole arrangement, 216 DIN units, and Cu busbars 12 × 5 mm. Note that the secondary wiringset is DSOs’ responsibility and busbar terminals must be ordered separately. The design includes quick-sealable connections and plastic covers for efficient, reliable assembly in factory or field installations.
