ABB 2CPX033045R9999 Meter Board - IP2XC, EN61439-2
Part Number: 2CPX033045R9999
Quick Summary
ABB 2CPX033045R9999 is a measurement and metering transformer board for internal meter cabinets. It reduces installation time and errors by delivering a fully assembled module with a dedicated metering cross and tidy wiring paths. The enclosure meets IP2XC protection and EN61439-1/2, with CE conformity and RoHS/REACH compliance to support regulated installations. For planners, the combination of scalable meter cabinets and clear documentation translates to faster procurement, easier installation, and predictable performance. This combination supports compliance with EN 61439-2, CE marking, IP protection, plus RoHS and REACH declarations. In procurement conversations, the module's robust build reduces supplier risk and warranty exposure while enabling scalable metering layouts.
Product Information
Extended Description

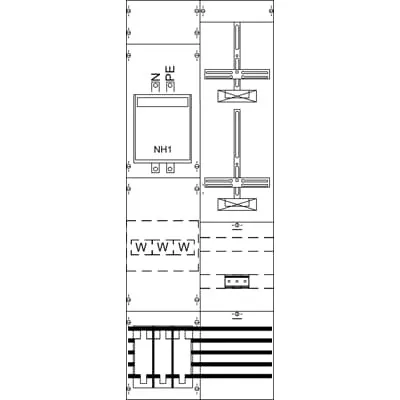

2CPX033045R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, Secundary wiringset till test terminal and fuse switch disconnector D01, voltage path Fuse switch disconnector D02/3-pole complete with fuseholder D01, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, current transformer range Mounting plate for Single-CT with CT-rail, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring 120 qmm, Connection N+PE (M8), Note: Incomer right above incomer housing on the side e.g. EK230, busbar terminals to ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
29.162 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
30.328 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction für current transformer
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4237
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled module with a dedicated metering cross and pre-arranged wiring paths. Benefit: Accelerates commissioning and reduces wiring errors, enabling faster project delivery and easier maintenance. Application: Ideal for internal meter cabinets and meter panels in industrial plants where space and accuracy matter. Feature: IP2XC protection and EN 61439-2 compliance. Benefit: Enhances safety, reliability, and regulatory alignment across compliance-driven projects. Application: Suitable for harsh industrial environments and condition monitoring installations requiring robust enclosure standards. Feature: Cu busbar system with 12 x 5 mm conductors and a 5-pole layout plus a mounting plate for Single-CT with CT-rail. Benefit: Provides low-impedance, reliable current paths and simplified CT integration, reducing loss and measurement drift. Application: Metering and switchgear assemblies with precise cross-connection needs. Feature: Large DIN-rail footprint with 216 DIN places and a 500 mm width, 1350 mm height, 160 mm depth, finished in RAL 7035. Benefit: Supports high-capacity metering configurations and consistent aesthetics across panels, improving project planning and identifiability. Application: Comprehensive meter panels for multi-point monitoring and data collection. Feature: Quick-seal connections and TN-S earthing with busbar terminals (ordered separately). Benefit: Speeds field assembly while preserving safety and service continuity, reducing commissioning risk. Application: Installation in ready-to-wire environments where rapid integration is crucial. Feature: RoHS, REACH, WEEE, and SCIP declarations included. Benefit: Minimizes regulatory risk and supports sustainable procurement through verified compliance. Application: Procurement processes and OEM handover for compliance-heavy projects.
Get a Quick Quote for a ABB 2CPX033045R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033045R9999?
Enquire Now
FAQs
Begin by verifying the TN-S earth scheme and ensuring the enclosure space accommodates 216 DIN units and the 500x1350x160 mm footprint. Use the mounting plate for Single-CT with CT-rail to align current transformers, then route primary wiring via the predefined channels. The module’s quick-seal connections simplify assembly, reducing field wiring errors and installation time.
The board complies with EN 61439-1/2 for switchgear and controlgear assemblies, and carries IP2XC protection. It also supports CE conformity, RoHS compliance, REACH declarations, WEEE categorization, and SCIP registration, ensuring regulatory alignment across European markets and responsible end-of-life management.
Yes. The enclosure is designed for internal metering with transformer integration, featuring a 5-pole layout and mounting provisions for meter panels. It supports cross-connection for meter and transformer circuits and includes a dedicated space for the transformer metering cross, enabling accurate phase-by-phase metering within a compact footprint.
The unit has a product net height of 1350 mm, width of 500 mm, and depth of 160 mm, with 216 DIN places. It is finished in RAL 7035 light grey and uses a closed cover. These dimensions facilitate planning for large internal meter cabinets and ensure compatibility with existing enclosure layouts.
The module reduces commissioning risk and total installation time by providing a fully assembled, pre-wired solution with a metering cross. Its EN61439-2 and IP2XC compliance minimizes regulatory and safety concerns, while RoHS, REACH, WEEE, and SCIP declarations support sustainable procurement and long-term lifecycle cost savings for industrial deployments.
