ABB 2CPX033046R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX033046R9999
Quick Summary
ABB 2CPX033046R9999 measurement and metering transformer board enables compact, accurate metering in switchgear panels. Engineers frequently wrestle with wiring complexity and space constraints in meter cabinets. This unit is EN 61439-1/2 compliant, IP2XC protected, and CE-marked for meter panels, with RoHS and REACH declarations for modern energy systems. Its pre-wired configuration and modular 3-width design streamline installation, reduce field wiring errors, and improve maintenance cycles. In practice, it translates to faster commissioning, lower downtime, and improved safety across utility substations and industrial plants. As a practical option, it complements ABB enclosure and busbar offerings, supporting scalable metering across multiple panels while maintaining consistent aesthetics and performance.
Product Information
Extended Description

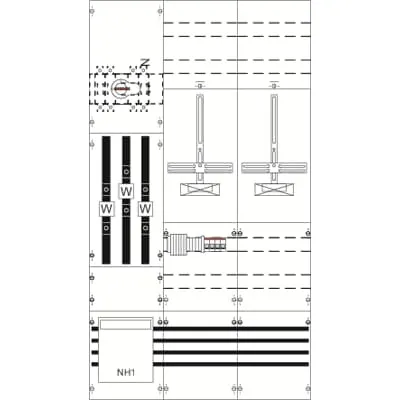

2CPX033046R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 750 x 160, Earthing system TT, 4-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 4 low voltage path switches B6/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 4-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 250 A / 4-pole (M8), primary wiring L1-L3 Cu-Busbar 25 x 5 mm, N 120 qmm, Connection N+PE (M8), Note: metering transformer sets to be installed in seperate housing, Grid unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
1-story
Number of Poles
4P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
3
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 4 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
324
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
36
Product Net Width
750 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
3
Product Net Weight
28.583 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
29.726 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4217
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled module with Metering cross for internal use → Business Impact: Reduces field assembly time and wiring errors, boosting project speed and reliability. Application: Ideal for new switchgear installations and retrofit metering in industrial facilities. Feature: IP2XC protection and EN 61439-1/2 compliance → Business Impact: Enhanced safety and regulatory alignment, minimizing risk during commissioning and operation. Application: Utility and commercial power distribution panels requiring robust protection. Feature: 415 V nominal voltage and 220 A rated current with 4P configuration → Business Impact: Supports medium-power metering without oversizing, lowering material cost and improving panel density. Application: Industrial plants and DSOs demanding compact yet capable meter boards. Feature: Pre-wired per DSO requirements and Cu busbars 12 x 5 mm → Business Impact: Quicker installation, reduced wiring errors, improved conductive performance. Application: Factory floor switchgear and substation enclosures. Feature: 324 DIN spaces, modular 3-width design, and closed cover in light grey plastic (RAL 7035) → Business Impact: Predictable layout, easy maintenance access, and consistent aesthetics. Application: Large-scale meter cabinet campaigns and standardized panel builds. Feature: RoHS, REACH, SCIP and WEEE compliance → Business Impact: Lower environmental risk and streamlined regulatory reporting. Application: Global deployments with strict material controls. Insight: The design aligns with modern energy-infrastructure practices, enabling scalable metering across multiple panels while preserving space efficiency and serviceability.
Get a Quick Quote for a ABB 2CPX033046R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033046R9999?
Enquire Now
FAQs
This meter board is designed for straightforward mounting within switchgear cabinets, featuring a 1350 mm high, 750 mm wide, 160 mm deep footprint and a closed cover. It uses TT earthing, Cu busbars, and pre-wired connections per DSOs requirements, reducing on-site wiring time and minimizing commissioning risk. Ensure adequate clearance for service access and proper alignment with adjacent panels to maintain IP2XC protection and safe operation.
Key specs include a maximum operational voltage of 415 V, rated current of 220 A, 4 poles, and a 4-pole switch with NH1/250A. It uses Cu busbars (12 x 5 mm) and provides 4 low-voltage paths. Protection is IP2XC, and the assembly conforms to EN 61439-2, supporting safe, reliable metering in medium-power applications.
Yes. It is pre-wired to DSOs requirements and offered in a compact 3-wide DIN footprint with 324 DIN spaces, enabling scalable, standardized installations across multiple panels. Its modular design supports efficient maintenance and easy integration with ABB enclosure systems, making it well-suited for both utility substations and large industrial facilities.
The product complies with EN 61439-1/2, carries CE conformity, and supports RoHS and REACH declarations. WEEE categorization is 4. Large Equipment, with SCIP registration for Germany. These certifications help ensure safety, environmental responsibility, and regulatory alignment across global deployments.
Pre-wired DSOs-compliant wiring and a modular design reduce field wiring errors and commissioning time, lowering downtime during maintenance. The IP2XC protection and robust busbar construction improve long-term reliability, while standardized dimensions and DIN space allocation simplify spare parts planning, contributing to lower total cost of ownership over the life of the installation.
