ABB 2CPX033054R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX033054R9999
Quick Summary
ABB 2CPX033054R9999 Metering transformer board is a compact, integrated solution for internal metering and transformer cross connections within switchgear assemblies. Engineers often face tight space, complex wiring, and lengthy commissioning; this fully assembled module mitigates installation risk and accelerates start-up. The unit aligns with EN 61439-1/2 and carries IP2XC protection, CE conformity, and RoHS/REACH declarations, ensuring safety and regulatory compliance. With a 216 DIN unit footprint, copper busbars, and a 5-pole design, it enables scalable metering layouts while reducing lifecycle costs and maintenance effort, making it an efficient choice for modern industrial automation and electrical infrastructure projects.
Product Information
Extended Description
2CPX033054R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range Mounting plate for Block-CT, parting point after the current transformer Main circuit breaker (Variable range 175 A to 250 A), primary wiring 95 qmm, Note: Secundary wiringset to be used on site, busbar terminals may be required, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
22.879 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
23.794 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

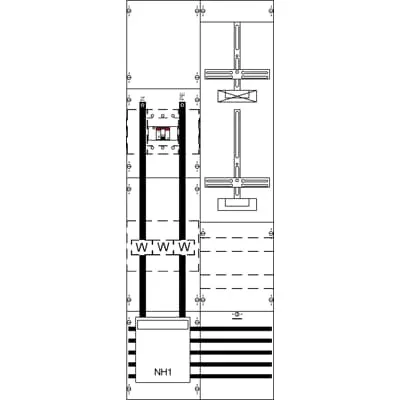

Circuit and distribution diagram KA4254
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Integrated enclosure with copper busbars (12 x 5 mm) reduces field wiring and potential fault points, improving reliability in metering applications. This feature translates to shorter installation times and lower commissioning risk in new builds or retrofits. The system's IP2XC protection and EN 61439-1/2 compliance deliver regulatory assurance and safer operation in harsh industrial environments. The 5-pole TN-S earthing configuration supports robust main circuit protection and simplifies wiring schemes, lowering the risk of misconnection during panel assembly. Two DIN widths and a 216-unit DIN footprint offer flexible layout options for meter cabinets, enabling scalable metering configurations without retooling. Quick sealable connections and a closure-friendly design minimize service interruptions during maintenance and end-of-life replacements, reducing total cost of ownership. RoHS and REACH declarations, alongside WEEE compliance, simplify regulatory reporting and sustainability goals. The board is suited for internal use in meter panels, streamlining procurement and reducing procurement-to-install time in plant upgrades.
Get a Quick Quote for a ABB 2CPX033054R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033054R9999?
Enquire Now
FAQs
The installation assumes internal mounting within a suitable enclosure, using the 216 DIN unit footprint and 2 width options. Connect to a TN-S earth, place main wiring through the 5-pole configuration, and implement the Cu busbars (12 x 5 mm). Ensure IP2XC protection is maintained and follow EN 61439-1/2 requirements for safe operation and future scalability.
Rated operational voltage is maximum 415 V, rated current is 200 A, and the enclosure includes a 5-pole arrangement for one meter cabinet and one meter panel. The product uses Cu busbars, supports a main circuit breaker in the 175–250 A range, and is IP2XC protected, conforming to EN 61439-2 standards.
Yes. The unit complies with EN 61439-1/2 and bears CE conformity along with RoHS and REACH declarations. This ensures safe performance, regulatory alignment, and sustainable material usage for metering panels and related electrical infrastructures.
This board is ideal for internal use in half-indirect metering panel configurations, providing a ready-to-install metering cross, transformer space, and busbar assembly. It supports scalable metering layouts for industrial facilities, data centers, and utilities where compact, compliant, and serviceable meter panels are required.
Plan for periodic inspection of quick-seal connections and cover integrity, ensure busbar terminations remain tight, and verify the 216 DIN unit arrangement remains within design tolerances. Consider RoHS/REACH declarations for material reuse, and adhere to WEEE guidelines for end-of-life disposal to minimize environmental impact.
