ABB 2CPX033067R9999 Measurement & metering transformer board - IP2XC
Part Number: 2CPX033067R9999
Quick Summary
ABB 2CPX033067R9999 Measurement and metering transformer board enables compact, pre-wired meter panels for distribution boards in industrial and utility applications. In many projects, installation speed and wiring accuracy are critical bottlenecks, and a fully assembled module with pre-wired connections directly addresses these pain points. The solution carries CE declarations and RoHS/REACH commitments, and is designed to EN 61439-1/2 compliant with IP2XC protection for safe internal use. With standardized dimensions, copper busbars, and clearly defined mounting options, it supports faster commissioning, predictable space planning, and scalable energy metering infrastructure across facilities.
Product Information
Extended Description
2CPX033067R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range Mounting plate for Single-CT with CT-rail, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Note: Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
23.389 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
24.324 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

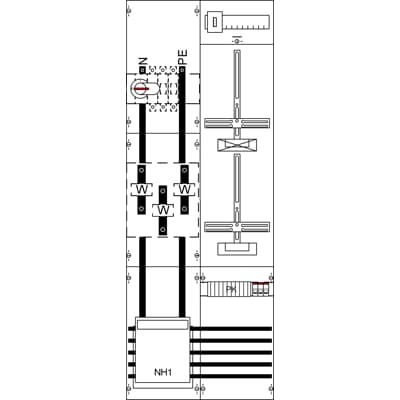

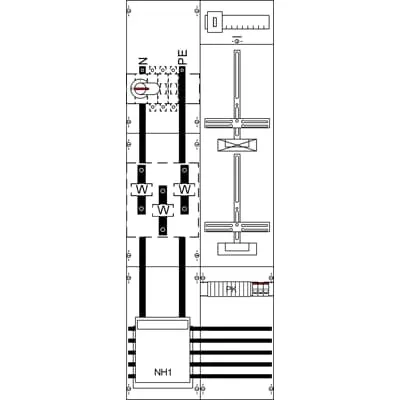

Circuit and distribution diagram KA4267
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Fully assembled module with Metering cross and pre-wired connections reduces on-site assembly time and wiring errors, delivering faster project turnover and lower commissioning risk. This translates to measurable lifecycle savings in utility-scale installations and industrial plants, where meter panels must align with internal busbar layouts and space planning. IP2XC enclosure protection and EN 61439-1/2 compliance provide safer operation and regulatory confidence, enabling installation in internal spaces without concessions. The copper busbar system (Cu busbars 12 x 5 mm) and Cu-Busbar N+PE (20 x 5 mm) support robust current paths and straightforward future upgrades, simplifying maintenance. RoHS and REACH declarations, along with SCIP and CMRT transparency, reduce regulatory risk and strengthen supplier integrity. The compact footprint (216 DIN units, 24 section width) and pre-wired design help installers plan layouts more accurately, cut field wiring complexity, and accelerate commissioning for energy metering projects.
Get a Quick Quote for a ABB 2CPX033067R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033067R9999?
Enquire Now
FAQs
This meter board is designed for internal use in distribution panels and complies with EN 61439-1/2, featuring IP2XC protection. It includes a 5-pole configuration, TN-S earthing, and a copper busbar system (12 x 5 mm) with N+PE (20 x 5 mm). Pre-wired connections aligned to DSO requirements reduce field wiring and commissioning time, making it compatible with standard switchgear layouts and meter cabinets.
Key performance specs include a maximum operational voltage of 415 V AC and a rated current of 200 A, with 5 poles and one meter cabinet/panel each. The unit offers 216 DIN places, a compact 500 mm width and 1350 mm height, and an IP2XC enclosure, ensuring reliable metering for internal panel installations while supporting 3-phase metering configurations.
Yes. The product carries RoHS information and status per EU Directive 2011/65/EU and Amendment 2015/863, a REACH declaration with notes of substances >0.1 mass percentage, SCIP registration, and a CE declaration of conformity for meter panels in half indirect metering. This helps facilities meet regulatory requirements and maintain supplier transparency.
Pre-wired connections and a fully assembled module minimize site wiring, reduce commissioning time, and lower the risk of wiring errors. This translates to lower labor costs, faster project delivery, easier QA, and predictable maintenance routines, especially in facilities with frequent metering upgrades or expansions.
Ideal for internal metering in energy distribution boards within industrial plants and utilities, this board supports single-CT or cross-metering setups, integrates with copper busbar systems, and fits standard DIN-rail-style layouts. It is well-suited for projects requiring EN 61439-2 compliance, CE/REACH/RoHS declarations, and IP2XC protection for reliable, compliant metering infrastructure.
