ABB 2CPX033275R9999 Meter Panel - IP2XC
Part Number: 2CPX033275R9999
Quick Summary
ABB 2CPX033275R9999 meter panel is a ready-to-install metering enclosure for internal electrical distribution. Engineers often face wiring complexity and slow deployment times on site, and this unit is designed to streamline that process. It carries IP2XC protection and CE conformity, with RoHS and REACH declarations to simplify compliance in regulated environments. The pre-wired layout follows DSO Requirements, offering 108 DIN space units and a compact 1350 mm x 250 mm x 160 mm footprint to accelerate integration with metering transformers and grid equipment, delivering measurable productivity gains and reduced on-site risk. This combination supports faster project delivery and lower total cost of ownership in utility and industrial installations, while ensuring robust reliability.
Product Information
Extended Description

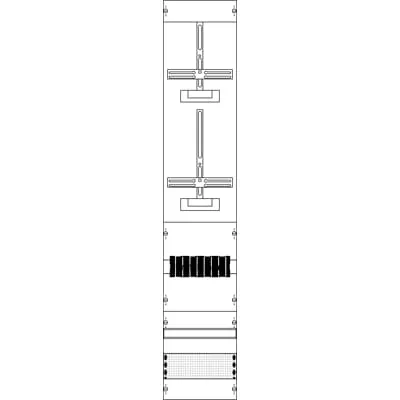

2CPX033275R9999 ABB: Meter panel, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Number of SG spaces 1, Pre-wired according requirements DSO, Note: metering transformer sets to be installed in seperate housing, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
6.962 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
7.24 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4029Z
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Pre-wired per DSO requirements. Benefit: Reduces field wiring time and labor costs during installation, enabling faster commissioning. Application: Meter panels in distribution cabinets and utility substations benefit from quick, reliable integration with metering cross modules. Feature: IP2XC enclosure protection. Benefit: Enhances safety and component longevity in controlled environments, reducing maintenance downtime. Application: Indoor metering deployments with strict access control considerations. Feature: Closed cover with DIN rail compatibility. Benefit: Improves cable management and protects delicate metering electronics while enabling straightforward retrofits and upgrades. Application: Retrofit projects and upgrades in existing control rooms. Feature: 108 DIN place units and 1350 x 250 x 160 mm footprint. Benefit: Maximizes metering capacity without expanding overall footprint, supporting complex metering schemes and future expansion. Application: Industrial facilities needing scalable meters and transformers in a compact form. Feature: 1 meter cabinet and 1 meter panel configuration. Benefit: Simplifies footprint planning and reduces part count, lowering procurement complexity. Application: New installations requiring a single, integrated metering module. Feature: RAL 7035 light grey finish with CE, RoHS, and REACH declarations. Benefit: Aesthetically consistent, compliant enclosures that meet regulatory expectations and reduce documentation overhead. Application: Government and utility projects emphasizing standard-compliant equipment. Feature: EN 61439-1 compliant with 0 A rated current and 415 V max. Benefit: Ensures predictable performance under typical distribution scenarios while safeguarding components from over-voltage exposure. Application: Metering assemblies in low- to medium-voltage networks. Feature: Pre-wired for metering transformer sets; separate housing for transformers. Benefit: Streamlines power metering architecture and minimizes cross-interference risks. Application: Grid metering stations and data centers with internal metering needs. Feature: 1350 mm H x 250 mm W x 160 mm D form factor. Benefit: Balances meter capacity with space constraints in restricted environments. Application: Control rooms and electrical rooms with space limitations. Feature: 1 x Meter Cabinet and 1 x Meter Panel configuration. Benefit: Simplifies procurement and installation logistics by delivering a complete metering solution in a single unit. Application: New build and modernization projects requiring a ready-to-use metering module.
Get a Quick Quote for a ABB 2CPX033275R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033275R9999?
Enquire Now
FAQs
This meter panel is designed for DIN rail mounting (Lower Connection Space with Top Hat rails) and houses full 108 DIN units. Metering transformer sets are installed in a separate housing per ABB guidelines, enabling clean cable management and straightforward integration with grid equipment. The result is a flexible, scalable metering solution that aligns with typical utility and industrial metering architectures.
The unit complies with EN 61439-1 for switchgear and controlgear assemblies and carries IP2XC protection. It also shows EU RoHS compliance with the directive 2011/65/EU and amendment 2015/863, REACH declarations, and CE conformity. WEEE and CMRT classifications are provided, ensuring regulator-facing documentation is readily available for audits.
The IP2XC enclosure rating is appropriate for controlled indoor environments where protection against solid objects is required and access to active parts is controlled. With a closed cover and a light grey RAL 7035 finish, it combines protection with ease of maintenance. For outdoor or harsher environments, additional housing or climate control considerations may be needed.
Installation follows DSO pre-wiring requirements, and ZX340 mounting instructions are recommended to ensure correct mounting and wiring practices. The unit provides a pre-wired configuration to reduce on-site wiring time, with DIN rails for lower connections and a 108 modular width to accommodate metering components efficiently.
Pre-wired meter panels shorten field labor, accelerate commissioning, and reduce human-error risk, delivering faster project delivery and lower installation costs. The integrated enclosure supports long-term reliability with RoHS and REACH-compliant materials, simplifying regulatory maintenance and spares management. Regular checks on the enclosure’s integrity and compliance documentation help sustain performance over time.
