ABB 2CPX033407R9999 CT meter panel - IP2XC protection
Part Number: 2CPX033407R9999
Quick Summary
ABB 2CPX033407R9999 CT meter panel is designed for compact internal power distribution and meter board integration. Engineers often struggle with space constraints and wiring complexity when modernizing control cabinets, making a footprint like this highly desirable. It is compliant with EN 61439-2 and CE declarations, and carries IP2XC protection to suit indoor installations. With a 5-pole configuration, Cu busbars, and a durable RAL 7035 enclosure, this panel reduces wiring errors, speeds up installation, and lowers lifecycle costs—supporting efficient, compliant enclosures & electrical infrastructure for industrial facilities.
Product Information
Extended Description
2CPX033407R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 128 A, Rated current of the assembly of switchgear and controlgear InA 160 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 160 A / 3-pole (10-70qmm), primary wiring L1-L3 Cu-Busbar 30 x 5 und 20 x 5, PE+N Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Note: Incomer connection to other board/module via busbar, connection set for voltage path and current may be required, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
128 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
14.917 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
15.514 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

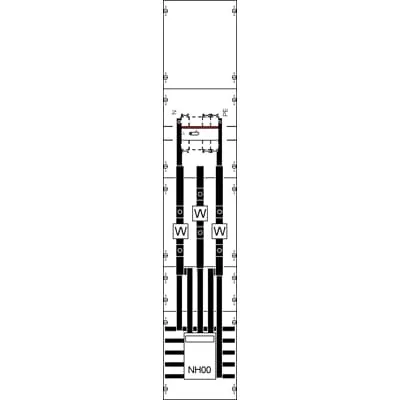

Circuit and distribution diagram KA4034
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled CT meter panel with dimensions 1350 x 250 x 160 mm and 5P, rated 128 A. Business Impact: Reduces field assembly time and minimizes wiring mistakes during panel upgrades. Application: Ideal for internal distribution in control cabinets where space is at a premium. Feature: Cu busbars 12 x 5 mm and a busbar-based lower connection space. Business Impact: Improves current path reliability and enables straightforward expansion to voltage path protection fuses. Application: Suitable for scalable meter boards and modular switchgear layouts. Feature: IP2XC enclosure with closed cover and RAL 7035 light grey finish. Business Impact: Enhances indoor safety, dust resistance, and maintenance friendliness while preserving aesthetics. Application: Indoor electrical infrastructure in production lines and facilities. Feature: Compliance with EN 61439-2 and CE declarations, plus RoHS/REACH conformity. Business Impact: Sharpens regulatory alignment, reduces risk during audits, and supports sustainable manufacturing practices. Application: Required for modern facility approvals and procurement standards in industrial environments. Feature: DIN Place Units 108, net weight ~14.92 kg, and 108 GU footprint. Business Impact: Facilitates precise space planning and predictable handling in logistics and installation planning. Application: Controls cabinet planning and shipment efficiency within enclosures & electrical infrastructure projects.
Get a Quick Quote for a ABB 2CPX033407R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033407R9999?
Enquire Now
FAQs
This meter panel uses Cu busbars sized 12 x 5 mm and supports a 5-pole arrangement with L1-L3 wiring and a TN-S earthing scheme. It includes a lower connection space for busbar integration and a 1350 x 250 x 160 mm footprint, making it compatible with standard switchgear layouts and existing internal distribution boards.
Key specs include a maximum operational voltage of 415 V, a rated current of 128 A, and a 5-pole configuration. The enclosure is IP2XC rated and designed for indoor use, with a closed cover and RAL 7035 surface finish to ensure reliability in controlled environments.
It is ideal for internal distribution in control cabinets and meter assemblies requiring half indirect metering. Its compact footprint and robust busbar system support scalable power distribution in manufacturing lines, automation panels, and utility rooms.
The panel adheres to EN 61439-2, with CE declarations, RoHS compliance, and REACH compliance. It also carries IP2XC protection and ETIM/eClass classifications that support procurement and regulatory audits in industrial settings.
A closed cover design, rapid sealable connections, and durable materials reduce maintenance downtime. RoHS/REACH compliance simplifies disposal and upgrade planning, while Cu busbars and robust enclosure construction minimize long-term repair costs and improve total cost of ownership.
