ABB 2CPX033408R9999 CT meter panel for industry IP2XC
Part Number: 2CPX033408R9999
Quick Summary
CT meter panel is a fully assembled ABB 2CPX033408R9999 unit designed for internal metering in industrial power distribution. Engineers often face installation complexity, space constraints, and wiring errors when configuring meter cabinets; this module streamlines deployment with pre-wired components and a compact footprint. It complies with EN 61439-2 and DIN VDE 0603-2-2, while CE declarations assure regulatory alignment and RoHS/REACH documentation reinforces sustainability. The combination of IP2XC protection, a closed cover, and a robust Cu busbar system delivers safe, scalable metering capability. For buyers seeking faster project realization, predictable performance, and easier maintenance, this enclosure adds measurable business value in both new builds and retrofit programs.
Product Information
Extended Description
2CPX033408R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 218 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch disconnector 250 A / 4-pole, primary wiring L1-L3 Cu-Busbar 30 x 5 und 20 x 5, PE+N Cu-Busbar 20 x 5 mm, Connection N+PE (M8), Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
15.428 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
16.045 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

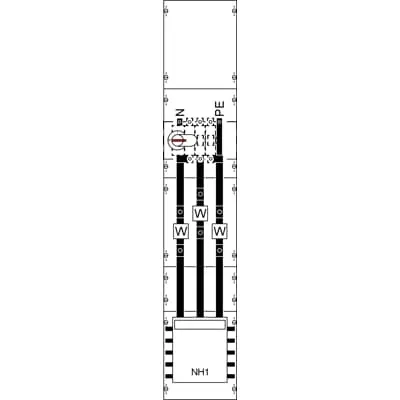

Circuit and distribution diagram KA4035
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled CT meter panel with IP2XC protection and DIN EN 61439-2 compliance → Business Impact: Reduces field wiring errors, speeds installation, and improves safety in meter cabinets → Application: Internal metering in industrial distribution boards and control rooms. Feature: 1350 x 250 x 160 mm footprint and 108 DIN Place Units → Business Impact: Efficient space planning and scalable wiring density to accommodate future metering needs → Application: Compact yet expandable enclosures for mid-size facilities. Feature: Cu busbars 12 x 5 mm, TN-S grounding, 5-pole arrangement → Business Impact: Low impedance connections and reliable fault clearance, enabling consistent performance under load → Application: Primary meter connections and switching within panel assemblies. Feature: Closed cover, quick-seal connections, and dual-color finish (RAL 7035) → Business Impact: Simplifies maintenance, enhances protection against dust and ingress, and preserves aesthetics in operational environments → Application: Customer-facing electrical rooms and data centers requiring tidy installations. Feature: RoHS, REACH, and SCIP declarations → Business Impact: Regulatory compliance and risk reduction for procurement and sustainability reporting → Application: Global supply chains and B2B projects with strict compliance requirements. Feature: Includes fuse switch disconnector NH1/250A, CT mounting pad, and 4-pole switch disconnector → Business Impact: Ready-to-wire configuration minimizes customization and accelerates project timelines → Application: Metering and control circuits in medium-voltage distribution.
Get a Quick Quote for a ABB 2CPX033408R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033408R9999?
Enquire Now
FAQs
Installation begins with securing the enclosure on a stable mounting surface and ensuring clearance for the 1350 mm height. Connect the TN-S earth path to the PE busbar, wire L1-L3 through the copper busbars (12 x 5 mm), and land N on the N+PE copper busbar. Attach the CTs and ensure the fuse switch and switch disconnector are properly rated for 250 A. The closed cover and quick-seal connections simplify securing panels, while the IP2XC rating provides ingress protection during setup.
The panel adheres to DIN EN 61439-2 and DIN VDE 0603-2-2, ensuring compliance for low-voltage distribution assemblies. It is CE marked and RoHS compliant, with REACH declarations in place. The enclosure features IP2XC protection and is suitable for half indirect metering applications, backed by WEEE considerations and SCIP documentation for regulatory traceability.
The unit measures 1350 mm in height, 250 mm in width, and 160 mm in depth, and provides 108 DIN place units for panel mounting. The product net width is 250 mm, with a net height of 1350 mm. With a weight of approximately 15.428 kg, it fits in standard meter rooms while allowing space for copper busbars and additional components.
Yes. The design includes a 5-pole lower connection space with Cu busbars and spaces for voltage path protection fuses, enabling upgrades to the protection scheme as system requirements evolve. The 5P configuration supports NH1/250A devices, and the CT mounting pad with CT rail provides scalable CT integration for expanding metering capabilities without major cabinet modifications.
The pre-assembled module reduces field wiring and commissioning time, lowering labor costs and minimizing wiring errors. A robust IP2XC-rated enclosure reduces ingress-related maintenance, while RoHS/REACH compliance and CE certification simplify procurement. Over a typical project lifecycle, the reliability of Cu busbars and solid enclosure materials translates to lower downtime and predictable maintenance budgeting.
