ABB 2CPX033409R9999 CT Meter Panel - IP2XC Protection
Part Number: 2CPX033409R9999
Quick Summary
ABB 2CPX033409R9999 CT meter panel is a compact distribution solution for panel mounting and CT metering. Engineers often struggle with integration, space constraints, and regulatory compliance across facilities. It delivers IP2XC protection, CE conformity, and RoHS/REACH compliance for safe operation and regulatory peace of mind. Designed for ABB enclosures and modular construction, it supports scalable metering and faster project delivery, reducing wiring risk and total cost of ownership. Its compatibility with within-panel busbar systems, 5-pole setup, and 108 DIN units helps engineers plan layouts more accurately. The assembly is ready for upgrading to voltage path protection fuses and includes pre-wired connections for quick commissioning. This combination supports efficient procurement, smoother field installation, and long-term reliability in industrial environments.
Product Information
Extended Description
2CPX033409R9999 ABB: CT meter panel, fully assembled module, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 218 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Main terminal 1, outgoing connection 150qmm, primary wiring L1-L3 120 qmm, N+PE 120 qmm, Outgoing terminal 5-pole up to 95 qmm, N+PE Connection N+PE 150qmm, Note: Incomer connection to other board/module via busbar, connection set for voltage path and current may be required, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Number of Poles
5P
Number of Meter Cabinets
0
Number of Meter Panels
0
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
CT meter panel
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
38f18a6e-7ab9-4267-b6cd-e1b1ed770f7c Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
16.502 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
17.162 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

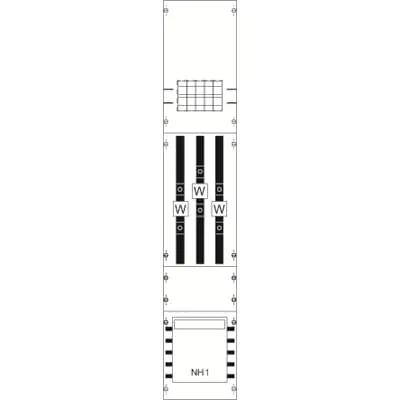

Circuit and distribution diagram KA4036
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Fully assembled CT meter panel with a 5-pole arrangement. Benefit: Reduces integration effort and risk while enabling straightforward commissioning in brownfield and greenfield projects. Application: Ideal for internal distribution boards requiring focused CT metering with robust current paths. Feature: IP2XC degree of protection. Benefit: Improves user safety and enclosure integrity in indoor installations, minimizing dust ingress and incidental contact. Application: Suitable for factory floors and control rooms where environmental exposure is modest. Feature: Color and enclosure finish (RAL 7035, light grey) with closed cover. Benefit: Consistent aesthetics and improved durability in rugged industrial settings. Application: Works with standard ABB enclosure ecosystems and helps standardize plant visuals. Feature: Copper busbar integration (Cu busbars 12 x 5 mm) and 5-pole TN-S configuration. Benefit: Optimized current paths and reliable electrical connections, reducing resistance losses and heat generation. Application: Facilitates scalable metering upgrades and easy cross-connection to other modules. Feature: 108 DIN places and 1350 x 250 x 160 mm dimensions. Benefit: Predictable footprint for space planning and panel layout in tight electrical rooms. Application: Enables accurate cabinet planning and compatibility with DIN rail–based installations. Feature: Documentation and compliance packaging (EN 61439-1, DIN VDE 0603-2-2, CE declarations, RoHS/REACH). Benefit: Simplifies procurement, testing, and regulatory submissions, accelerating project sign-off. Application: Essential for clients in regulated industries and multi-site deployments.
Get a Quick Quote for a ABB 2CPX033409R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033409R9999?
Enquire Now
FAQs
The panel uses a 5-pole arrangement with Cu busbars 12 x 5 mm and a TN-S earth system, designed to fit ABB enclosure families and existing busbar layouts. Its 108 DIN units and 1350 x 250 x 160 mm footprint support straightforward mounting, wiring, and future upgrades, while the pre-configured current transformer mounting pad (170 x 30 x 5 mm) simplifies CT installation and alignment with downstream switchgear.
Rated Operational Voltage is a maximum of 415 V, with a Rated Current of 200 A. It features a 5-pole configuration and a main terminal up to 150 qmm, plus N+PE connections at 150 qmm. The assembly supports CT meter applications with proper connection to the busbar and switchgear, and is designed to meet EN 61439-1 and applicable VDE standards for safe operation.
Yes. The unit conforms to EN 61439-1, DIN VDE 0603-2-2, and CE declarations. It also carries RoHS and REACH compliance, WEEE categorization, and SCIP registration, ensuring regulatory alignment across EU markets and facilitating audits, procurement, and ongoing compliance in regulated industries.
Maintenance focuses on standard enclosure upkeep, periodic inspection of busbar connections, and verifying the integrity of the closed cover. The RoHS/REACH-compliant materials reduce hazardous substance concerns, while the modular, pre-wired design minimizes commissioning time and service disruptions during upgrades or expansion.
ROI comes from faster installation, reduced on-site wiring, and fewer commissioning errors due to pre-assembled modules. The compact, scalable design minimizes space needs and supports future metering upgrades, lowering total cost of ownership over the panel's lifecycle while improving reliability and regulatory compliance in demand-driven industrial environments.
