2CPX033503R9999
Part Number: 2CPX033503R9999
Product Information
Extended Description

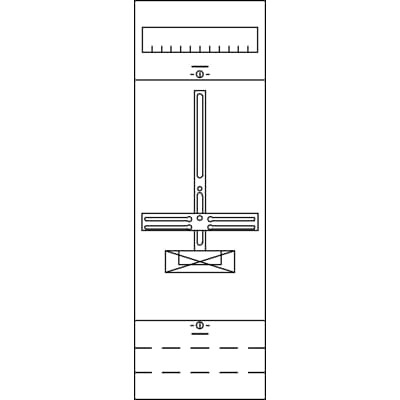

2CPX033503R9999 ABB: Meter panel, suitable for series: U and A and TG...SZ, empty board, with Metering cross, in RAL 7035, dimensions in mm (H x W x D): 750 x 250 x 160, not pre-wired, net side compartment, meter space: with DIN rail, Number of reserve spaces 1, Grid unit 5 GU, Overall height 1, panel width 1, Space units 60, covers out of Plastic, 90 degree press and turn closure, RAL 7035
Rated Current (In)
355 A
Model Number
1-story
Number of Phases
3
Number of Meter Cabinets
0
Number of Meter Panels
1
Number of Rows
0
Number of TSG Panels
0
Design
meter board
Lower Connection Space
with DIN Rails (Top Hat Rails)
Enclosure Type
Meter panel
Enclosure Type of Height
1
Protection Type
None
Plug In Meter Terminal
No
DIN Place Units
60
Meter Boards
1
Module Function
Meter board
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
750 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
2.926 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.04 kg
E-Number (Norway)
2439099
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction ZX133
ETIM 8
EC000068 - Meter board
ETIM 9
EC000068 - Meter board
eClass
V11.0 : 27142417
Object Classification Code
U
