ABB 2CPX033800R9999 Measurement and Metering Board - IP2XC
Part Number: 2CPX033800R9999
Quick Summary
Measurement and Metering Board by ABB enables compact, fully assembled metering modules inside protection panels for industrial plants and utilities. Engineers confronting limited space and complex wiring benefit from a pre-wired, plug-and-play solution that shortens installation time and reduces field errors. The enclosure supports EN 61439-1/2 compliance, CE declarations, and IP2XC protection, delivering safe operation in demanding environments. By offering pre-wired buses, TN-S earthing, and a 5-pole arrangement, the module integrates seamlessly with copper busbars and a single meter cabinet design. This translates to faster commissioning, improved reliability, and lower lifecycle costs for panel builders and end users, while maintaining traceability and regulatory alignment.
Product Information
Extended Description

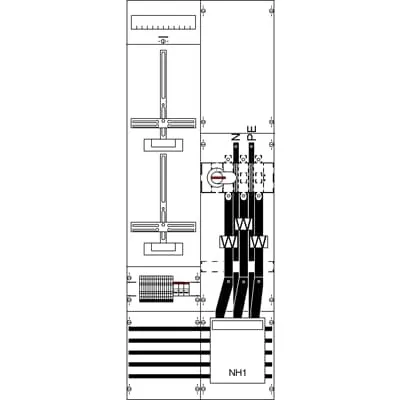

2CPX033800R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 200 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring Cu-Busbar 30 x 5 mm, Accessible to Cu busbar, outgoing: terminals screws to fuse disconnetor and PE+N busbar, Connection N+PE (M8), Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
200 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
21.409 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
22.265 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX133
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4210ML
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: Fully assembled measurement and metering transformer board with a Metering cross for internal use. Benefit: Reduces panel footprint and wiring complexity, enabling faster deployment in utility substations and industrial control rooms. Application: Ideal for integration within enclosure systems where space and accuracy are critical. Feature: IP2XC protection and EN 61439-1/2 compliance. Benefit: Improves operator safety, reliability, and regulatory alignment across utility and industrial ISO standards. Application: Suitable for indoor switchgear rooms and protected outdoor installations with appropriate enclosure housing. Feature: Pre-wired according to DSO requirements, with TN-S earthing and a 5-pole configuration. Benefit: Shortens commissioning time and minimizes field wiring errors, delivering predictable performance and easy fault tracing. Application: Beneficial for grid-scale meter panels and factory automation panels needing standardized layout. Feature: Cu busbar system 12 x 5 mm, 216 DIN place units, and accessible N+PE connections. Benefit: Enhances electrical performance, facilitates maintenance, and supports scalable expansion without rewiring. Application: Fits multi-cabinet layouts and modular meter panels across energy distribution networks. Feature: RoHS, REACH declarations and WEEE compliance. Benefit: Reduces environmental and regulatory risk, simplifying procurement and end-of-life planning. Application: Aligns with European sustainability directives for long-term asset management.
Get a Quick Quote for a ABB 2CPX033800R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033800R9999?
Enquire Now
FAQs
The module features a TN-S earthing arrangement and a Cu busbar system (12x5 mm) with a 5-pole configuration, designed for straightforward mounting and reliable current paths. This integration minimizes voltage drops, simplifies fault isolation, and supports scalable, safe conductor routing within ABP and utility enclosures.
Key specifications include a maximum operational voltage of 415 V, a rated current of 200 A, and a 5-pole enclosure with IP2XC protection. It is designed for internal metering and transformer cross configurations, with pre-wired connections to meet DSO requirements and CU busbar access for dependable distribution bus paths.
Yes. Its IP2XC protection, EN 61439-1/2 compliance, and CE declarations make it appropriate for indoor utility substations and industrial control rooms. The 216 DIN unit footprint and modular meter cabinet design support scalable deployment across multiple sites with consistent performance.
The product adheres to EN 61439-2, carries CE declarations, RoHS (EU Directive 2011/65/EU and 2015/863), and REACH declarations. WEEE classification is 4. Large Equipment, with SCIP registration for Germany, ensuring regulatory compliance across lifecycle stages.
Pre-wired configuration, busbar access, and N+PE connections reduce on-site wiring time and error potential. The design supports rapid commissioning, easier maintenance, and straightforward expansion in multi-panel installations, delivering measurable ROI through reduced labor and downtime.
