ABB 2CPX033804R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX033804R9999
Quick Summary
ABB 2CPX033804R9999 measurement and metering transformer board enables ready-to-wire metering within switchgear assemblies. Engineers rely on compact, integrated solutions to save space and minimize on-site wiring risk. This enclosure addresses common pain points such as bulky installations, inconsistent protections, and time-consuming commissioning. The unit aligns with EN 61439-1/2 and CE declarations while delivering IP2XC protection for indoor, controlled environments. Designed for 5-pole configurations with copper busbars and pre-wired delivery, it speeds installation, reduces risk, and improves traceability across distribution projects. By integrating meter cabinets and panels in a single, standards-compliant module, it supports streamlined procurement, fewer interfaces, and more predictable maintenance schedules for utility-scale and industrial clients.
Product Information
Extended Description
2CPX033804R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring 120 qmm, Accessible to Cu busbar, outgoing: terminals screws to fuse disconnetor and PE+N busbar, Connection N+PE (M8), Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
20.203 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
21.011 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

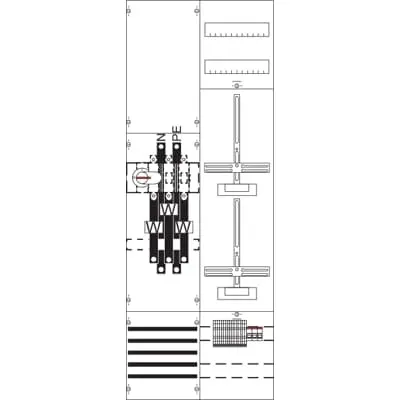

Circuit and distribution diagram KA4208
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature → The ABB 2CPX033804R9999 measurement and metering transformer board arrives as a fully assembled module, pre-wired to DSO requirements with an integrated Metering cross. Business Impact → Field wiring is dramatically simplified, reducing installation time and minimizing misconnections, while preserving clear metering and switchgear separation for safer operation. Application → Designed for internal use in utility and industrial switchgear where compact meter cabinets must fit within constrained footprints and meet EN 61439-2 standards. Feature → Copper busbar system 12 × 5 mm and a five-pole lower connection space provide low-impedance current paths. Business Impact → This arrangement improves fault-clearing performance, reduces voltage drop, and supports reliable CT mounting for accurate metering. Application → Well-suited to meter panels handling up to 222 A InA ratings and 3 low voltage path switches B10/25kA. Feature → Precise mechanical footprint: 1350 mm height, 500 mm width, 160 mm depth, with 216 DIN place units and 24 panel spacings. Business Impact → Customers gain predictable integration into existing enclosures, streamlined procurement, and uniform aesthetics with RAL 7035 light grey finish. Application → Compatible with grid units and standard meter cabinet layouts across European installations. Feature → Compliance and sustainability: RoHS information and REACH declarations, WEEE category, SCIP listing, and CE declaration confirm regulatory alignment. Business Impact → Reduces risk in audits, simplifies supplier qualification, and supports responsible end-of-life management. Application → Essential for European grid projects and B2B procurement where traceability matters. Feature → Safety and maintenance: IP2XC protection and accessible Cu busbar design enable safe inspection, while pre-wired configuration minimizes commissioning time. Business Impact → Enhances operator safety, reduces downtime during changes, and lowers lifecycle costs. Application → Ideal for ongoing modernization projects and new builds requiring reliable, ready-to-install meter cabinets.
Get a Quick Quote for a ABB 2CPX033804R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033804R9999?
Enquire Now
FAQs
The board uses a copper busbar system (12 × 5 mm) and a 5-pole lower connection space, designed to fit standard meter cabinets and 216 DIN place units. Its pre-wired configuration and EN 61439-2 compliance simplify integration with existing switchgear, reducing wiring challenges and interface mismatches during retrofits or new builds.
Key specs include a maximum operational voltage of 415 V, nominal current of 220 A, 5 poles, and IP2XC protection. It supports one meter cabinet and one meter panel, with DSO-ready pre-wiring and a copper busbar arrangement to ensure low impedance paths for reliable CT mounting and metering accuracy.
Yes. The enclosure is IP2XC rated for indoor use, features a closed cover, and comes in RAL 7035 light grey. Its 216 DIN place units and compact footprint are designed for controlled environments typical in industrial and utility switchgear applications.
The unit complies with EN 61439-2, EN 61439-1, and CE declarations. It also supports RoHS and REACH compliance, along with WEEE and SCIP registrations, reflecting regulatory alignment for European grid and industrial projects.
Pre-wired, DS O-ready configuration reduces commissioning time and wiring errors, lowering on-site labor costs. Its robust copper busbars and defined protection paths improve reliability and safety, translating to reduced downtime and predictable lifecycle costs for ongoing modernization or new installations.
