ABB 2CPX033805R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX033805R9999
Quick Summary
Measurement and metering transformer board from ABB enables compact, pre-wired meter cabinets for industrial facilities. Engineers often struggle with wiring complexity, long installation times, and the risk of compliance gaps during expansion. This ABB solution is built to EN 61439-1/2, CE certified, and rated IP2XC for safe indoor operation, ensuring robust protection and regulatory alignment. With a TN-S earthing system, pre-wired configuration, and a 5-pole design, it supports rapid deployment in substations and industrial plants. The enclosure sits within ABB's Enclosures & Electrical Infrastructure portfolio and complements existing switchgear. By integrating measured pathways and busbar connections, it lowers installation labor, accelerates commissioning, and reduces total cost of ownership.
Product Information
Extended Description
2CPX033805R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring Cu-Busbar 30 x 5 mm, Accessible: Cu busbar connection to baying board or additional incomer cabinet on the side. Outgoing: terminals screws to fuse disconnetor and PE+N busbar, Connection N+PE (M8), Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Incomer housing EK230 may be required, busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
20.456 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
21.274 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

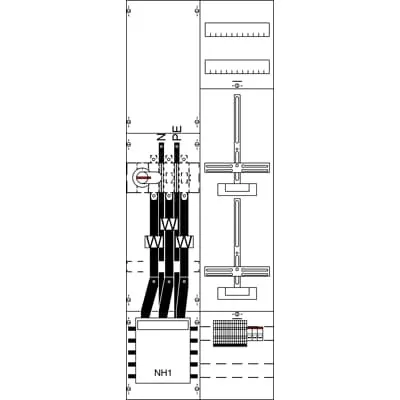

Circuit and distribution diagram KA4209
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Fully assembled measurement and metering transformer board with Metering cross and Cu busbars 12 x 5 mm, 5-pole, TN-S earthing. Business impact: reduces wiring errors and enhances safety, accelerating project timelines in substations and large industrial plants. Application: ideal for internal metering cabinets where space optimization and reliability matter. Pre-wired according to DSO requirements, 216 DIN places, 24 DIN widths. Business impact: minimizes field cabling, shortens commissioning, and lowers on-site fault risk. Application: new installations and retrofit projects seeking rapid compliance and predictable delivery. IP2XC protection with EN 61439-1/2 compliance and rated 415 V / 220 A. Business impact: ensures safe operation, regulatory alignment, and consistent performance under load. Application: indoor control rooms and distribution panels. Accessible Cu busbar connections and 5-pole design support straightforward upgrades and maintenance, reducing downtime. Business impact: easier servicing and future scalability. Application: industrial environments requiring long-term reliability and easy expansion. RoHS, REACH, and WEEE declarations reinforce governance and lifecycle management. Business impact: strengthens procurement compliance and ESG goals. Application: targeted for B2B engineering and procurement workflows.
Get a Quick Quote for a ABB 2CPX033805R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033805R9999?
Enquire Now
FAQs
The 2CPX033805R9999 is designed for indoor metering cabinets and is compatible with standard 5-pole busbar configurations and TN-S earthing. It adheres to EN 61439-1/2 and integrates with existing ABB enclosure ecosystems, enabling straightforward retrofit or new-build deployments.
Key specs include a maximum operational voltage of 415 V AC, rated current of 220 A, 5-pole configuration, and IP2XC protection. It features Cu busbars 12 x 5 mm, 216 DIN places, and pre-wired connections to meet DSO requirements for reliable metering and distribution functionality.
Yes. The unit carries CE declarations of conformity and RoHS/REACH compliance (EU Directive 2011/65/EU and amendments), ensuring regulatory alignment and suitability for European B2B projects in electrical infrastructure.
Pre-wiring per DSO requirements reduces on-site cabling, shortens commissioning, and minimizes wiring errors. Features like the closed cover, quick-sealable connections, and accessible Cu busbar terminals further simplify maintenance and future upgrades.
Ideal for metering cabinets in substations and industrial plants, where compact footprint, robust protection (IP2XC), and EN 61439-2 compliance are critical. It supports efficient metering cross configurations and scalable busbar systems for evolving electrical infrastructure.
