ABB 2CPX033806R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX033806R9999
Quick Summary
Measurement and metering transformer board is a modular enclosure solution enabling integrated metering in medium-voltage systems. Engineers often wrestle with coordinating meters, busbars, and protective devices in tight spaces, which slows project timelines. This ABB panel complies with EN 61439-1/2, carries CE conformity, and features IP2XC protection for safer, compliant installations. Pre-wired configurations and copper busbars reduce field wiring errors and shorten commissioning, while scalable meter panels support growth. Ideal for utility metering, industrial plants, and grid-connected applications, it supports half indirect metering and compact layouts. With a robust RAL 7035 exterior and 216 DIN unit footprint, it integrates with standard electrical infrastructure and minimizes spare parts.
Product Information
Extended Description

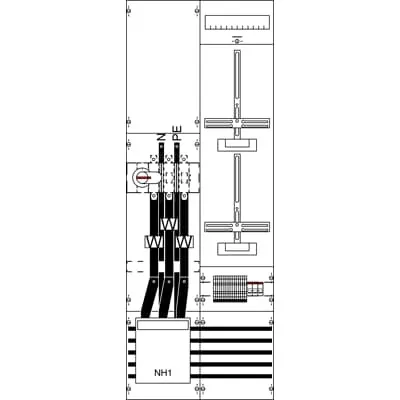

2CPX033806R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 250 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring Cu-Busbar 30 x 5 mm, Accessible to Cu busbar, outgoing: terminals screws to fuse disconnetor and PE+N busbar, Connection N+PE (M8), Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
250 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
21.409 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
22.265 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX133
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4210
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: IP2XC degree of protection provides enhanced ingress protection for interior components. Business Impact: Improves reliability in environments with dust and incidental splashing, reducing maintenance interruptions. Application: Suitable for indoor switchgear housings where metering hardware is exposed to routine access. Feature: EN 61439-1/2 and CE conformity ensure regulatory compliance and safe operation. Business Impact: Streamlines procurement and installation admissibility for utility and industrial projects, lowering risk of non-compliance penalties. Application: Ideal for panel builders delivering certified meter cabinets to end users. Feature: Pre-wired construction per DSO specifications accelerates commissioning. Business Impact: Cuts on-site wiring time and minimizes errors, delivering faster project turnover. Application: Beneficial for retrofit projects and new builds requiring rapid integration of measurement modules. Feature: Copper busbars (12 x 5 mm) and 5-pole arrangement support robust power distribution. Business Impact: Enhances current-carrying capacity and reduces connection resistance, improving overall efficiency. Application: Used in metering cabinets with dedicated transformer meter spaces. Feature: 216 DIN unit footprint and 1350 x 500 x 160 mm dimensions enable scalable layouts. Business Impact: Allows straightforward expansion or reconfiguration to meet future metering loads. Application: Fits standard industrial enclosure footprints and aligns with DIN-placed infrastructure. Feature: Quick sealable connections and accessible busbar terminals simplify maintenance. Business Impact: Reduces service time and downtime during inspection or upgrades. Application: Practical for plants with frequent metering reconfigurations or regulatory audits.
Get a Quick Quote for a ABB 2CPX033806R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033806R9999?
Enquire Now
FAQs
The board is designed for direct integration with standard meter cabinets, featuring a 216 DIN unit footprint, 5-pole configuration, and copper busbars. Its TN-S earthing and pre-wired DSO-ready setup simplify retrofits and new builds, reducing wiring errors and accelerating commissioning.
It complies with EN 61439-1/2, carries CE conformity, and uses IP2XC protection. Additional RoHS and REACH declarations ensure regulatory compliance, with WEEE and SCIP registrations supporting responsible lifecycle management.
Note that if a short circuit current exceeds 25 kA, backup protection is required for the voltage path circuit. Always coordinate with the DSO or utility to specify appropriate upstream protection and perform a fault analysis during design.
Pre-wiring per DSO standards reduces on-site wiring work, minimizes human error, and speeds up commissioning. This is particularly advantageous for utility-scale meter cabinets or multi-panel assemblies in industrial facilities.
Key specs include rated operational voltage up to 415 V, rated current 250 A, IP2XC protection, EN 61439-2 conformity, 216 DIN units, and dimensions 1350 x 500 x 160 mm. These ensure adequate capacity and compliant installation for metering panels.
