ABB 2CPX033813R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX033813R9999
Quick Summary
Metering transformer boards enable compact measurement and metering directly inside switchgear panels. Engineers often struggle with integrating pre-wired enclosures that meet strict protection and safety standards. The ABB device complies with EN 61439-1/2 and carries IP2XC protection, plus CE, RoHS, and REACH declarations for regulatory peace of mind. This combination reduces installation time, simplifies maintenance, and improves reliability while aligning with your enclosure and electrical infrastructure standards. For procurement and integration teams, it translates to faster project kickoff, lower field wiring errors, and safer, standardized installations across facilities.
Product Information
Extended Description
2CPX033813R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 210 A, Rated current of the assembly of switchgear and controlgear InA 210 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole and D01/1-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring Cu 30 x 5 mm, PE+N 95 qmm, Connection N+PE (M8), Note: Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
210 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
27.106 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
28.19 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

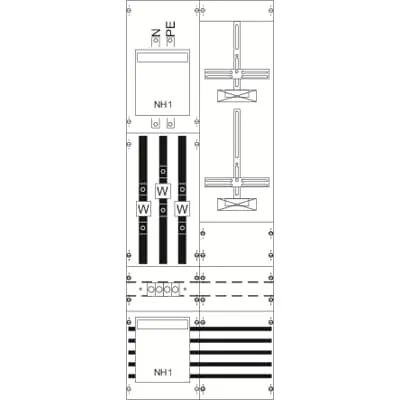

Circuit and distribution diagram KA4203
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature: IP2XC enclosure and robust dimensions provide safe operation in controlled environments while enabling easy integration with existing switchgear. Business Impact: Enhanced protection reduces accidental contact risk and supports standardized layouts across installations. Application: Meter cabinets inside control rooms or indoor facilities benefit from consistent mounting for meters, CTs, and fuses. The result is reliable operation with predictable service life. Feature: Pre-wired according to requirements (DSO) minimizes field assembly time and wiring complexity. Business Impact: Shorter commissioning windows and lower labor costs. Application: New builds and retrofits achieve faster turnover and reduced risk of wiring errors during installation. Feature: Copper busbars 12 x 5 mm and 5-pole configuration optimize current distribution and thermal performance. Business Impact: Lower voltage drop, improved efficiency, and safer current paths. Application: Main bus connections and metering circuits in a single, compact footprint. Feature: 216 DIN places across a 500 mm width and 1350 mm height enable scalable meter panel layouts. Business Impact: Flexible configuration supports future expansion without cabinet rebuilding. Application: Modules designed for 1 meter cabinet and 1 meter panel setups. Feature: Quick sealable connections and closed cover ensure neat, dust-free interiors. Business Impact: Reduces maintenance downtime and protects sensitive metering electronics. Application: Industrial, process, and building automation environments requiring durable, low-maintenance enclosures. Feature: Compliance suite including EN 61439-1/2, CE, RoHS, REACH, WEEE, and SCIP traceability. Business Impact: Regulatory peace of mind and easier audit trail for buyers and installers. Application: Global deployment with strict regulatory demands across European and other markets. Feature: Dimensional and color details RAL 7035, light grey. Business Impact: Aesthetically consistent with modern control rooms and standardized plant aesthetics. Application: Large-scale deployment where visual uniformity matters for safety and maintenance.
