ABB 2CPX033828R9999 Measurement & Metering Board - IP2XC
Part Number: 2CPX033828R9999
Quick Summary
ABB 2CPX033828R9999 Measurement & Metering Board provides a compact, pre-wired meter cabinet solution for indoor power distribution. Engineers often face lengthy on-site wiring, integration errors, and compliance risks that drive project delays and costs. This enclosure aligns with CE conformity and EN 61439-1/2/3 standards, while delivering IP2XC protection for reliable operation in controlled environments. By delivering a ready-to-install module, it reduces commissioning time, minimizes field wiring mistakes, and simplifies documentation for utility and manufacturing deployments. With copper busbars, a 5-pole configuration, and 216 DIN-rail space, it integrates smoothly into existing automation infrastructure and supports DSOs’ metering requirements, delivering measurable business value.
Product Information
Extended Description
2CPX033828R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, current transformer range CT mounting pad with CT rail 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring Cu-Busbar 30 x 5 mm, Accessible to Cu busbar, outgoing: terminals screws to fuse disconnetor and PE+N busbar, Connection N+PE (M8), Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
21.511 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
22.371 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

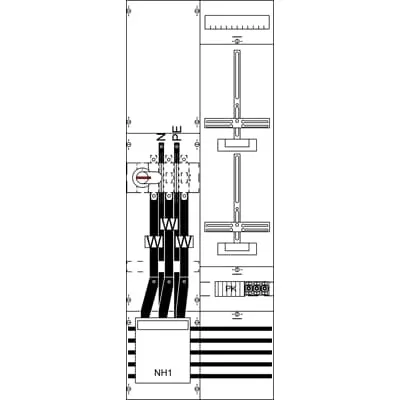

Circuit and distribution diagram KA4272
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Fully assembled measurement and metering transformer board with a pre-wired cross section reduces field wiring and commissioning time. This translates into lower labor costs and fewer punch-list items during handover, especially on large switchgear projects. Applications include indoor meter cabinets in industrial facilities and utility installations where speed and reliability matter. IP2XC protection combined with EN 61439-1/2/3 compliance increases safety, minimizes regulatory risk, and simplifies conformity testing. This is critical for utilities and manufacturing plants that must meet stringent safety and performance standards while maintaining uptime. Pre-wired according to DSO requirements ensures correct integration with upstream devices and protection schemes, which accelerates procurement cycles and reduces commissioning risk for DSOs and metering projects. Copper busbars 12 x 5 mm provide high-conductivity, low-resistance paths for the 5-pole configuration, supporting stable voltage paths and easier fault tracing. The enclosure dimensions 1350 x 500 x 160 mm with 216 DIN spaces enable efficient space management and straightforward integration with existing enclosures and mounting rails. RoHS and REACH compliance, along with WEEE and CMRT declarations, help simplify environmental reporting and regulatory documentation, reducing lifecycle risk and supplier complexity.
Get a Quick Quote for a ABB 2CPX033828R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033828R9999?
Enquire Now
FAQs
Yes. The ABB 2CPX033828R9999 is designed as a 216 DIN-space meter panel with a 1350 x 500 x 160 mm footprint and 5P configuration, making it compatible with standard indoor distribution enclosures and existing copper busbar setups. It also provides IP2XC protection and accessible busbar interfaces to ease retrofits and upgrades.
Key specs include a maximum operational voltage of 415 V, rated current of 220 A, 5 poles, and indoor use with IP2XC protection. The unit is pre-wired for DSOs and includes copper busbars (12 x 5 mm) for reliable current paths in a 216 DIN-space arrangement, making it suitable for mid-scale metering panels.
Absolutely. It is engineered for indoor metering cabinets and distribution panels in both utilities and industrial automation environments, offering CE conformity, EN 61439-1/2/3 compliance, and IP2XC protection to meet industry safety and performance requirements.
The product complies with EN 61439-1/2/3 and CE declarations. It also carries RoHS and REACH information, WEEE categorization, and CMRT documentation for responsible sourcing and regulatory reporting.
The pre-wired, fully assembled design reduces on-site wiring time and commissioning labor, lowering installation costs and risk of wiring errors. Accessible copper busbars and a compact enclosure simplify inspection and maintenance, contributing to lower lifecycle costs and higher uptime.
