ABB Metering Transformer Board 2CPX033874R9999 - IP2XC
Part Number: 2CPX033874R9999
Quick Summary
Metering Transformer Board powers precise measurement inside industrial switchgear for energy management. Engineers seeking reliable, scalable metering solutions will value its fully assembled design and pre-wired configuration. The enclosure supports EN 61439-1/2, CE conformity, and IP2XC protection, enabling safe operation in interior switchgear and controlled environments. This ABB module addresses common pain points like lengthy commissioning, wiring errors, and regulatory risk by delivering a ready-to-install assembly with busbars, fuse bases, and a robust TN-S earthing system. For enclosure and electrical infrastructure projects, it integrates smoothly with DSO cabinets and standard ABB housings, reducing space, time-to-commission, and total cost of ownership.
Product Information
Extended Description

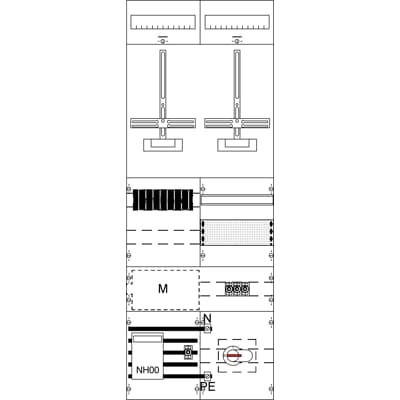

2CPX033874R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 128 A, Rated current of the assembly of switchgear and controlgear InA 160 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole sealable, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer Switch 160 A / 3-pole (10-70qmm), primary wiring L1-L3 70 qmm, N+PE Cu 12 x 5mm, PE+N-terminal 95qmm, Note: metering transformer sets to be installed in seperate housing. For DSO Cottbus cabinets have to be IP54. Incomer housing could be e.g. EK221, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
128 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
17.103 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
17.787 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4223Z
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Fully assembled measurement and metering transformer board reduces on-site wiring and commissioning time by delivering a pre-wired module with a metering cross. This translates to lower labor costs and faster project starts when installed in DSOs or internal cabinets. The design supports reliable operation with 5-pole TN-S earthing, Cu busbars 12 × 5 mm, and a sealable NH00/160A fuse switch, improving safety and fault handling. The enclosure’s IP2XC rating and EN 61439-2 compliance address regulatory risk and ensure safe installation in controlled environments. Quick sealable connections and a pre-wired configuration simplify maintenance and future upgrades, while the 216 DIN place units and dual panel widths help optimize space and future expansion. RoHS, REACH and SCIP compliance provide long-term sustainability and traceability. Compatibility with ABB housings and pre-wired per DSO requirements support faster commissioning and reduced field errors. The system is designed to support future metering additions without major rework, minimizing lifecycle costs and downtime. For Cottbus and similar DSOs, planned IP54 protection in specific cabinets further enhances reliability in demanding environments. Overall, this module aligns with industry best practices for meter panels, delivering measurable improvements in safety, efficiency, and project economics.
Get a Quick Quote for a ABB 2CPX033874R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033874R9999?
Enquire Now
FAQs
The board is designed for internal use in ABB enclosures and standard distribution cabinets. It accommodates 216 DIN place units, 24 modular widths, and supports mounting within ABB housing options such as EK221 or Grid unit 9 GU. For specific DSOs, IP54 adaptations are noted for Cottbus cabinets, ensuring safe operation in targeted environments.
Key compliance covers EN 61439-1/2 for switchgear assemblies, CE conformity, and IP2XC protection. RoHS and REACH declarations are provided, along with SCIP registration. WEEE classification and EU conformity documentation support regulatory requirements for industrial meter panels and related infrastructure.
Rated operational voltage is up to 415 V, with a rated current of 128 A. It features a 5-pole enclosure with TN-S earthing, Cu busbars (12 x 5 mm) for a robust current path, and a fuse base element NH00/160A. The assembly integrates one meter cabinet and one meter panel with two panel widths and two DIN width options.
Yes. The module is pre-wired to DSOs' requirements and designed for internal meter panels in distribution cabinets. For certain DSOs like Cottbus, cabinet protection may require IP54 rating. The solution also supports quick integration with DSOs through pre-wired connections and standardized ABB housing options.
The pre-wired, ready-to-install design reduces commissioning time and field wiring errors. Features such as quick-seal connections, a robust busbar system, and a 5-pole switch enhance reliability and safety. Maintenance is simplified by modular construction, with clear specifications for dimensions, weight, and component layout to plan future upgrades efficiently.
