ABB 2CPX033876R9999 Measurement and metering board - IP2XC
Part Number: 2CPX033876R9999
Quick Summary
ABB 2CPX033876R9999 measurement and metering transformer board is a ready-to-install solution for precise energy metering in industrial cabinets. Too often engineers face long integration times, space constraints, and wiring misconfigurations that delay commissioning. This enclosure supports EN 61439-1/2 and DIN EN 61439-2, carries CE marking, and provides IP2XC protection for safe internal use, ensuring compliance in demanding environments. The pre-wired module aligns with DSO requirements and TN-S earthing, helping teams deploy faster with fewer field connections. By combining compact dimensions with a 216 DIN-space layout, it delivers scalable metering capacity while reducing installation waste and risk, delivering predictable project outcomes and lower total cost of ownership.
Product Information
Extended Description

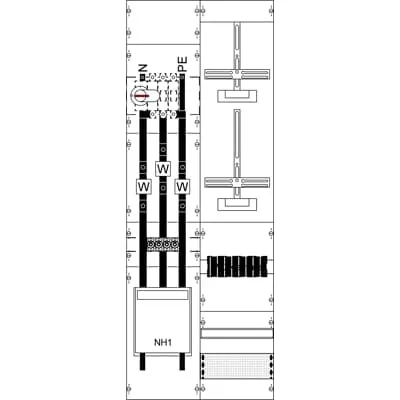

2CPX033876R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 220 A, Rated current of the assembly of switchgear and controlgear InA 222 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of SG spaces 1, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Fuse base element D01/3-pole sealable, parting point before the current transformer Fuse switch disconnector NH1/250 A, current transformer range CT mounting pad with CT rail 170 x 30 x 5 mm, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring 120 qmm, Connection N+PE (M8), Note: metering transformer sets to be installed in seperate housing. For DSO Cottbus cabinets have to be IP54. Incomer housing could be e.g. EK221, Grid unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
220 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
1
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
216
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
23.333 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
24.266 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
Mounting instruction ZX340
Data Sheet, Technical Information (Part 2)
Circuit and distribution diagram KA4225Z
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Fully assembled module with pre-wired connections according to DSO requirements reduces installation time and minimizes wiring errors in field cabinets. This accelerates commissioning and improves safety by eliminating ad-hoc terminations. It is ideally suited for meter cabinets in grid and industrial facilities where fast deployment matters. IP2XC protection plus EN 61439-2 compliance delivers built-in safety and reliability for indoor cabinet environments. The design supports regulatory audits and minimizes protection-related downtime, helping operators meet safety and reliability targets in utility and industrial automation projects. Compact footprint of 500 mm width, 1350 mm height, and 160 mm depth fits standard 216 DIN-unit configurations. This enables seamless integration with EK221, 9 GU grid units, or other modular cabinets, reducing cabinet expansion needs and allowing phased deployment in evolving networks. Five-pole TN-S grounding and dedicated meter and transformer spaces simplify wiring and maintenance. The configuration includes a 1-meter cabinet space and a separate transformer meter space, enabling organized, safe cable routing and easier fault tracing. Global compliance footprint includes RoHS, REACH, WEEE and CMRT; SCIP registration. These declarations support sustainability reporting and regulatory compliance across EU markets, reducing vendor risk and ensuring ongoing accessibility for procurement. Finish and materials emphasize RAL 7035 light grey exterior with plastic covers and quick-sealable connections. The ready-to-install, pre-wired design reduces on-site waste and supports fast, repeatable installations across multi-site projects.
Get a Quick Quote for a ABB 2CPX033876R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033876R9999?
Enquire Now
FAQs
The board is designed around a 216 DIN-unit footprint with 500 mm width, 1350 mm height and 160 mm depth, fitting standard meter cabinets and modular grids such as EK221 or similar grid units. Its pre-wired configuration simplifies retrofit projects and minimizes on-site wiring changes, reducing installation time and risk.
Key certifications include EN 61439-1/2 compliance, DIN EN 61439-2, IP2XC protection, and CE marking. It also aligns with RoHS and REACH declarations, WEEE categorization, and SCIP registration, supporting regulatory compliance and environmental responsibility across EU markets.
Installation leverages pre-wired connections per DSO requirements, with a TN-S grounding scheme and N+PE wiring. It includes a 5-pole switchgear arrangement, a fuse base element D01/3-pole sealable, and clearly defined meter and transformer meter spaces to simplify routing, fault tracing, and ongoing maintenance.
Yes. It is designed for indoor cabinet environments in utility and industrial metering contexts, with DSO-aligned pre-wiring, TN-S earthing, and CE-conformant safety features. The IP2XC protection class enables safe operation within controlled cabinet enclosures common in DSO substations and metering deployments.
The ready-to-install module reduces commissioning time and on-site wiring errors, lowering labor costs and downtime. Its durable enclosure and compliance with RoHS/REACH/WEEE minimize regulatory risk and future upgrade needs, delivering predictable maintenance intervals and lower lifecycle costs in multi-site grid or industrial metering projects.
