ABB 2CPX033958R9999 Meter Panel for ComfortLine A - IP2XC
Part Number: 2CPX033958R9999
Quick Summary
ABB 2CPX033958R9999 Meter Panel provides integrated metering for panel-level power distribution. Wiring complexity and retrofit delays can derail projects requiring accurate measurement in tight timelines. Key certifications include CE conformity, RoHS/REACH compliance, and IP2XC protection, ensuring safety and regulatory alignment. Designed for the ComfortLine meter board system, this unit accelerates installation with a pre-wired metering module, built-in busbar connections, and a TN-S earthing scheme, while offering robust two-meter spaces suitable for modern distribution boards. In addition to core metering capability, it supports scalable expansion and consistent performance across industrial environments, delivering borderless compatibility with ABB accessories and service documentation.
Product Information
Extended Description

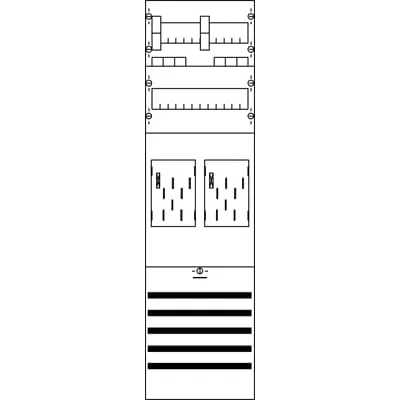

2CPX033958R9999 ABB: Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with BKE-I, degree of protection IP2XC, rated current 63 A, in RAL 7035, dimensions in mm (H x W x D): 900 x 250 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, Stecktechnik, net side compartment, meter space: with busbar, pre-assembled for main switch SH, with-out, system side compartment, meter space: with Main branch terminal, compartment for additional devices of eHZ 150 mm, Number of meter spaces single tariff 2, Grid unit 6 GU, Overall height 2, panel width 1, Space units 72, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Current (In)
63 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
2
Number of Meter Panels
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter panel
Enclosure Type of Height
2
Cover Style
Closed
DIN Place Units
72
Meter Boards
1
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
True - contains substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
900 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
6.396 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.652 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction meter panel | Mounting instruction BKE-I
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Pre-wired metering module with TN-S earthing and 5P design. Business Impact: Reduces field wiring complexity and installation time, lowering labor costs and commissioning risk. Application: Ideal for ComfortLine A/AD series panels where quick integration of metering is required and main switch SH is pre-arranged. Feature: IP2XC enclosure protection with RAL 7035 light-grey finish. Business Impact: Enhances protection in non-hazardous spaces while maintaining clear visibility and weather resistance in standard electrical rooms. Application: Use in commercial and light industrial distribution boards needing robust enclosure standards. Feature: Two meter spaces within a 900 x 250 x 160 mm cabinet and 72 DIN place units. Business Impact: Maximizes metering capacity without enlarging the footprint, enabling scalable installations and future expansion. Application: Fits mid-size switchgear with reserved meter cabling zones and busbar access. Feature: Busbar lower connection space and Stecktechnik / pre-wired metering module. Business Impact: Improves reliability of connections and simplifies upgrade paths, reducing retrofit downtime. Application: Suitable for grid cabinets requiring secure, quick-seal connections and modular expansion. Feature: Compliance and declarations (CE, RoHS, REACH, WEEE). Business Impact: Lower regulatory risk and streamlined disposal planning, supporting sustainable end-of-life management. Application: Required for EU-based projects and customers with strict supplier compliance requirements. Feature: ComfortLine meter board system compatibility and documented mounting instructions. Business Impact: Accelerates procurement and install planning with proven ABB methodologies. Application: Certified for seamless integration with ComfortLine infrastructures and ABB BKE-I mounting guidance.
Get a Quick Quote for a ABB 2CPX033958R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033958R9999?
Enquire Now
FAQs
The panel ships with a pre-wired metering module and TN-S earthing, designed to drop into a ComfortLine A/AD assembly. Begin by verifying the two meter spaces and ensuring the upper section is clear for the busbar connection. Use Stecktechnik connections for quick sealing and follow ABB mounting instructions to connect the main switch SH as pre-wired. This minimizes field wiring and commissioning time while maintaining safe, compliant operation.
This meter panel is designed with a pre-wired main switch SH and Stecktechnik interfaces, simplifying integration with compatible ABB switchgear. Check that your enclosure accommodates 900 x 250 x 160 mm dimensions and a 63 A rated current with a 5P configuration. Ensure TN-S earthing is used, and confirm the ComfortLine A/AD system interfaces and mounting guidelines in the BKE-I documentation.
Key specs include 63 A rated current, 5 poles, 2 meter spaces, 72 DIN place units, IP2XC protection, and overall dimensions of 900 x 250 x 160 mm. The enclosure is RAL 7035 light grey, with a closed cover. It is RoHS/REACH compliant and CE-declared, supporting two metering spaces and a busbar lower connection space for streamlined wiring.
The panel carries CE conformity and RoHS/REACH declarations, with REACH information and dates, and WEEE categorization for large equipment. It adheres to EU directives and ABB’s own conformity statements. This combination reduces regulatory risk for EU projects and supports safe disposal and material traceability across end-of-life scenarios.
Installation time savings from pre-wired metering and Stecktechnik connections translate to lower labor costs and faster commissioning. The durable IP2XC enclosure and RoHS/REACH compliance help minimize downtime and regulatory risk, while the two-meter-space design allows future metering expansion without a cabinet replacement. Over the system’s life, this yields predictable maintenance and improved distribution reliability.
