2CPX033963R9999
Part Number: 2CPX033963R9999
Product Information
Extended Description

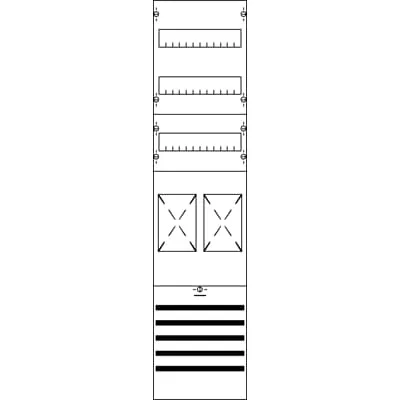

2CPX033963R9999 ABB: Meter panel, suitable for series: U and A and TG...SZ, empty board, with BKE-I, in RAL 7035, dimensions in mm (H x W x D): 1050 x 250 x 160, not pre-wired, net side compartment, meter space: with busbar, pre-assembled for main switch SH, Number of reserve spaces 2, Grid unit 7 GU, Overall height 3, panel width 1, Space units 84, covers out of Plastic, 90 degree press and turn closure, RAL 7035
Model Number
eHZ
Number of Poles
5P
Number of Phases
3
Number of Meter Cabinets
0
Number of Meter Panels
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter panel
Enclosure Type of Height
3
Protection Type
None
Accessories Available
Yes
DIN Place Units
84
Meter Boards
1
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
4a470e1b-35dd-4091-9872-d6f78a3a62dd Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
5.41 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
5.626 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction meter panel | Mounting instruction Cat-cable
Data Sheet, Technical Information
2CPC000377C0101
ETIM 8
EC000068 - Meter board
ETIM 9
EC000068 - Meter board
eClass
V11.0 : 27142417
Object Classification Code
U
