ABB 2CPX033966R9999 Meter Panel - IP2XC, ComfortLine
Part Number: 2CPX033966R9999
Quick Summary
ABB 2CPX033966R9999 Meter Panel is a pre-assembled meter cabinet designed for 63 A circuits in industrial and commercial electrical distribution. When space is tight or project timelines press, a fully wired metering module reduces on-site wiring and accelerates commissioning, while the compact 900 x 250 x 160 mm footprint simplifies layout planning. This panel carries CE, RoHS, and REACH certifications and IP2XC protection, ensuring safe operation in challenging environments. ComfortLine compatibility with A and AD variants delivers scalable metering capacity, straightforward maintenance, and OEM-level reliability. For engineers and procurement teams, the combination of compliance, install efficiency, and predictable performance lowers total cost of ownership and enhances uptime.
Product Information
Extended Description

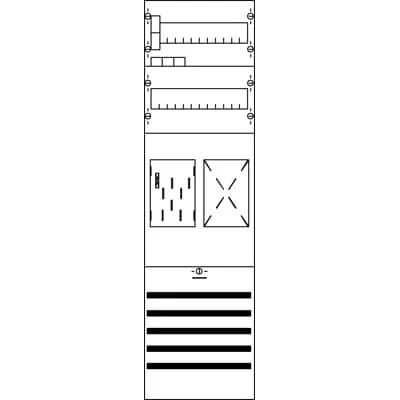

2CPX033966R9999 ABB: Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with BKE-I, degree of protection IP2XC, rated current 63 A, in RAL 7035, dimensions in mm (H x W x D): 900 x 250 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, Stecktechnik, net side compartment, meter space: with busbar, pre-assembled for main switch SH, with-out, system side compartment, meter space: with Main branch terminal, compartment for additional devices of eHZ 150 mm, Number of meter spaces single tariff 1, Number of reserve spaces 1, Grid unit 6 GU, Overall height 2, panel width 1, Space units 72, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Current (In)
63 A
Model Number
eHZ
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter panel
Enclosure Type of Height
2
Cover Style
Closed
DIN Place Units
72
Meter Boards
1
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity ComfortLine Meter board system A
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240916
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
900 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
5.532 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
5.753 kg
Declaration of Conformity - CE
EU Declaration of Conformity ComfortLine Meter board system A
Instructions and Manuals
Mounting instruction meter panel | Mounting instruction BKE-I
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Pre-wired metering module enables rapid commissioning. Benefit: Reduces field wiring time and error-prone connections, cutting installation costs and helping projects stay on schedule. Application: Ideal for new builds or retrofits in manufacturing and facilities where quick metering integration is critical. Feature: IP2XC enclosure protection. Benefit: Provides reliable operation in damp or dusty environments, improving long-term reliability and uptime. Application: Suitable for factory floors, utility rooms, and exterior-adjacent installations where environmental protection matters. Feature: ComfortLine compatibility with A and AD variants. Benefit: Scales with downstream metering needs, enabling future expansion without replacing panels. Application: Flexible platform for multi-stage projects or evolving energy metering requirements in data centers and process plants. Feature: 900 x 250 x 160 mm compact footprint with 72 DIN units. Benefit: Maximizes usable space while delivering ample meter capacity, simplifying room planning and panel rack layouts. Application: Retrofit projects and new builds aiming for standardized control rooms and electrical cabinets. Feature: 5-pole TN-S earthing and busbar lower connection space. Benefit: Ensures robust, safe terminations and straightforward wiring continuity, reducing installation risk. Application: Main distribution feeds and metering with reliable earth continuity for compliant electrical systems. Feature: RoHS, REACH, and CE declarations, WEEE compliance. Benefit: Regulatory certainty and sustainable design, reducing risk during audits and supplier qualification. Application: Procurement quality programs and maintenance planning in regulated industries.
Get a Quick Quote for a ABB 2CPX033966R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX033966R9999?
Enquire Now
FAQs
Yes. The meter panel is designed for ComfortLine A and ComfortLine AD series, with pre-wired metering modules and a 900 x 250 x 160 mm footprint that aligns with standard mounting layouts, enabling seamless integration into existing installations.
Key specs include a rated current of 63 A, 5 poles (5P), 1 meter cabinet, 1 meter panel, IP2XC protection, and 72 DIN place units. The panel is TN-S grounded with a lower connection space that includes a bus bar, suitable for main switch pre-assembly.
With IP2XC protection and a robust ComfortLine build, it is well-suited for industrial environments, manufacturing floors, utility rooms, and controlled areas where dust or moisture exposure is a consideration and reliable meter deployment is required.
The panel comes with CE conformity, RoHS compliance, and REACH declarations, plus WEEE categorization. It also includes a EU Declaration of Conformity for the ComfortLine meter board system, supporting regulatory audits and supplier qualification.
Pre-wired metering reduces installation time and field wiring errors, while the modular ComfortLine design supports future expansion. These factors translate to lower labor costs, faster commissioning, easier maintenance, and improved uptime, delivering a favorable ROI over the panel’s lifecycle.
