ABB 2CPX034012R9999 Meter Panel - IP2XC Enclosure
Part Number: 2CPX034012R9999
Quick Summary
ABB 2CPX034012R9999 Meter Panel is a modular enclosure for metering cabinets in industrial facilities. Many projects struggle with space, wiring clearances, and compliance when mounting meters. It is designed to EN 61439-1, carries CE declarations, and features IP2XC protection for indoor, non-washdown environments. Built around a single meter cabinet with room for future expansion via compatible accessories, this panel helps utilities and manufacturers reduce installation time and lifecycle costs while maintaining safety and reliability.
Product Information
Extended Description

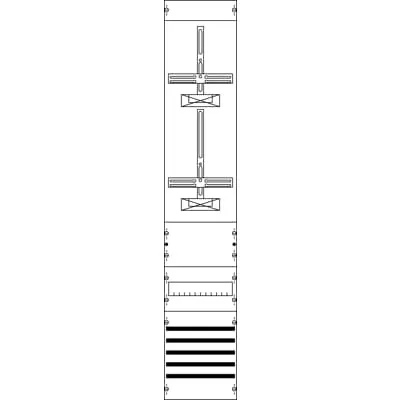

2CPX034012R9999 ABB: Meter panel, empty board, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, Rated operational voltage 415V AC 50/60 Hz, rated current 0 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, Note: Busbar terminals should be ordered seperately, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
0 A
Model Number
2-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
1
Design
complete panel measuring panel
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Meter panel
Enclosure Type of Height
5
Plug In Meter Terminal
No
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
108
Meter Boards
1
Meter Control Devices
1
Module Function
Measuring field
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
6.981 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
7.28 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Instructions and Manuals
2CPC115550M5601 | Mounting instruction ZX133
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Feature: Rated Operational Voltage up to 415 V. Benefit: Enables safe and compliant operation with common 3-phase industrial power systems, reducing mid-project panel changes. Application: 415 V AC distribution in manufacturing, utilities, and building infrastructure. | Feature: IP2XC protection. Benefit: Provides indoor protection for metering components, improving reliability and operator safety. Application: Indoor meter rooms and control panels in factories and campuses. | Feature: EN 61439-1 compliance and CE declarations. Benefit: Ensures performance, safety, and regulatory compliance, facilitating audits and procurement. Application: Projects requiring EU conformity for metering enclosures. | Feature: DIN Place Units 108. Benefit: High modularity for adding meters and accessories, simplifying future upgrades. Application: Scalable metering networks and expansion without rework. | Feature: Lower Connection Space with Bus Bar 5-pole. Benefit: Streamlines wiring and reduces cross-connection complexity. Application: Busbar-driven connections for 5-pole metering configurations. | Feature: Finish and enclosure type (RAL 7035, closed cover). Benefit: Consistent facility aesthetics and durable indoor protection. Application: Indoor electrical infrastructure in industrial settings, campuses, and utilities.
Get a Quick Quote for a ABB 2CPX034012R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034012R9999?
Enquire Now
FAQs
The panel is designed for 415 V AC, three-phase electrical distribution. It supports standard European power infrastructure and provides a ready platform for metering components. Its interior layout accommodates a single meter cabinet and a busbar-based connection, simplifying integration into existing 3-phase networks without rework.
IP2XC protection provides indoor-rated safeguarding for the meter cross and internal components, protecting against access by objects and ensuring safer operation in non-washdown indoor environments. This makes it ideal for indoor meter rooms, electrical closets, and plant control spaces where cleanliness and safety are priorities.
Yes, the meter panel is designed for half indirect metering configurations. It includes one meter board, one meter cabinet, and one meter control device, with busbar terminals to be ordered separately. The modular DIN span (108 units) supports scalable metering layouts and future upgrades without major rewiring.
The panel complies with EN 61439-1 and carries CE declarations. It aligns with RoHS and REACH requirements, and is categorized for WEEE with reference to large equipment. This combination supports regulatory compliance, audits, and safe integration into EU-based projects.
The closed, maintenance-friendly enclosure, standard DIN spacing (108 units), and busbar-based lower connections reduce wiring complexity and installation time. CE and EN 61439-1 compliance simplify approvals, while modular expandability lowers lifecycle costs by enabling future upgrades without replacing the entire panel.
