ABB 2CPX034031R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX034031R9999
Quick Summary
Metering Transformer Board from ABB enables compact measurement and metering in switchgear assemblies for utilities and industrial plants. It addresses space constraints and wiring complexity by delivering a fully assembled, pre-wired solution that reduces on-site cabling tasks. It aligns with EN 61439-1/2 and CE requirements, provides IP2XC protection for indoor use, and supports robust metering applications. Beyond compliance, the unit delivers business value by speeding deployment, improving accuracy, and reducing field wiring errors across meter rooms and control panels. Designed for indoor installation with a 5-pole design and 108 DIN units, it provides scalable metering capacity for evolving metering strategies. With its pre-wired configuration, the product supports rapid integration into existing busbar systems and minimizes commissioning time.
Product Information
Extended Description
2CPX034031R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: DIN VDE 0603-2-2, EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 63 A, Rated current of the assembly of switchgear and controlgear InA 75 A, in RAL 7035, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-C-S, 5-pole, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, Note: E DIN VDE 0603-2-2, Grid unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
63 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
1
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
5
Cover Style
Closed
DIN Place Units
108
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
12
Product Net Width
250 mm
Product Net Height
1350 mm
Product Net Depth / Length
160 mm
Section Width
1
Product Net Weight
11.653 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
12.119 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

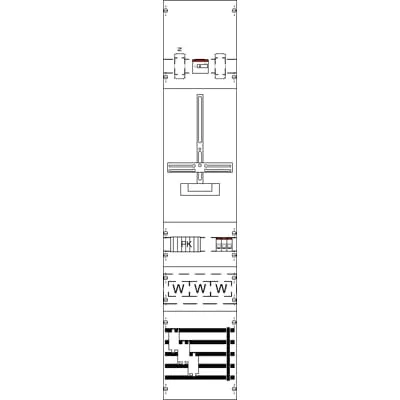

Circuit and distribution diagram KA4306
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Feature → Business Impact → Application: Fully assembled measurement and metering transformer board with a pre-wired Metering cross eliminates most field wiring work, trimming commissioning time and reducing human error on site. This leads to reliable, repeatable metering performance from day one. Application: ideal for indoor meter cabinets, distribution boards, and switchgear where fast deployment and accuracy are critical. Feature → Business Impact → Application: IP2XC-rated enclosure with closed cover and 5-pole busbar design delivers rugged protection against dust and accidental contact. Benefit: preserves insulation integrity and reduces maintenance checks in busy plant environments. Application: suitable for indoor meter panels and compact switchgear installations where reliability and safety are paramount. Feature → Business Impact → Application: EN 61439-1/2 compliance, CE declarations, RoHS/REACH adherence, WEEE categorization. Benefit: ensures procurement alignment with regulatory requirements, reduces risk of non-conformant equipment, and simplifies approvals. Application: preferred for utility and industrial projects with strict compliance milestones, including VDE testing and environmental directives. Feature → Business Impact → Application: Rated operational voltage up to 415 V, rated current 63 A, InA 75 A, and 5-pole, 1-meter cabinet with pre-configured switch gear. Benefit: supports standard medium-voltage metering needs, allows smooth integration with existing CTs and MCCBs, increases fault tolerance. Application: meter boards in control panels for buildings and process industries. Feature → Business Impact → Application: DIN placement 108, width 250 mm, height 1350 mm, depth 160 mm, weight 11.653 kg; uses Cu busbars 12x5 mm, RAL 7035 color. Benefit: predictable footprint, robust heat dissipation, and easy mechanical mounting in existing racks. Application: retrofit and new builds needing a standardized, pre-wired meter panel.
