ABB 2CPX034032R9999 Metering Transformer Board - IP2XC
Part Number: 2CPX034032R9999
Quick Summary
ABB 2CPX034032R9999 Measurement and metering transformer board enables compact, compliant metering for utilities and industrial installs. Engineers frequently battle space constraints, wiring complexity, and compliance gaps when integrating meter panels into switchgear. It meets EN 61439-1/2, CE conformity, and IP2XC protection, with RoHS and REACH declarations to streamline procurement and installation. As a ready-to-wire module pre-wired to DSO requirements, it reduces field wiring time, speeds commissioning, and improves reliability. Its compatibility with standard enclosures and Cu busbars supports scalable solutions, whether upgrading existing sites or deploying new energy-management cabinets. The result is safer, more maintainable metering infrastructure that meets stringent regulatory demands while driving overall project cost efficiencies.
Product Information
Extended Description
2CPX034032R9999 ABB: Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, degree of protection IP2XC, applicable standards: EN 61439-1, EN 61439-2, Rated operational voltage 415V AC 50/60 Hz, rated current 100 A, Rated current of the assembly of switchgear and controlgear InA 100 A, in RAL 7035, dimensions in mm (H x W x D): 1050 x 500 x 160, Earthing system TN-C-S, 5-pole, Number of transformer meter spaces 1, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, current transformer range Mounting plate for Single-CT for threading the cable through, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 50 qmm, N+PE 2 Connections N+PE 95qmm, Grid unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, Quick sealable connection, RAL 7035
Rated Operational Voltage
Maximum 415 V
Rated Current (In)
100 A
Model Number
1-story
Number of Poles
5P
Number of Meter Cabinets
1
Number of Meter Panels
1
Number of Panel Widths
2
Number of Rows
0
Number of TSG Panels
0
Lower Connection Space
with Bus Bar 5 - pole
Enclosure Type
Measurement and metering transformer board
Enclosure Type of Height
3
Accessories Available
Yes
Cover Style
Closed
DIN Place Units
168
RAL Number
RAL 7035 - Light Grey
Color
Light grey
RoHS Information
EU Declaration of Conformity Meter panels for half indirect metering
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
470a6054-a40e-45a8-9d8d-a2de7c52ae53 Germany (DE)
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Business
Degree of Protection
IP2XC
Width in Number of Modular Spacings
24
Product Net Width
500 mm
Product Net Height
1050 mm
Product Net Depth / Length
160 mm
Section Width
2
Product Net Weight
15.909 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
16.545 kg
Declaration of Conformity - CE
EU Declaration of Conformity Meter panels for half indirect metering
Data Sheet, Technical Information (Part 2)

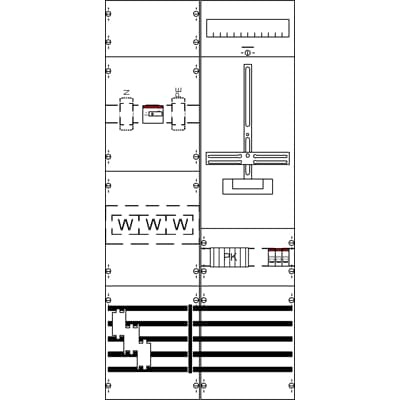

Circuit and distribution diagram KA4311
ETIM 8
EC000263 - Meter panel
ETIM 9
EC000263 - Meter panel
eClass
V11.0 : 27142419
Object Classification Code
U
Standards
DIN EN 61439-2
Fully assembled measurement and metering transformer board saves substantial wiring and assembly time in meter cabinets, enabling faster deployment and fewer field errors. The business impact is lower labor costs and improved first-time-right commissioning, especially in utilities and industrial energy-management projects where reliability is critical. Application: meter cabinets and switchgear housings requiring compact, pre-wired metering modules with robust busbar distribution. IP2XC protection enhances inside-enclosure safety and reduces environmental ingress risks, delivering safer installations and fewer service interruptions. Application: indoor electrical infrastructure in industrial plants and utility substations. The Cu busbars 12 x 5 mm and a 5-pole arrangement support stable current distribution, minimizing voltage drop and thermal rise in dense assemblies. This addresses common objections about load capacity and expansion potential in evolving installations. Application: scalable meter cabinets with room for future upgrades. Pre-wired to DSO requirements accelerates site testing and commissioning, reducing project timelines and rework. RoHS and REACH compliance, plus CE declarations, simplify procurement across supplier ecosystems. Application: procurement efficiency and regulatory alignment in international projects. 168 DIN place units, RAL 7035 light grey finish, and a closed cover design offer durable, maintenance-friendly operation in busy installations. Application: retrofit and new-build meter panels that demand durable aesthetics and long service life.
Get a Quick Quote for a ABB 2CPX034032R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX034032R9999?
Enquire Now
FAQs
This measurement and metering transformer board is designed for internal use in meter cabinets, complying with EN 61439-1/2 and CE standards. It ships pre-wired to DSO requirements and fits standard enclosures with Cu busbars, enabling quick integration into utility and industrial switchgear.
IP2XC provides interior protection against solid ingress and indirect contact, enhancing safety inside enclosed meter cabinets. For indoor industrial or utility environments, this reduces downtime due to dust or incidental moisture while maintaining reliable metering circuit integrity.
Key specs include 415 V maximum operational voltage, 100 A rated current, 5 poles, and a 1050x500x160 mm footprint. The board uses Cu busbars 12x5 mm and N+PE wiring up to 95 qmm, with 168 DIN spaces to support structured, scalable metering layouts.
Yes. The unit is pre-wired to DSO requirements, with RoHS compliance under EU Directive 2011/65/EU and amendment 2015/863, plus REACH declarations. It also carries CE conformity and a WEEE classification, simplifying global procurement and regulatory alignment.
With a compact 1050 mm height, 500 mm width, 160 mm depth and 24 modular widths, it fits tight layouts while delivering 3- or 5-pole configurations. The design includes closed covers, 168 DIN units, and a robust Cu busbar system, easing retrofits and new builds alike.
